System

CPU

(Optional)

RK3188: Quad core, Cortex A9 1.6Hz

RK3288: Quad core, Cortex A17, 1.8GHz

RK3399: Dual-core A72+quad-core A53,2.0G

Ann rabbit score test

RK3188: 28000+

RK3288: 52000+

RK3399: 80000+

RAM

(Optional)

1GB\2GB\4GB

Memory

(Optional)

8GB\16GB\32GB

System

(Optional)

Android4.4/Android 5.1.1/Android6.0/Android7.0

Touch Screen

(Optional)

8"tablet: 5-Point capacitive touch

Other Size: 10-Point capacitive touch

Display

Panel size

(Optional)

8”/10”.1/11.6”/14”/15.6”/17.3”/18.5”/21.5”/24”/27”/32”/42”/43”/55”/65”/84”

Screen

Industrial LCD panel

Resolution

(Optional)

8" & 10.1": 1280*800/11.6" & 18.5": 1366*768

Other Size : 1920*1080 /up to Ultra HD 4K 3840*2160

Contrast

1000:1/3000:1

Brightness

250cd/m2 ~ 350cd/m2 depends the size

Screen ratio

16:9

viewing angle

85/85/85/85(L/R/U/D)

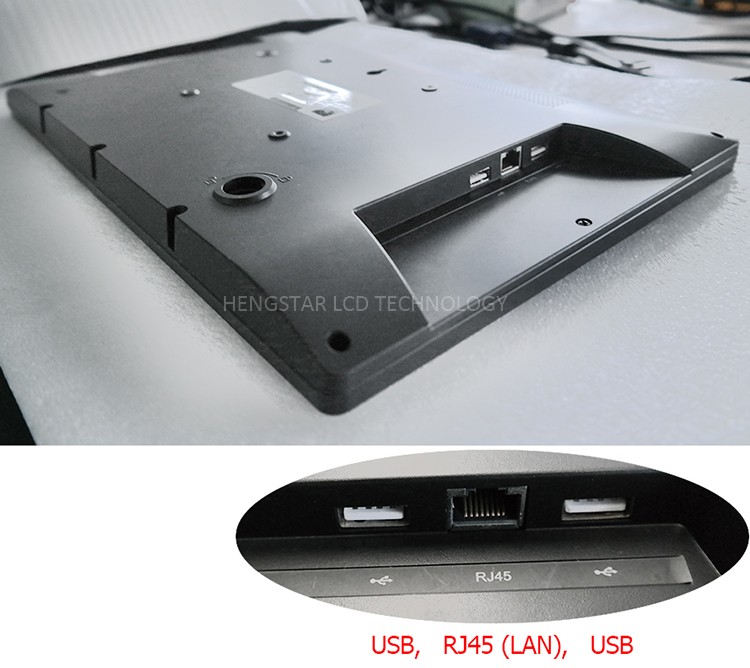

LAN

RJ45, 10-100M self adaptive

Network

WiFi

802.11b/g/n

Bluetooth

Support BT4.0

3G

3G USB dongle(External)

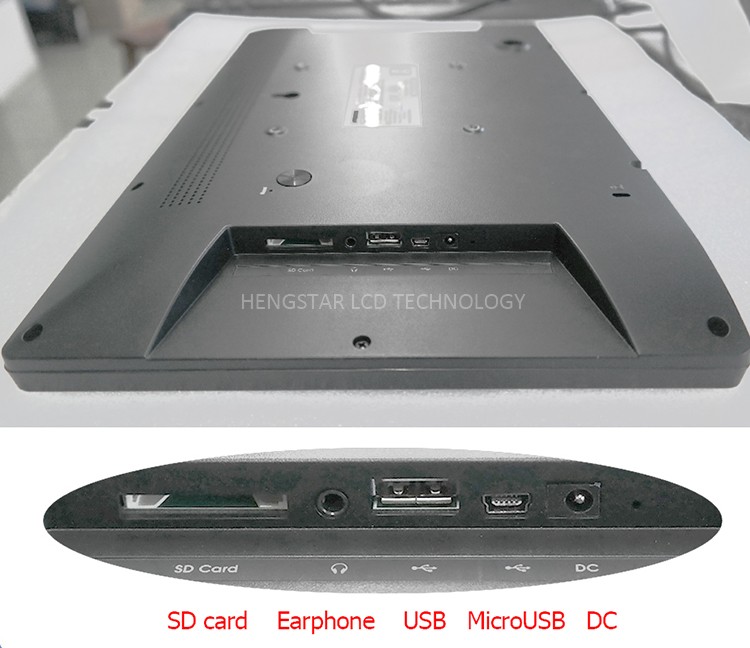

Interface

SD card

Max.128GB

Mini USB

USB OTG

USB Host

USB Host 2.0

Power Jack

DC power input

Full HD output

Optional for 8"/10.1"/11.6"/15.6"/18.5"/ 21.5"/43"/55"

Earphone

3.5mm stereo output

Media playback

Video formats

MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc., up to 1080p

Audio formats

MP3/WMA/AAC etc.

Photo formats

Jpeg, jpg

Others

Speaker

2*3W

Camera

2.0M/P front camera/5.0M/P front camera is optional for 10.1"

OSD language

English and multi language OSD operation

Software

MSN/Skype/Facebook/Twitter/Youtube/E-mail/Google play store etc.

ROOT

Root Privilege access enabled

Language

Multi-language

Working temp

0℃ ~ 50℃

Power battery

Build-in battery is optional for 10.1" 11.6"

External battery is optional for other sizes

Certificates

CE / KCC / FCC / RoHS

Users Manual /USB OTG Cable

Accessories

Power Cord, Power Adapter

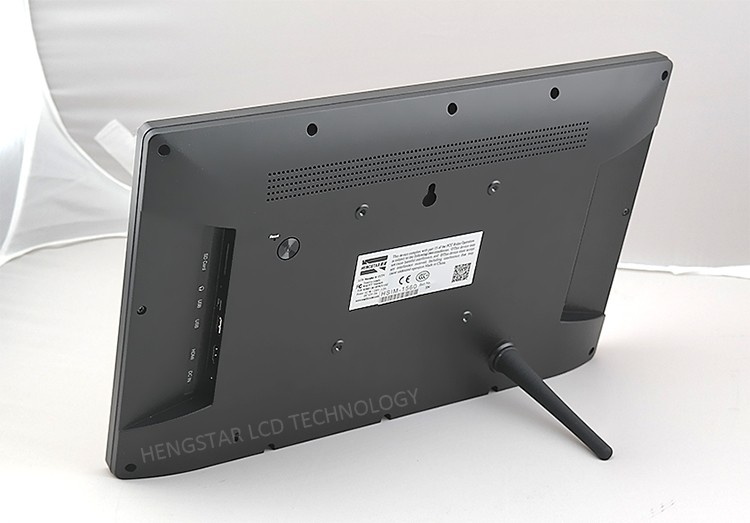

,Wall-mount Bracket, Desktop Rod

Optioanl
Functions

POE: 10.1" 11.6" standard, other sizes customization
NFC, RFID swiping card (built in / external)
3G/4G network
4K resolution 3840*2160 (only support 15.6" 27" 43" 55" we recommend 15.6" hot-sale)
GPS navigation

Optional
Customization
Services

Software Customizations
To boot images
To shows required LOGO on start up animation
To reconfigure the memory as required
To supply various firmware service

Hardware:Customization
Plastic case for all sizes;metal case standard for 14” and 17”, other size customization.
Open frame design for flush mounting method
Black standard, white color customization
Label: required LOGO onto tablets
