16 Wheels Manual Movie Film Car Trailer Mover Camera Dolly with Seat

Brief introduction

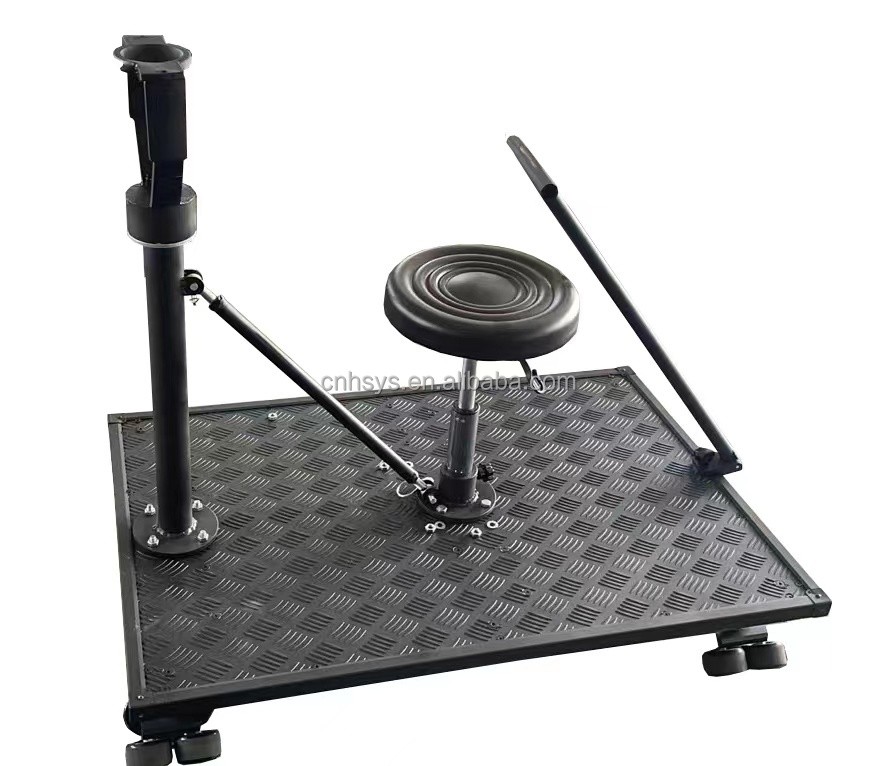

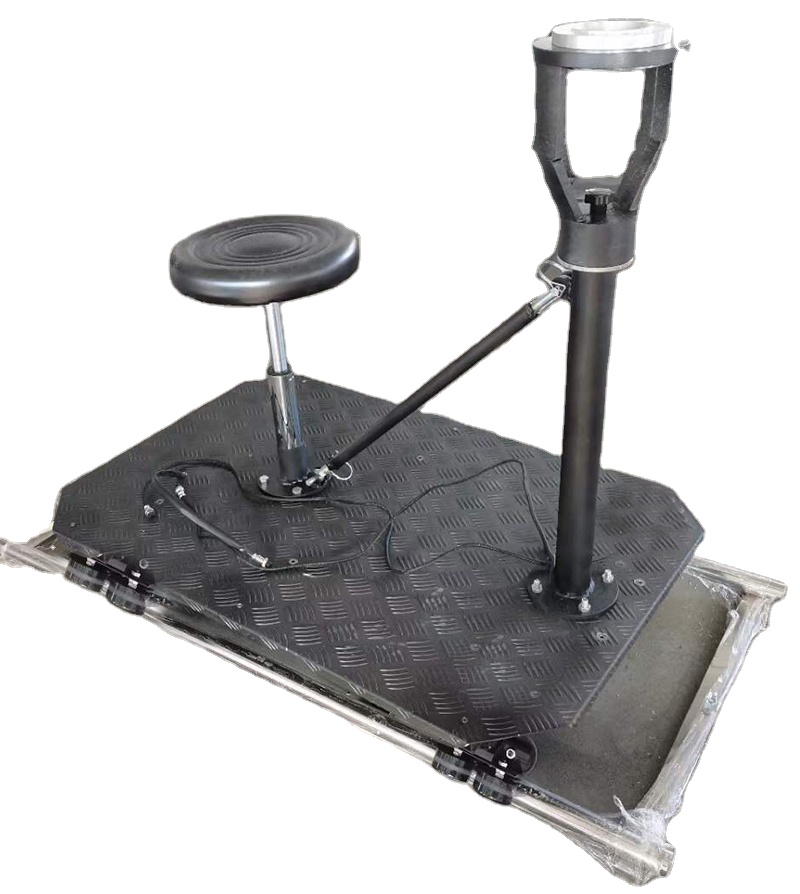

This is a camera crane jib dolly car used for film shooting.

It equips with a seat and a camera bowl for camera dutch head. Also it has a trailer to pull the dolly car.

Material:  aluminum alloy

Number of wheels: 16pcs (32/48 are optional)

Surface: anti slippery processed

Puller: Equipped with 1 puller

Bowl diameter: 100mm (75mm/150mm for option)

Parallel Wheels distance: 620mm applicable for standard rails

Dolly car payload: 300kgs

Camera bowl:                                                   Seat for cameraman

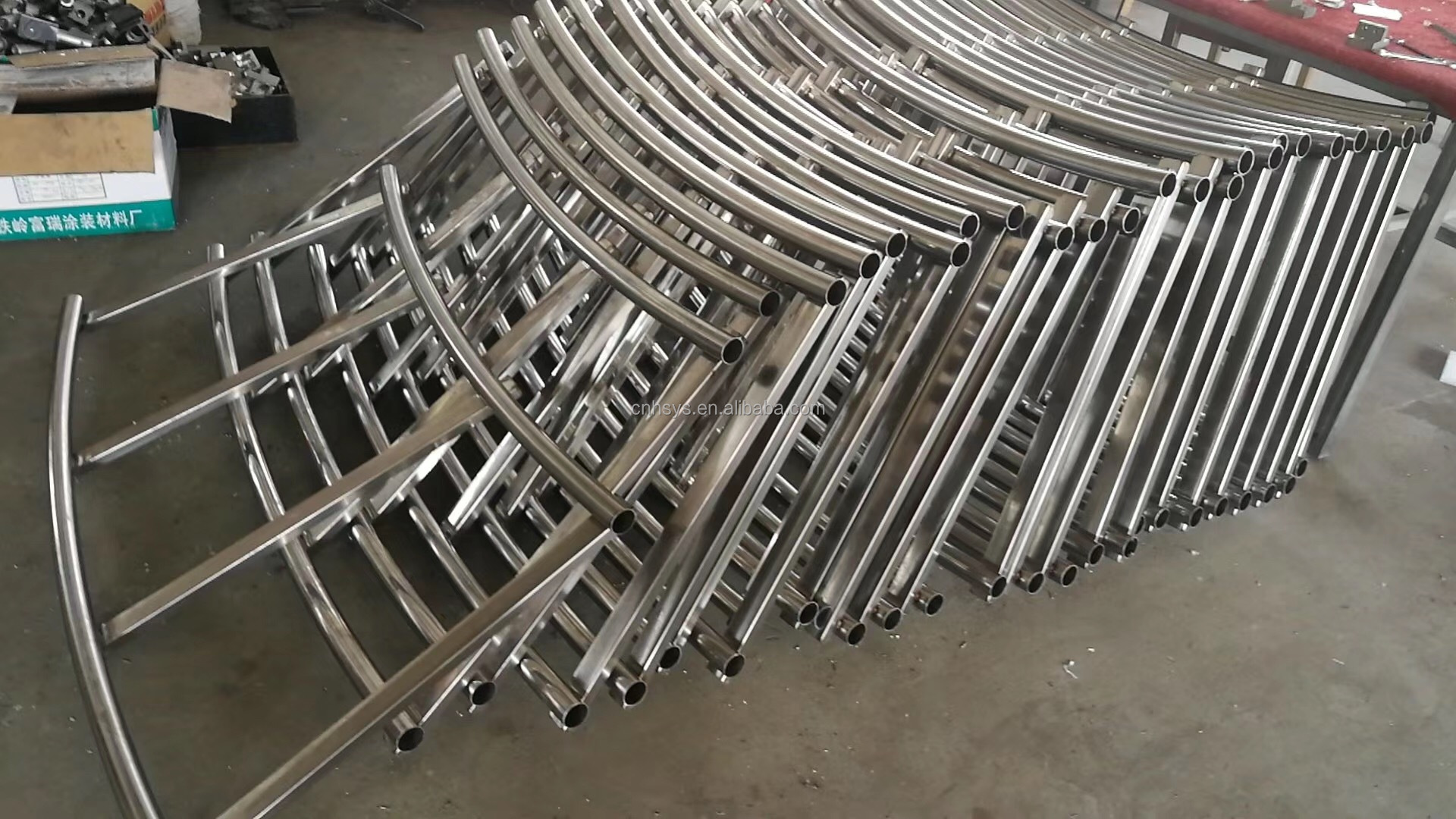

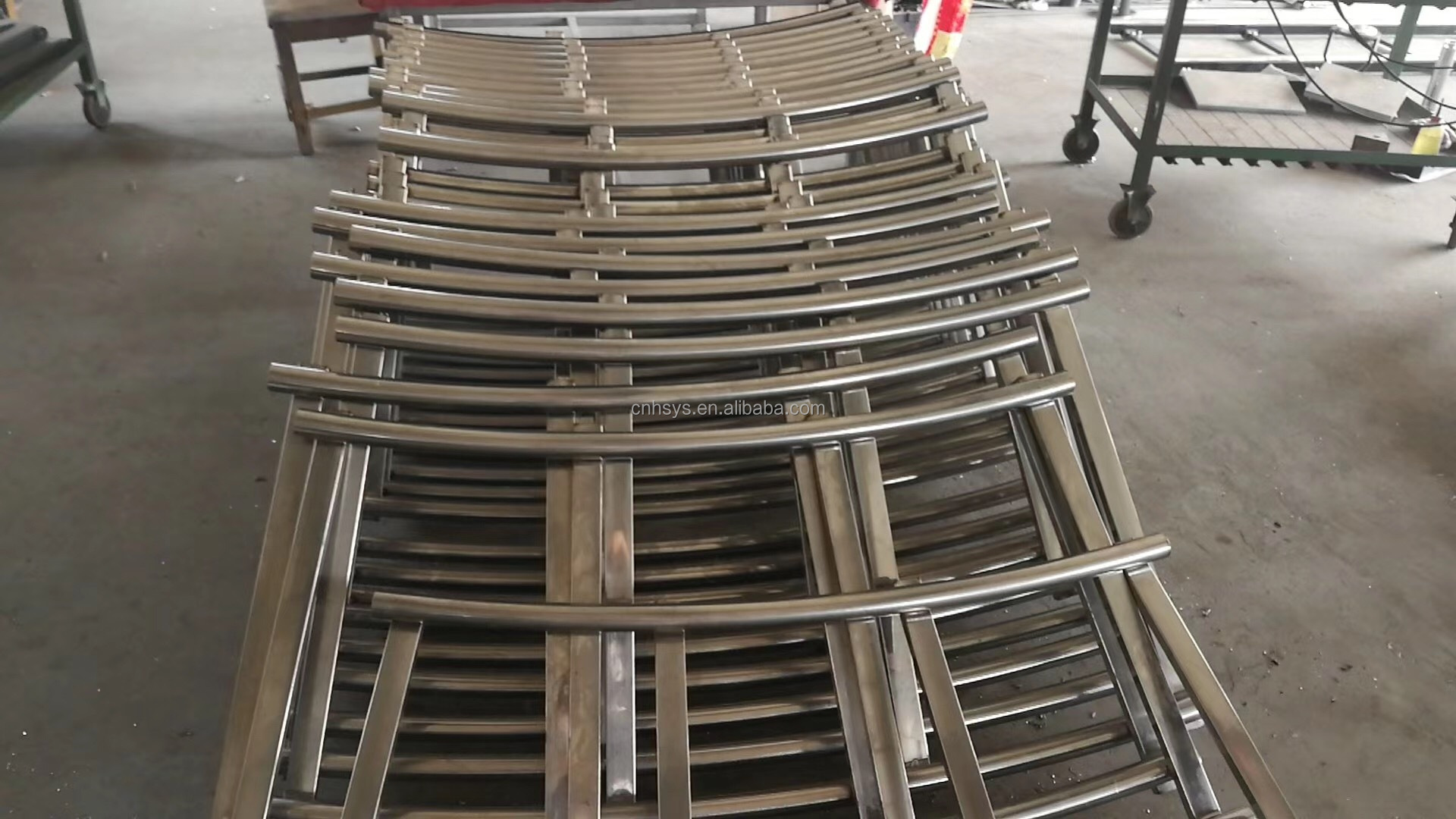

Optional white steel dolly tracks:

we have dolly tracks for the dolly car.

Payload:

Light dolly rail: 300kgs

Heavy duty dolly rail: 600kgs

Length:

Light dolly rail (straight and curved): 1.5 meters

Heavy dolly rail: straight 2 meters   curved: 2.3 meters

Distance between guides: 620mm for both types.

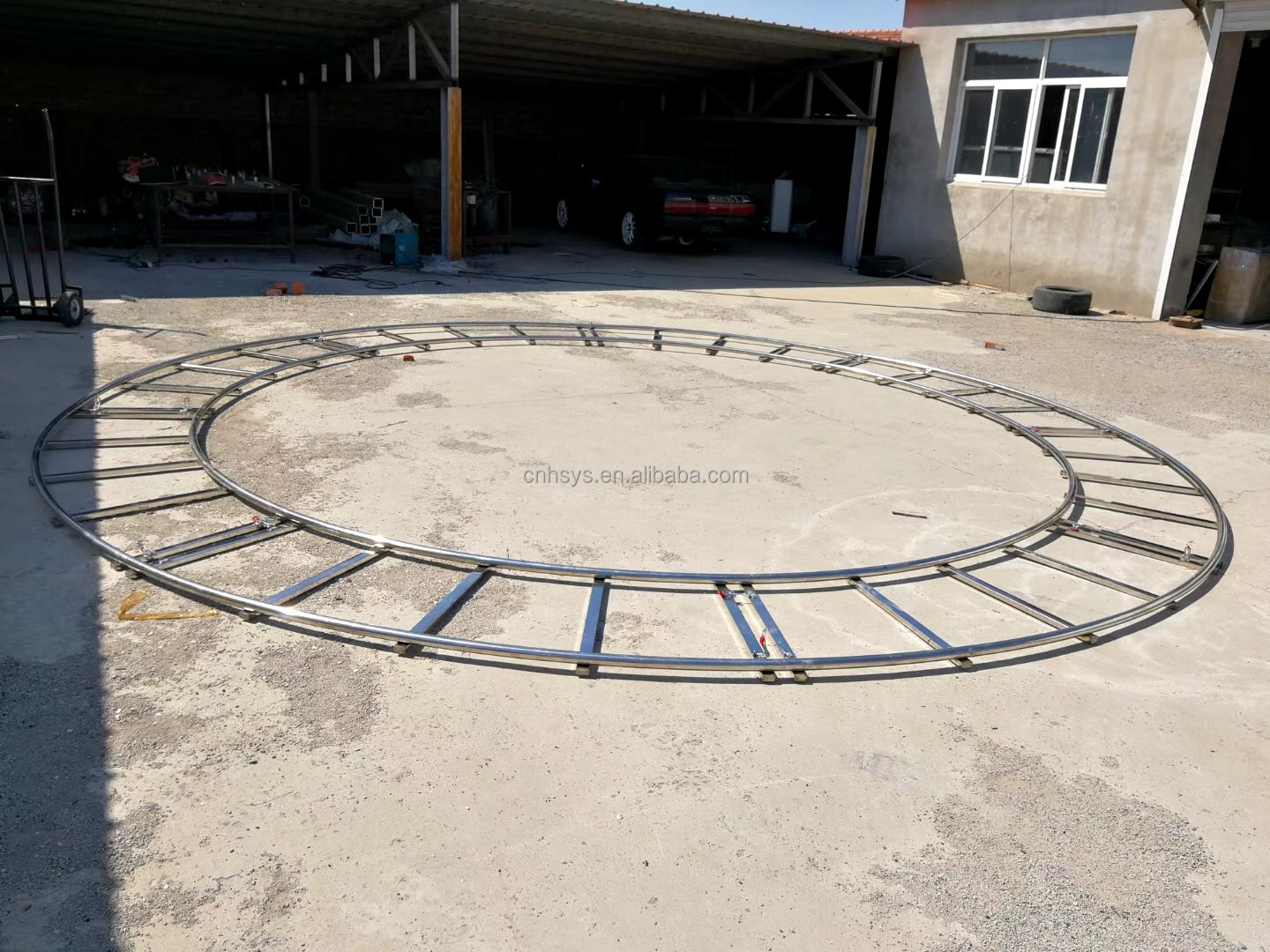

This circle is made up from 16 pcs curved rail

Diameter: 6 meters

Light rails (above)  click for more details

 Heavy duty rails (above) click for more details
