Specification :
|
Camera |
|||||
|
Image sensor |
1/2.8", progressive scan, 5.0 megapixel, CMOS |
||||
|
Lens |
1.4mm/F2.0 |
||||
|
DORI Distance |
Lens |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|
1.4mm |
31.5 |
12.6 |
6.3 |
3.2 |
|
|
Angle of View |
360° |
||||
|
Shutter |
Auto/Manual, shutter time: 1~1/100000 s |
||||
|
Minimum Illumination |
Colour: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR |
||||
|
Day/Night |
IR-cut filter for day & night function |
||||
|
S/N |
>55dB |
||||
|
IR Range |
UP to 10m (33ft) |
||||
|
wavelength |
850nm |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
Defog |
Digital Defog |
||||
|
WDR |
120dB |
||||
|
Video |
|||||
|
Compression |
Ultra 265, H.265, H.264, MJPEG |
||||
|
H.264 code profile |
Baseline profile, Main Profile, High Profile |
||||
|
Frame Rate |
Main Stream: 5MP (2592*1944): Max.30fps; Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||
|
Video Bit Rate |
128 Kbps~16 Mbps |
||||
|
OSD |
Up to 8 OSDs |
||||
|
ROI |
Up to 8 areas |
||||
|
Privacy Mask |
Up to 4 areas |
||||
|
Motion Detection |
Up to 4 areas |
||||

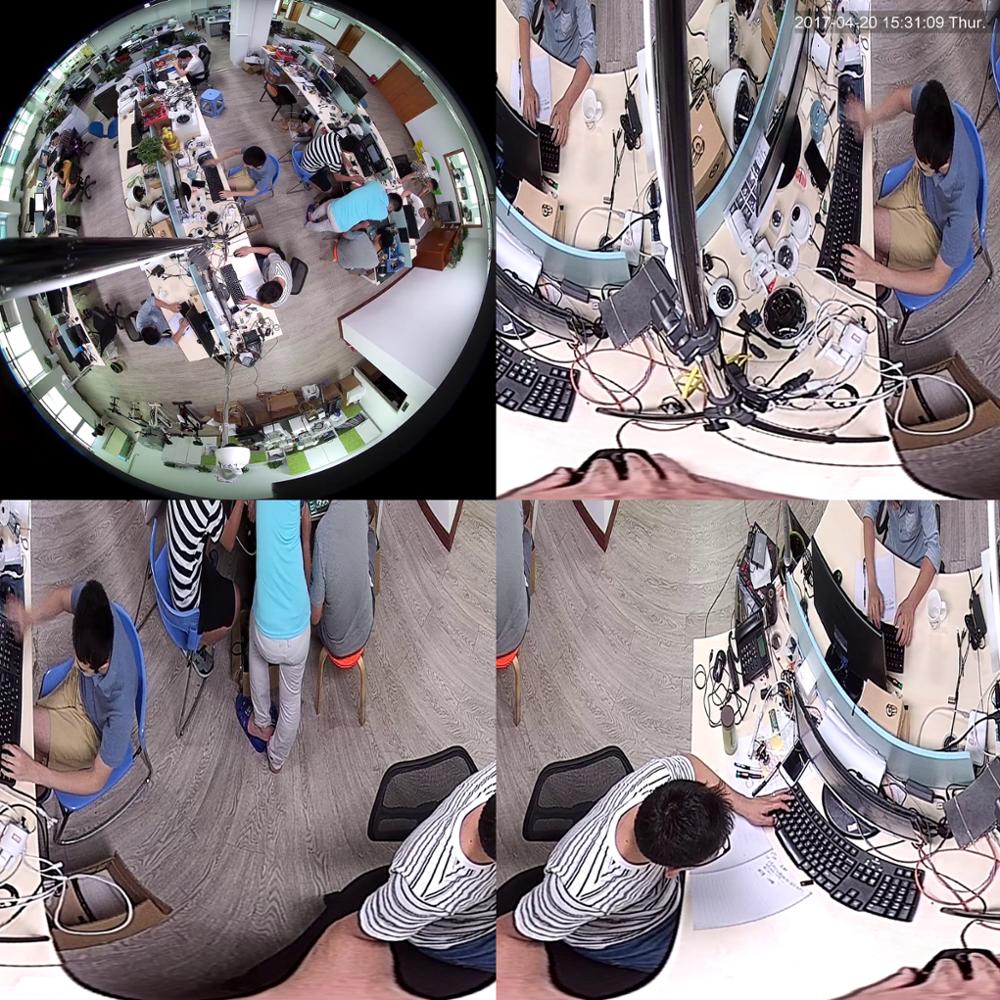

Round viewing performance :

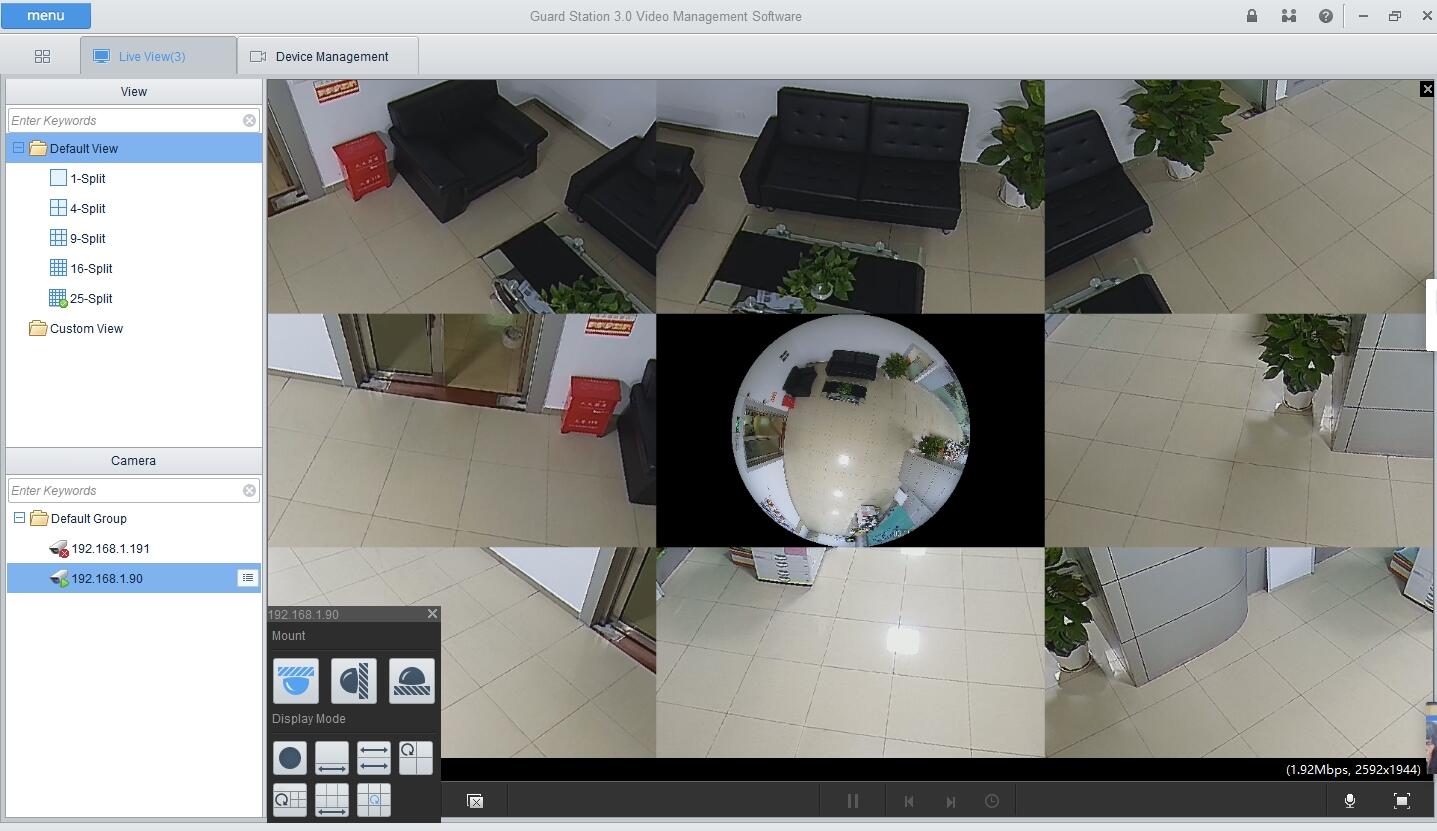

Image split :
Payment terms :

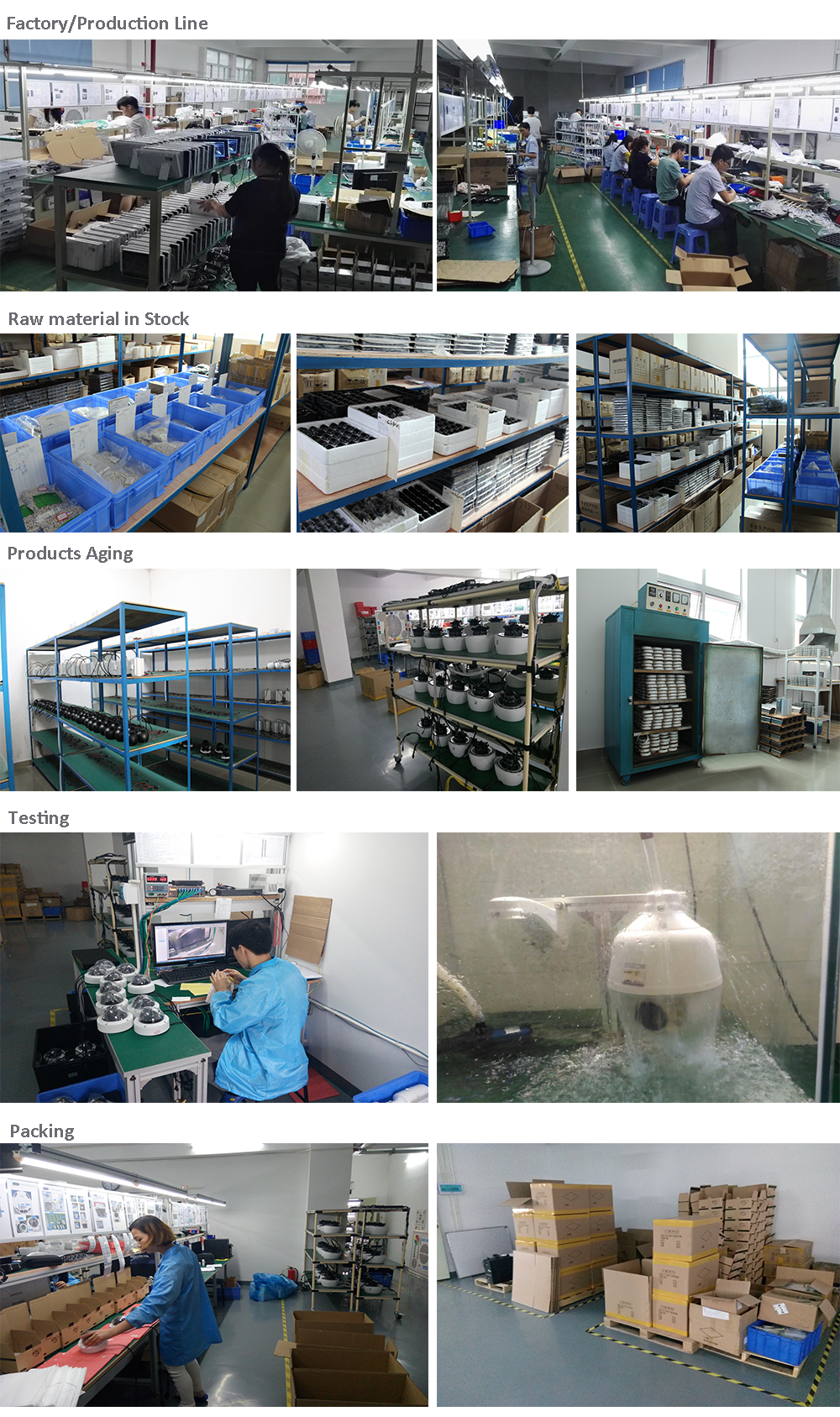

Unicon Vision Technology Co.,Ltd. is a professional HD security products provider. Experienced team devote all of our energy to developing better security products for society and customers.
Unicon Vision specialized in Multi-sensor Stitching Panoramic IP Camera, 4 lens 180 degree, 5/8 lens 360 degree Panoramic in high resolution 10MP, 15MP, 24MP and 100MP.
The latest technology we combined 8 lens Panoramic camera with 30X optical zoom PTZ camera to build the world first Vehicle Pano & PTZ System.
