Products Description

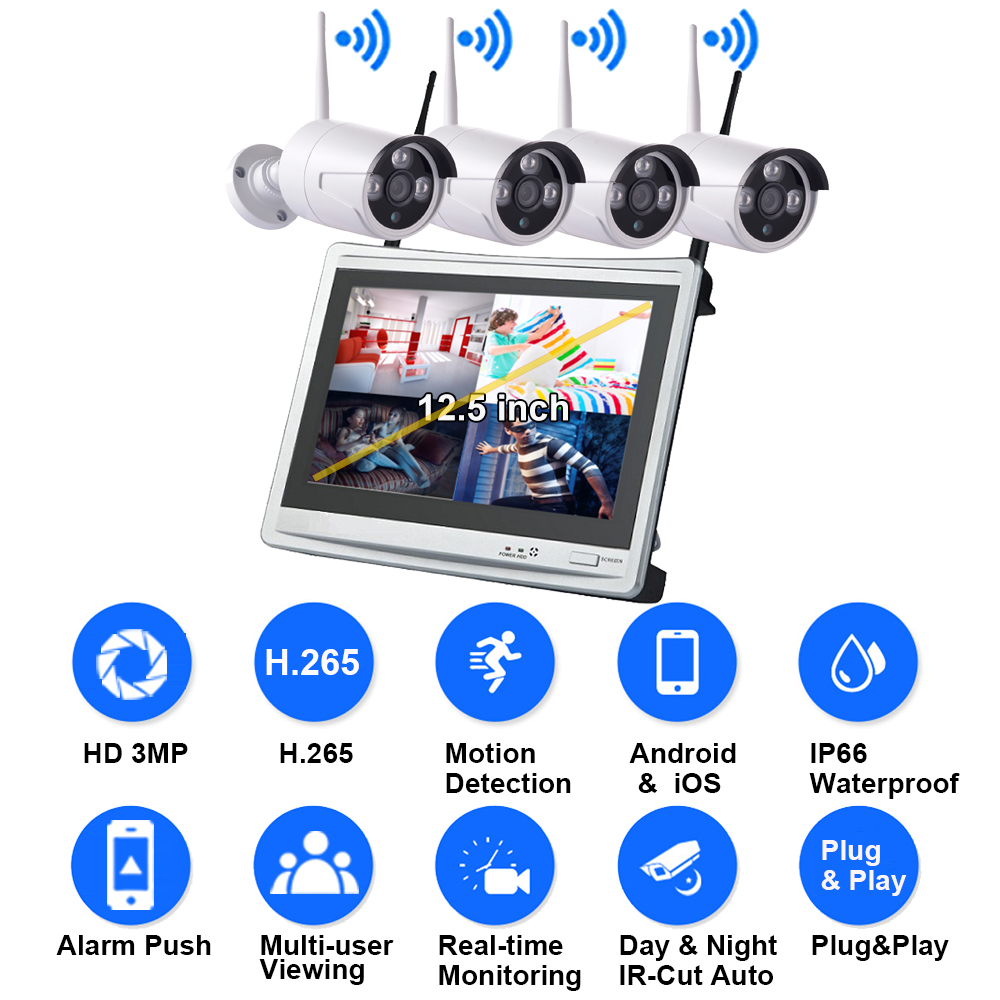

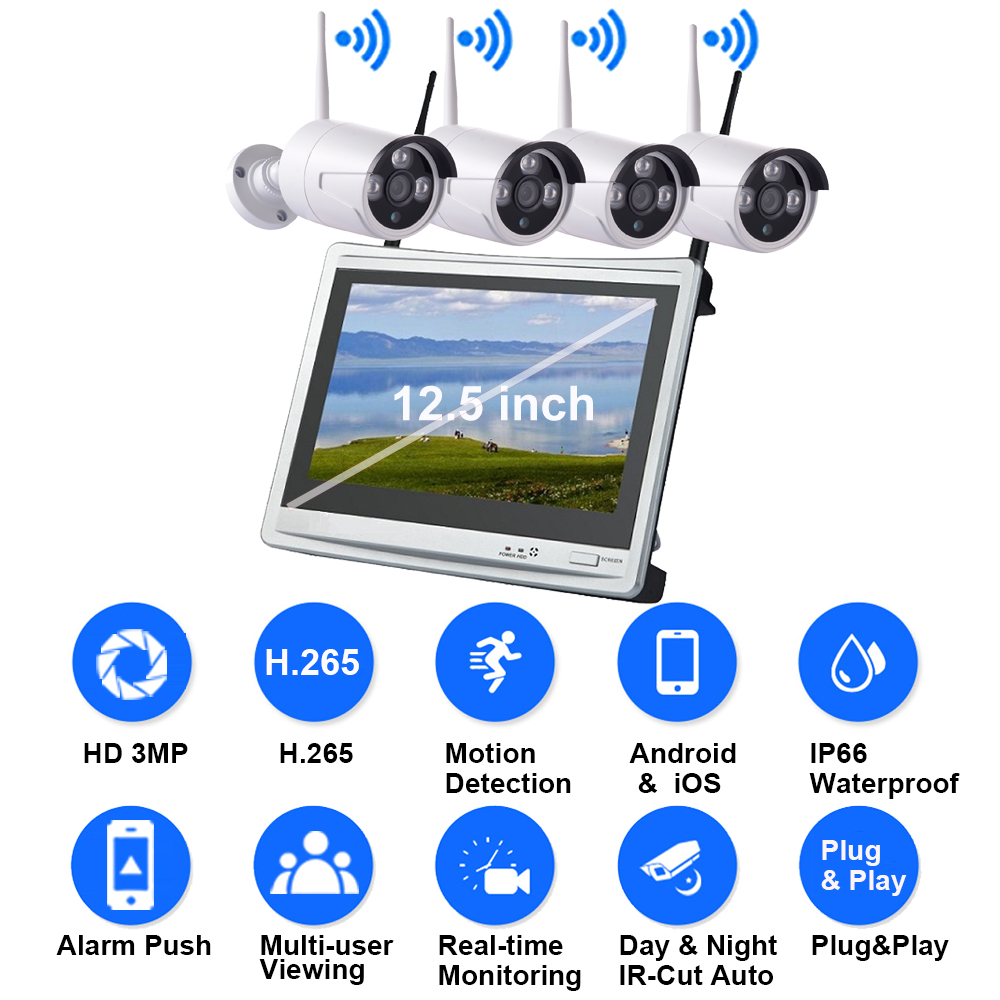

4CH 3MP WiFi NVR Kit:
8CH 3MP WiFi All IN ONE NVR*1pcs with 12.5" LED Display

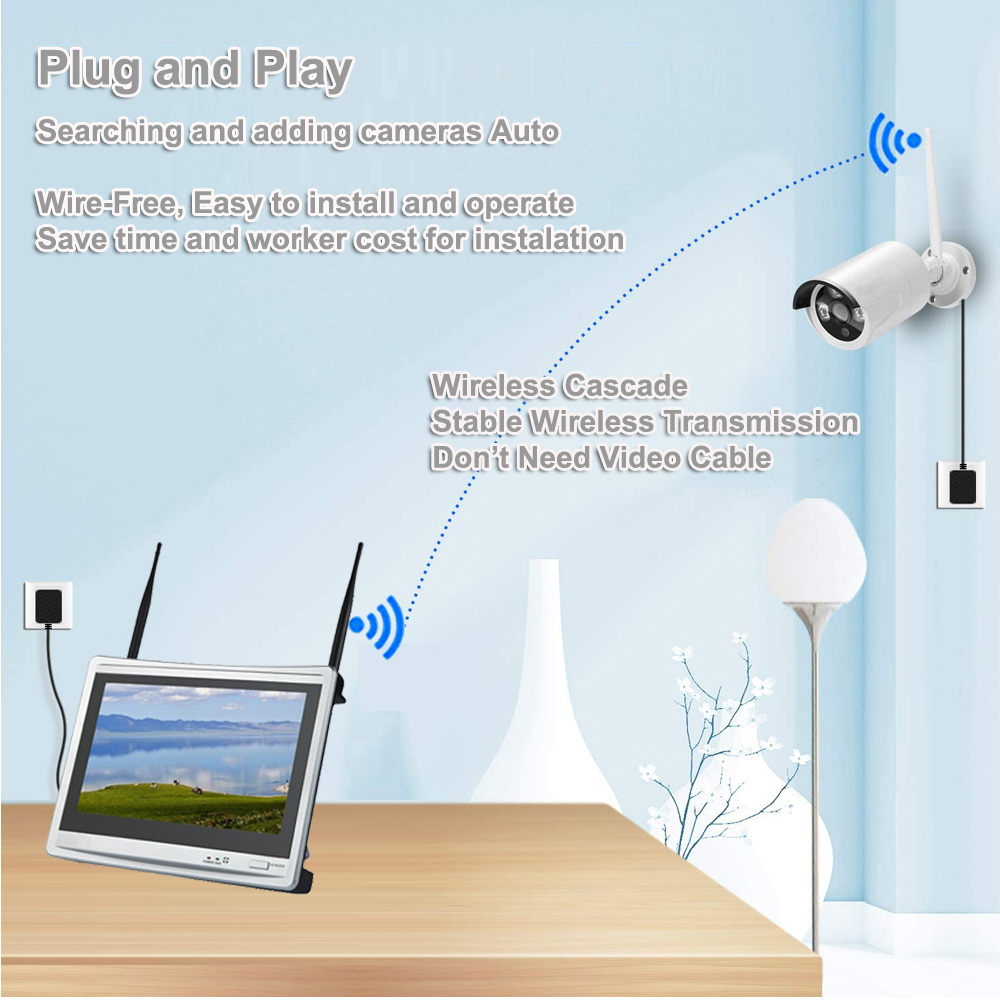

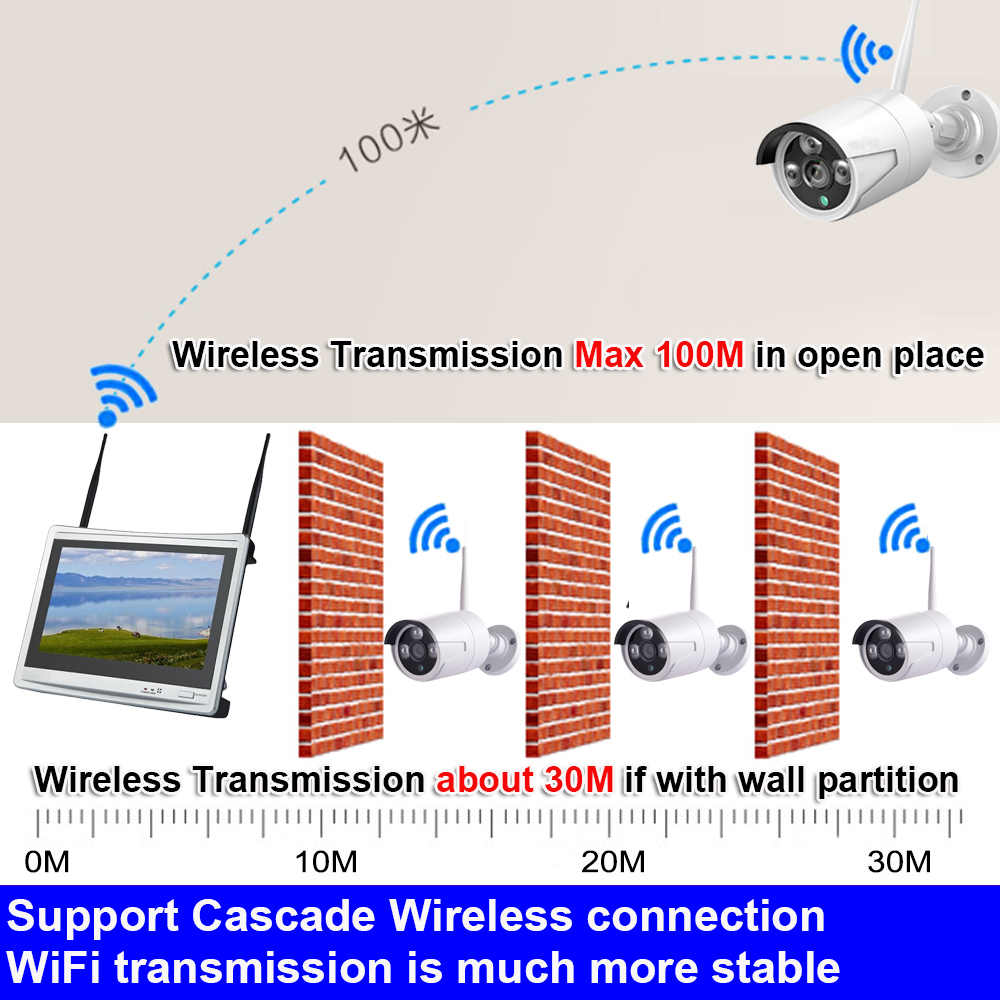

Support Wireless cascade
WiFi Camera:
3MP, 3.6mm Lens3pcs Array IR-Led, 20-25M range

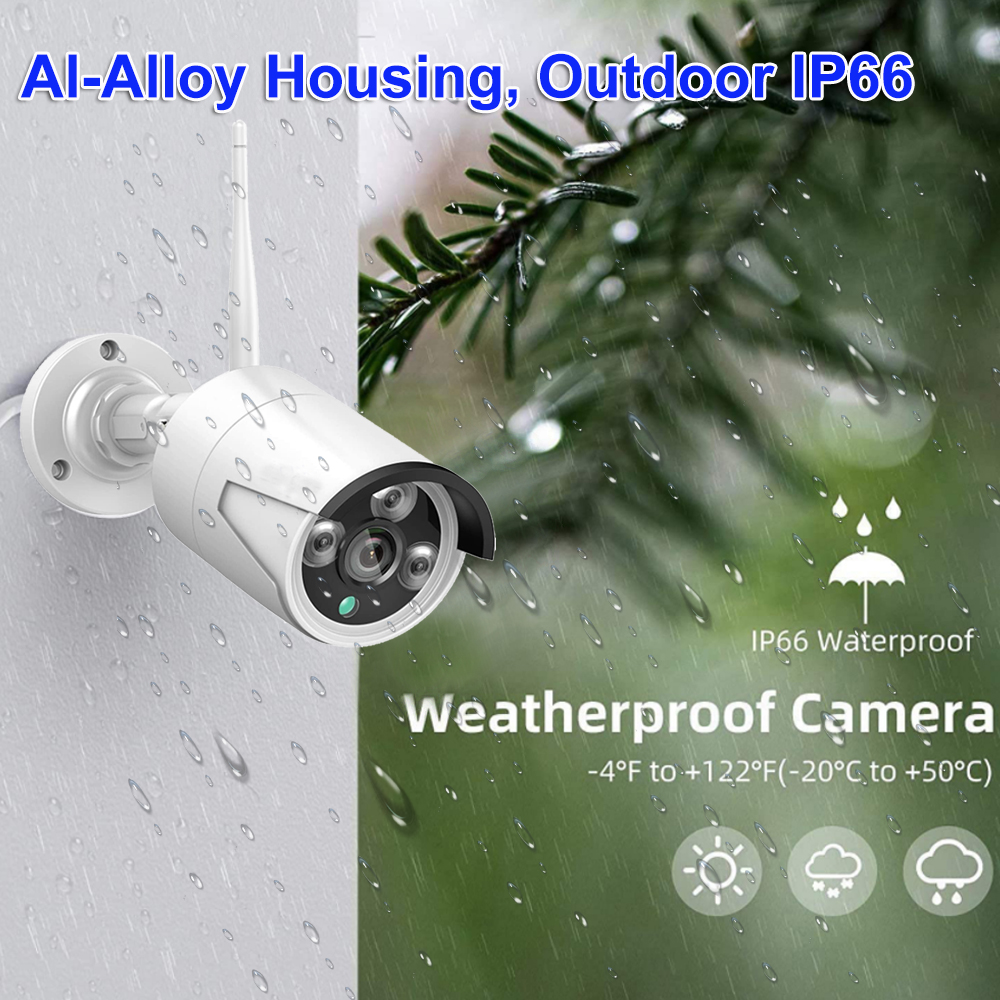

Al-Alloy IP66 Bullet WiFi Camera*4pcs
Accessory:
Power Supply DC12V 2A *1pcs
Power Supply DC12V 1A *4pcs
USB mouse *1pcs
Screws bag *4pcs
|
Model#
|
GN-KIT4D-ES30W
|
|
WiFi NVR Main Spec
|
|
|
Operating System
|
Embedded Linux
|
|
Display
|
12.5 inch High Definition LCD Screen
|
|
Preview
|
1/4/8
|
|
Video input (IP)
|
8*3MP
|
|
Video compression
|
H.264 & H.265+
|
|
Recording resolution
|
3MP/1080P/960P/720P
|
|
Audio compression
|
G.711A
|
|
Motion detection
|
Support
|
|
Recording mode
|
Manual>Alarm>Dynamic Detection>Timing
|
|
Search mode
|
Search by Time/Calendar/Event/Channel
|
|
Record storage
|
HDD、Network
|
|
Backup mode
|
Network backup, USB hard disk, USB burner, SATA burner
|
|

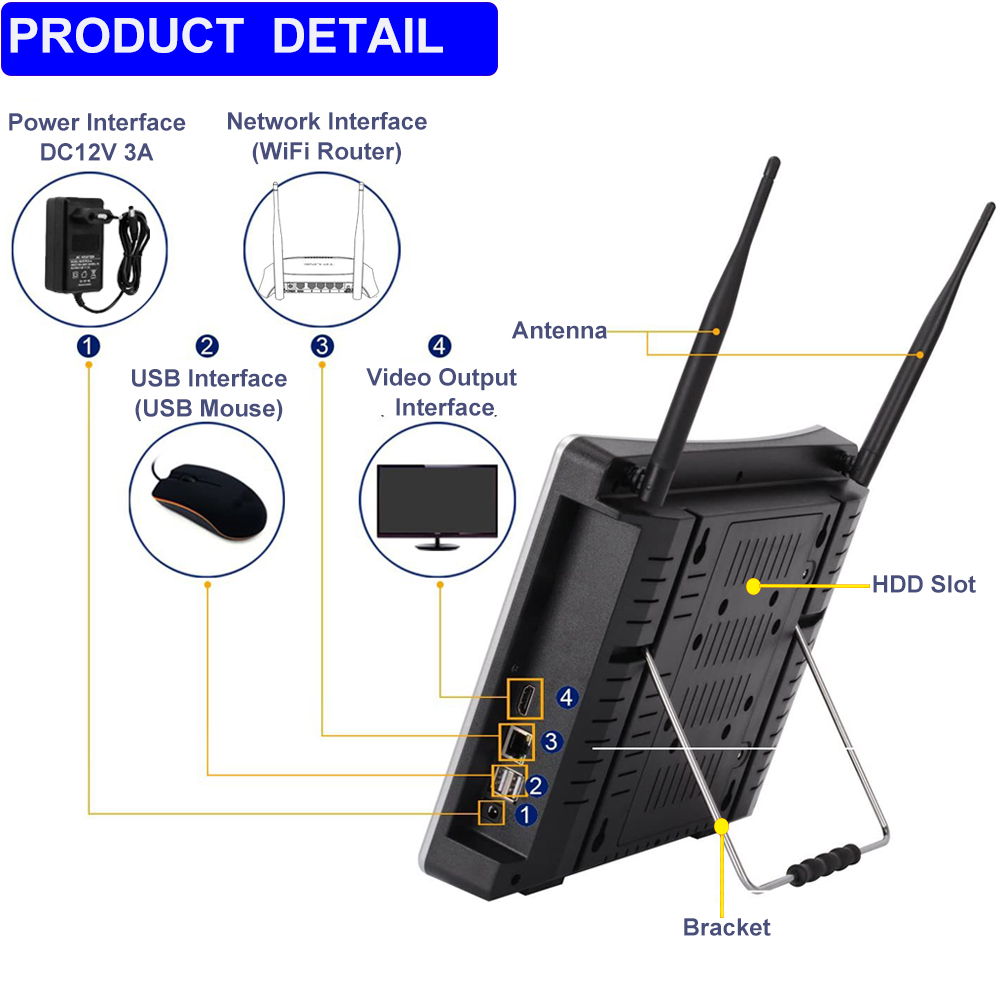

Video output
|
1CH VGA, 1CH HDMI (2K) output
|
|
Network interface
|
1*RJ45 10M/100M Adaptive Ethernet port + 8CH WiFi
|
|
USB interface
|
2*USB2.0 ports
|
|
HDD
|
1* SATA(Max 6TB )
|
|
Power supply
|
12V/3A
|
|
Work environment
|
Temperature:0℃-＋55℃ , Humidity:10%－90%RH
|
|
|
|
|

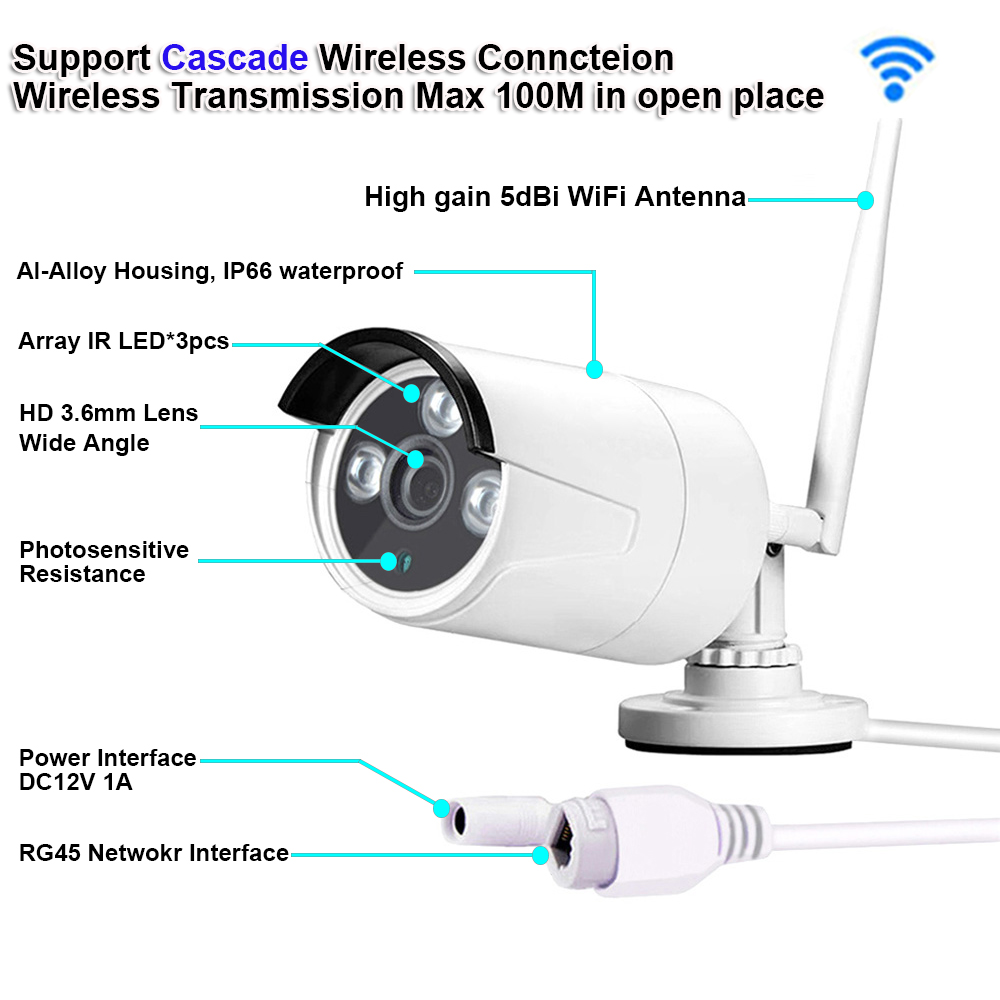

WiFi IP Camera Main Spec
|
|
|
Resolution
|
3MP 2304(H)*1296(V)
|
|
Video compression
|
H.264 & H.265+
|
|
Lens
|
3.6mm (6mm is optional)
|
|
Stream parameters
|
Dual stream 2304*1296@ 15fps 720x576 @ 15fps
|
|
Low illumination
|
Color: 0.1 Lux; B/W: 0.01 Lux
|
|
Infrared lamp
|
Array IR LED * 3pcs
|
|
Infrared distance
|
20M
|
|
Day&night
|
IR cut filter with auto switch
|
|
Interface
|
1 RJ45 10M / 100M adaptive Ethernet port
|
|
1 SMA interface, 802.11b / g / n / protocol
|
|
|
Power supply
|
DC12V 1A
|
|
Power consumption
|
≤6W
|
|
Waterproof leve
|
IP66
|
