Product Description
Product Parameters
|
Indoor/Outdoor PM
|
IPM6
|
IPM10
|
OPM8
|
OPM10
|
OPM16
|
|
Pixel Pitch(mm)
|
6
|
10
|
8
|
10
|
16
|
|
Pixel Matrix Per Sq.m
|
27777
|
10000
|
15625
|
10000
|
3906
|
|
Pixel Configuration
|
SMD3528
|
SMD3528
|
SMD3535
|
SMD3535
|
SMD3535
|
|
Brightness (nits)
|
2200
|
1800
|
6800
|
7500
|
8000
|
|
Scan
|
1/8
|
1/4
|
1/3
|
1/2
|
1/1
|
|
Module Dimension
|
192x192mmZ0.63x0.63ft
|
320x160mm/1.05x0.52ft
|
320x160mmZ1.05x0.52ft
|
320x160mmZ1.05x0.52ft
|
256x256mmZ0.84x0.84ft
|
|
Cabinet Dimension
|
960x960mm/3.15x3.15ft
|
1280x960m m/4.2x3.15ft
|
1280x960m m/4.2x3.15ft
|
960x960mm 73.15x3.15ft
|
1024x1024mmZ3.36x3.36ft
|
|
Cabinet Resolution
|
160x160
|
128x96
|
160x120
|
96x96
|
64x64
|
|
Cabinet Weight
|
40kg / 88lb (Iron)
|
44kg / 97lb (Iron)
|
49kg / 1081b (Iron)
|
33kg Die casting aluminum
|
46kg/ 1011b (Iron)
|
|
Power Con. (Max / Avg)
|
550/ 100 w/sq.m
|
500 / 90 w/sq.m
|
680/ 120 w/sq.m
|
900 / 180w/sq.m
|
690/ 130 w/sq.m
|
|
IP Rate
|
IP43
|
IP65
|
|||
|
Service Access
|
Front / Rear
|
Rear
|
|||
|
Refresh Rate (HZ)
|
2880
|
>1920
|
|||
|
Grey Scale (bit)
|
14bit
|
16bit
|
|||
|
Viewing Angle (H/V)
|
140/140
|
140/140
|
|||
|
Input Voltage (AC)
|
110V/240V
|
110V/240V
|
|||

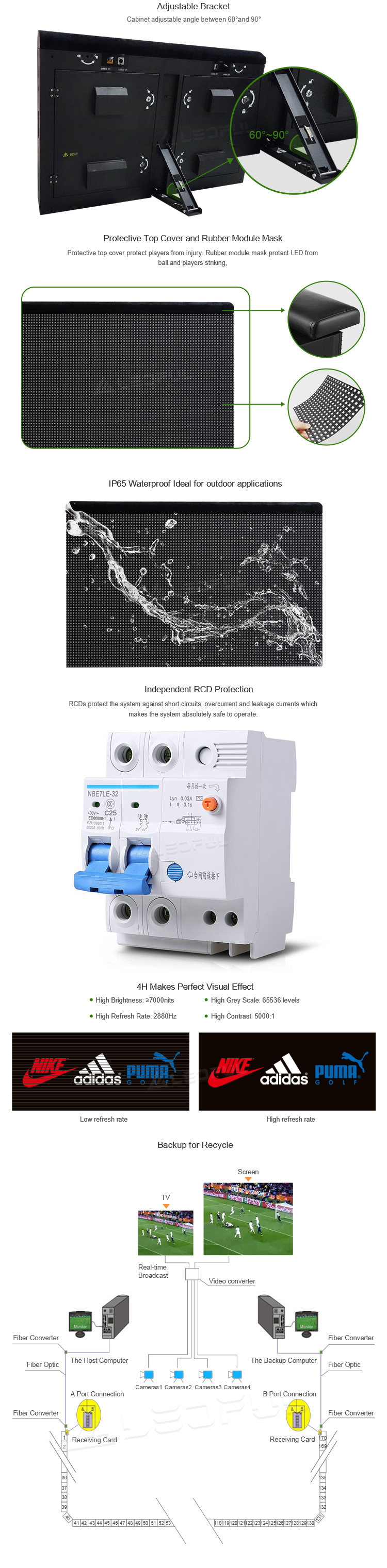

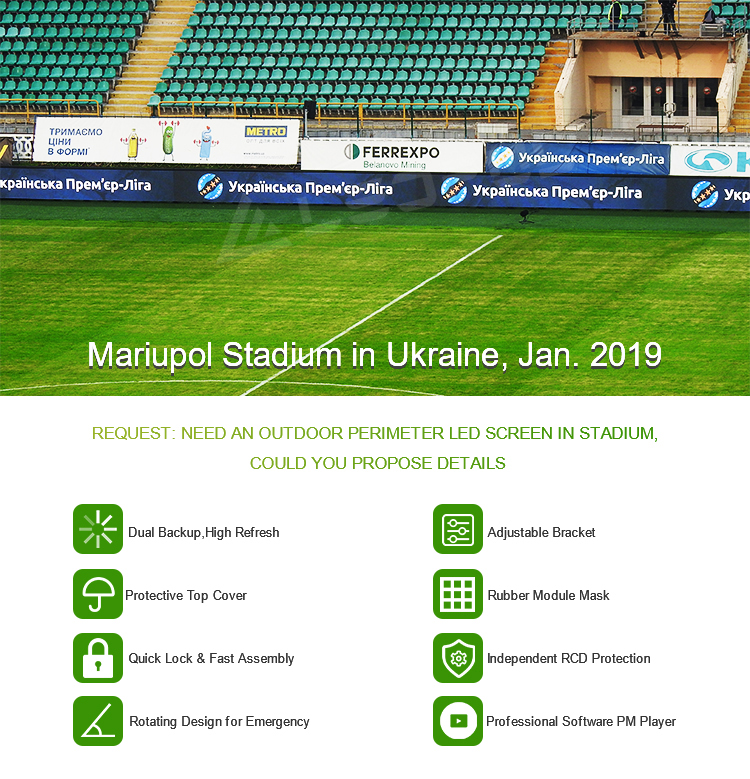

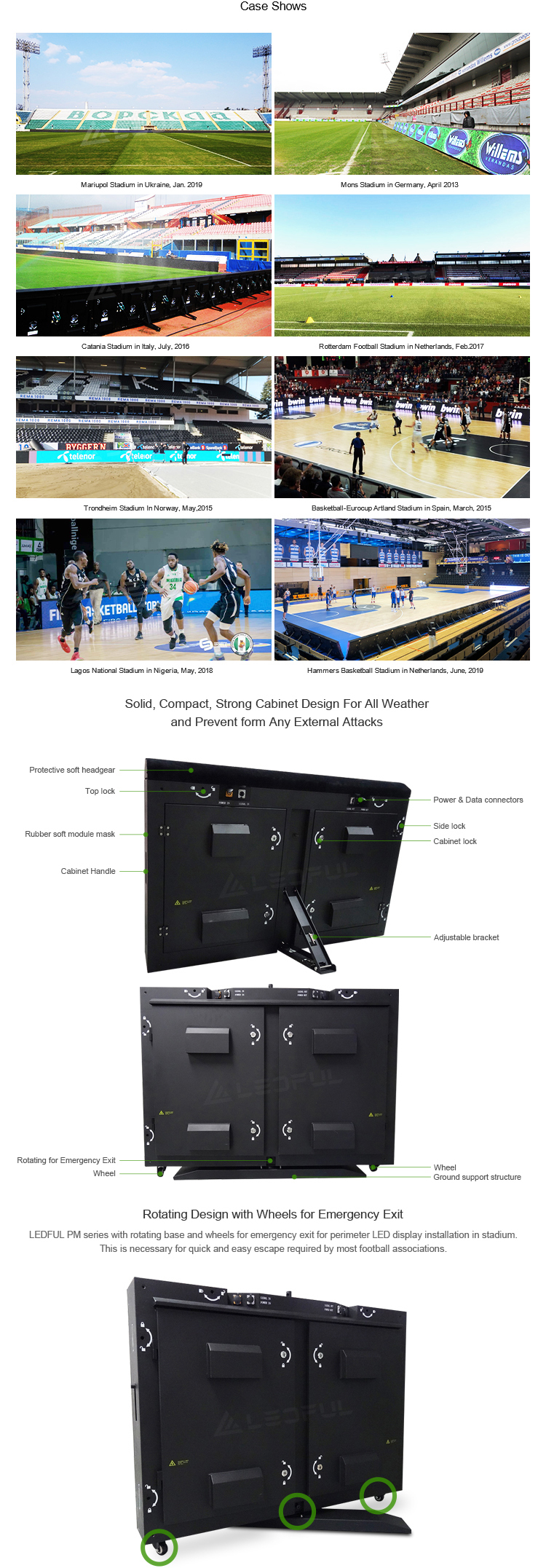

Details Images
| Product Code |
37789 |
|---|---|
| Category |
Outdoor sports |
