Model NO.

DK-ANPR2M-AF

Video Parameters

Processor

Neural network processor, quad-core 900MHz processor + CNN hardware acceleration engine (1Tops)

Image Sensor

1/2.7 inch starlight CMOS sensor

Video compression algorithm

H.265 advanced framework (HighProfile) compression algorithm

Video resolution

2 million pixels full HD (1080P), 30 frames per second video and picture capture;

Upload  stream

256Kbps~8Mbps

Speed

30KM/h, 60KM/h, 90KM/h, 120KM/h adjustable

Wide dynamic

Off, low mode, medium mode, high mode, high mode adjustable

Strong light suppression

Off, low mode, medium mode, high mode, high mode adjustable

Snapshot

License plate recognition

Real-time video license plate recognition snapshot, TF card storage, PC upload

Interface

Gate opening port

1 channel standard open output

Earth sense interface

1 channel

power supply

1 channel

485 interface

1 channel

TF interface

1 channel

Protocol

Network protocol

HTTP, HTTPS, RTSP, RTSP over HTTP, TCP/IP, UDP, uPnP

NTP, SMTP, DHCP, DDNS, DNS, DHCP, PPPoE, FTP

Access protocol

WEB, SDK API, ONVIF2.2

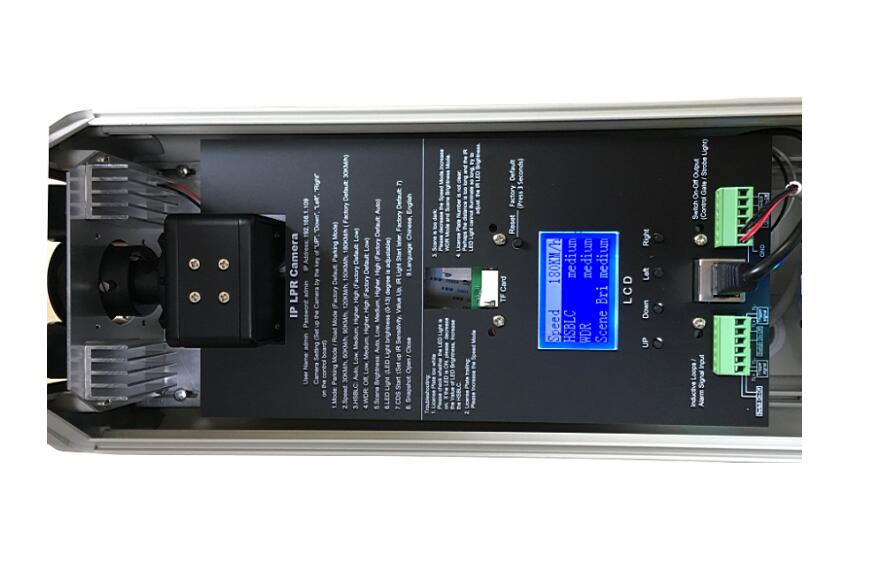

LCD

Display

Display screen

1.8 inch LCD display

Language

Chinese English

Display function

Machine working mode, vehicle speed, strong light suppression, wide dynamic range, ambient brightness, and fill light brightness are adjustable

Fill light 6pcs 3W high power, 12 levels adjustable brightness

Fill light 6pcs 3W high power, 12 levels adjustable brightness

Power input DC12V/2A

Power input DC12V/2A/ POE

Maximum power consumption less than 20W

Maximum power consumption less than 20W

Working temperature -20--55 ℃

Working temperature -20--55 ℃

Working humidity 10--85%

Working humidity 10--85%

Shell size 12" guard

Shell size 12" guard

system requirement

operating system:Microsoft Windows XP/Windows

Browser:Microsoft Internet Explorer 6.x or above
