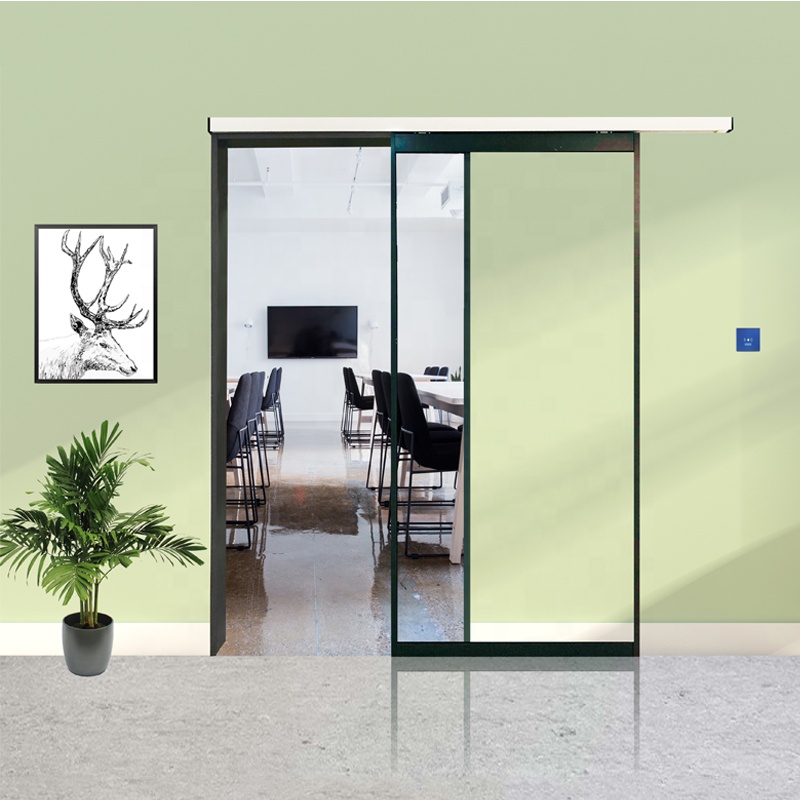

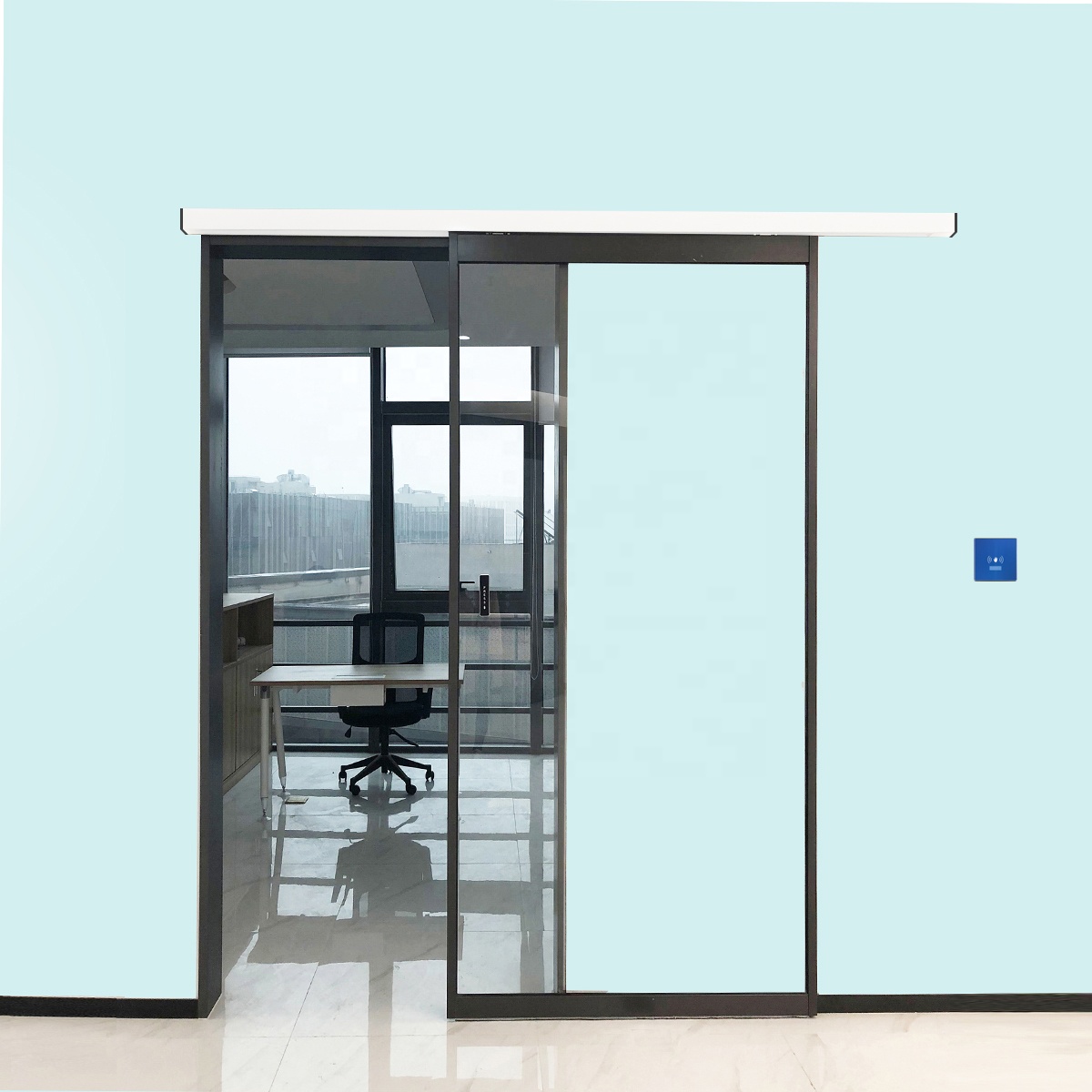

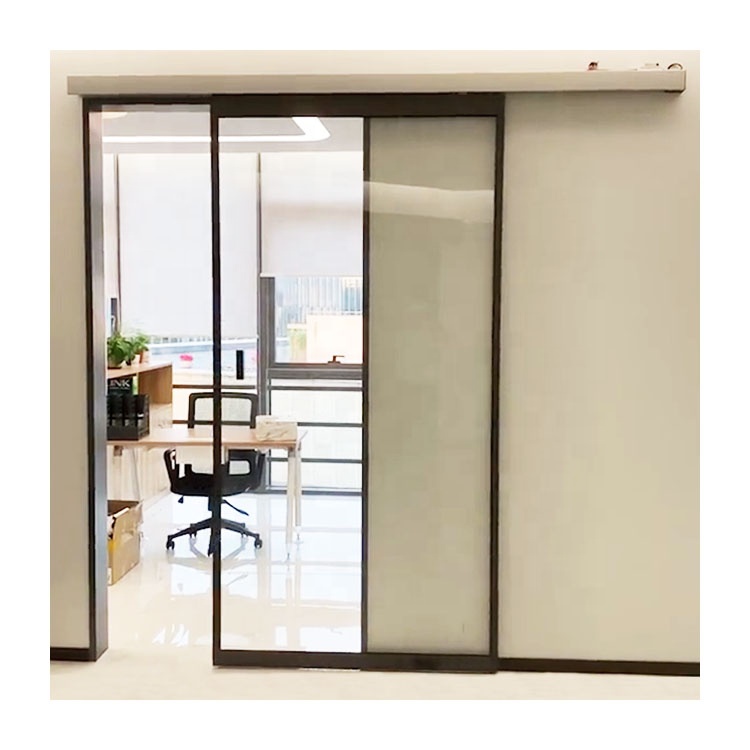

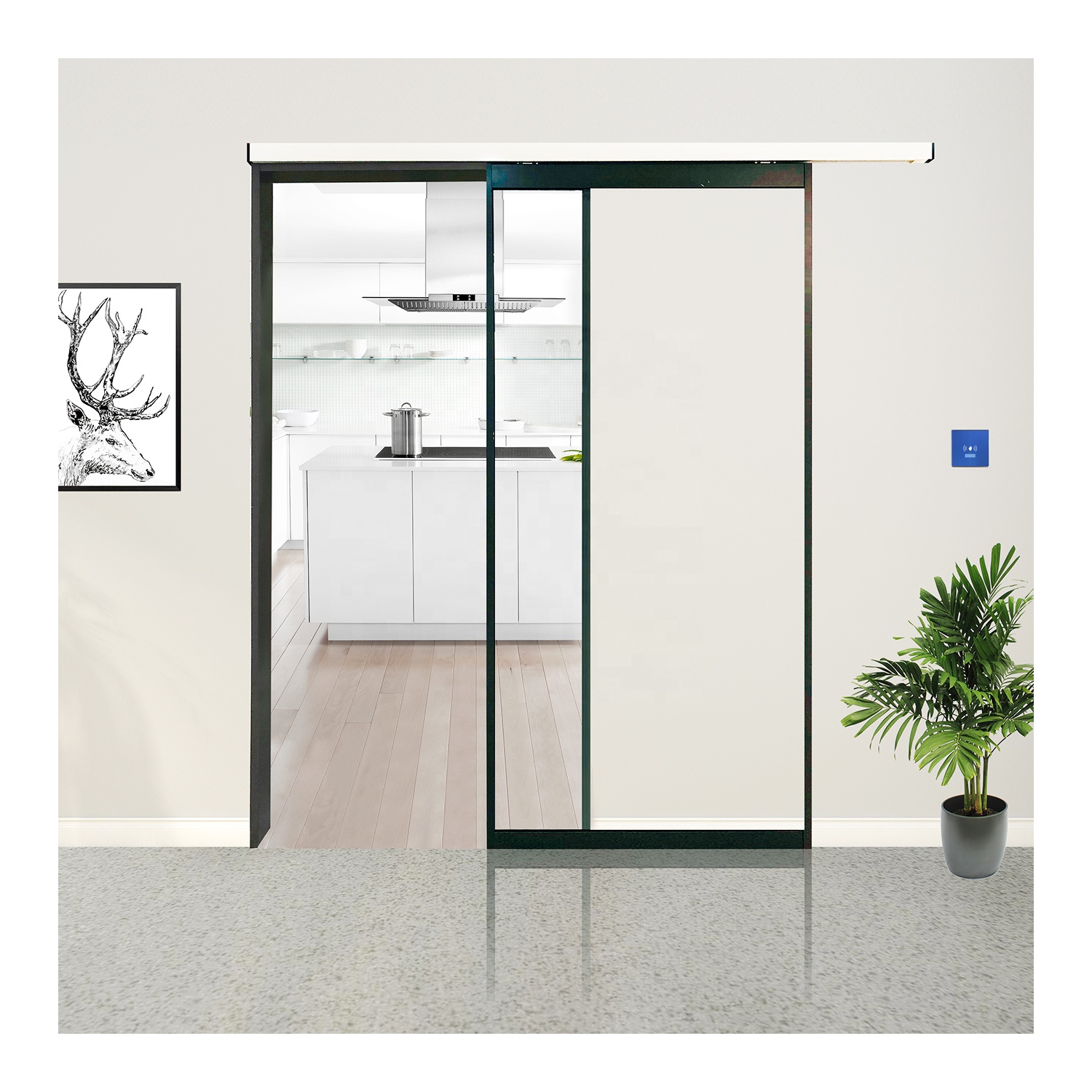

DEPER DZ08 magnetic levitation automatic sliding door for smart home
| Technical Data | ||
| Product name: | DEPER automatic sensor glass sliding door magnetic levitation automatic sliding door | |
| Door configuration: | Single leaf | Double leaves |
| Door leaf weight : | 20-100kg | |
| Complete open width: | 600-1100mm | |
| Power voltage: | AC220V±10% 50/60hz | AC110V±10% 50/60hz |
| Power consumption: | 80w | |
| Standby power: | 3w | |
| Opening Speed: | 150-500mm/s(adjustable ) | |
| Closing Speed: | 150-500mm/s(adjustable ) | |
| Hold-open time: | 0-20S(adjustable ) | |
| Working temperature: | -20ºC---+50ºC | |
| Installation way: | out of cellpower | |

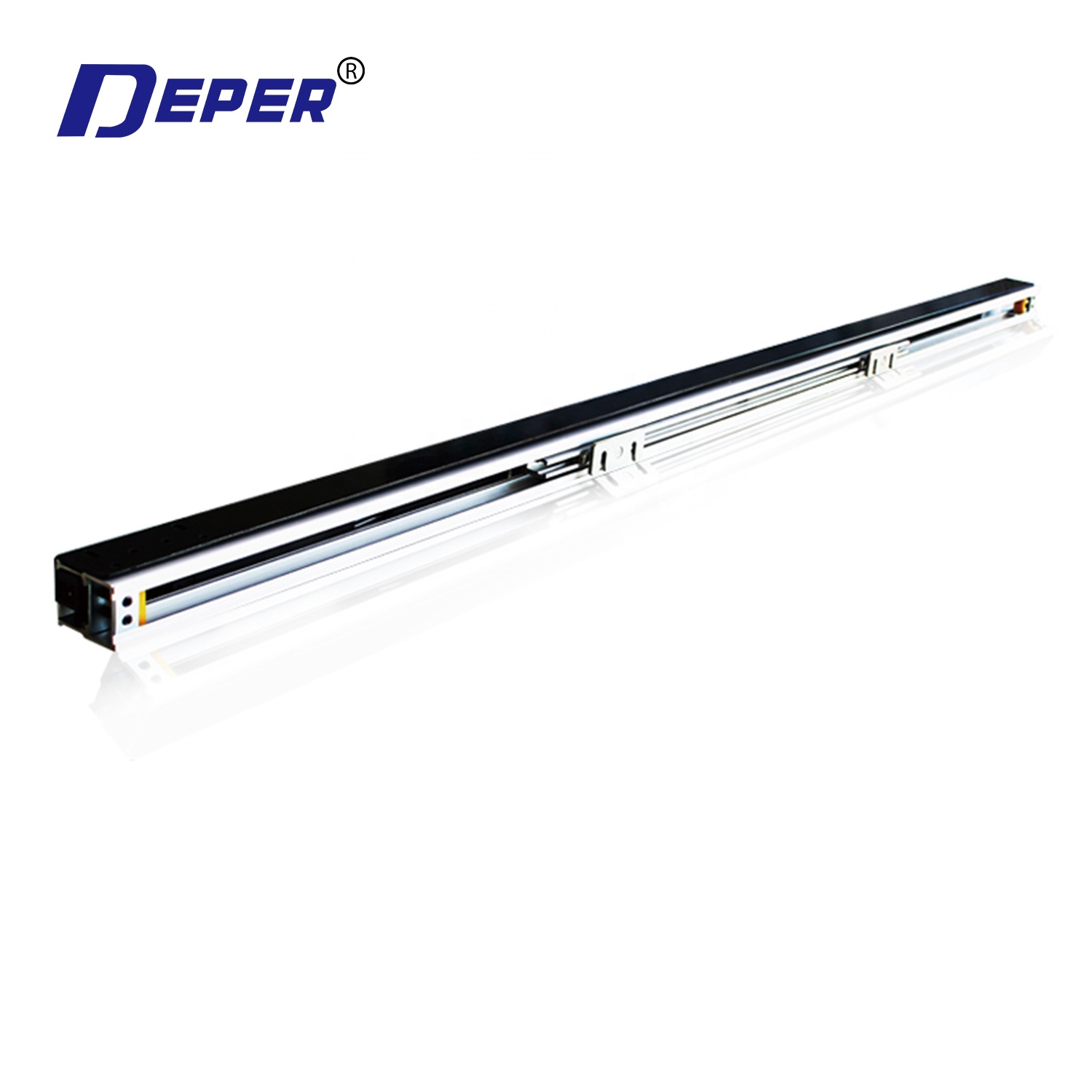

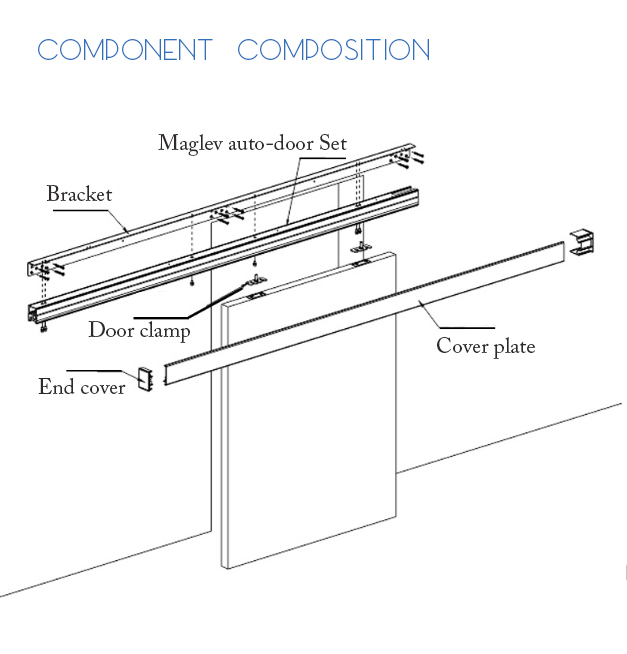

The DEPER magnetic levitation unit has three sizes, suitable for different door installation, equipped with aluminum alloy cover plate, fashionable and beautiful, side mounted, simple and convenient.
| Model | Rail length | Max door width | Reference price |
| DZ08-80 | 1900mm | 900mm | $280 |
| DZ08-90 | 2100mm | 1000mm | $296 |
| DZ08-100 | 2300mm | 1100mm | $312 |
| Note: Different sizes have different selling prices, please contact us | |||
Product Advantage

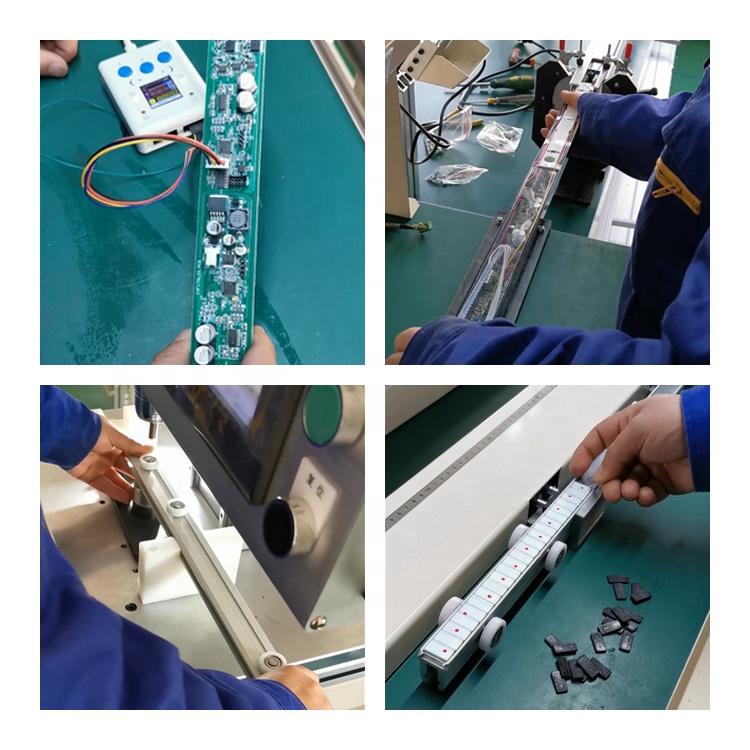

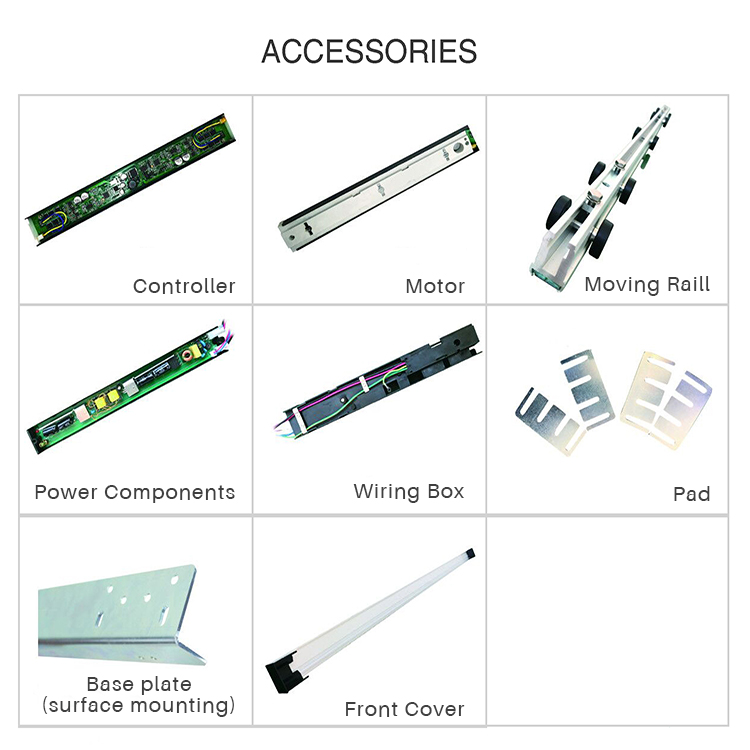

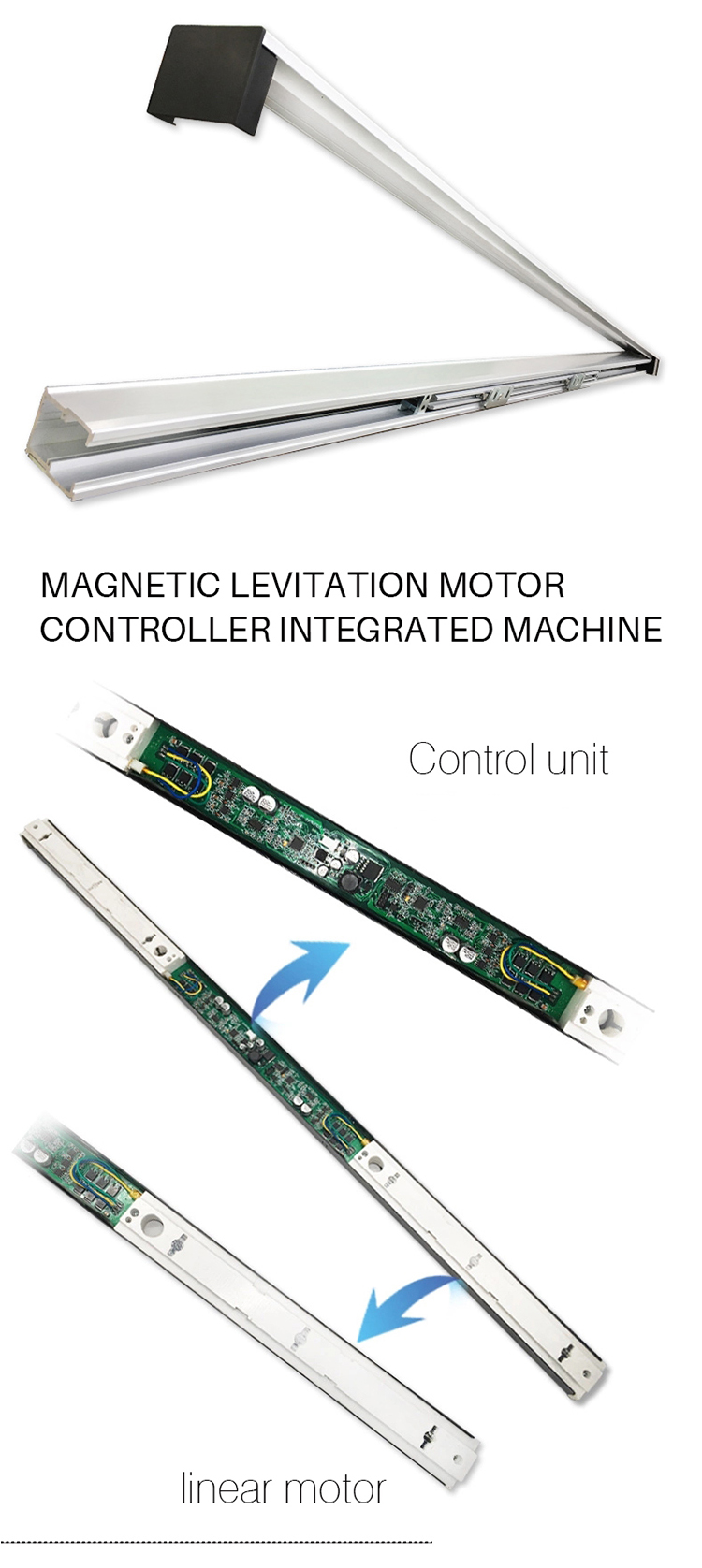

01.Control unit
Adopting positive Hongbo drive technology,the motor runs low noise,and the switching loss is low,three-way closed-loop control (position closed loop,speed closed loop,current closed loop ),improve the safety and fluency of the unit operation.
02.Linear motor
An electric drive that converts electrical energy directly into linear motion mechanical energy.It can save a lot of intermediate transmission mechanism and speed up the system.The system reflects the speed and improves the system accuracy.
03.Magnetic levitation
Less belt design,driven by magnetic force,quiet and comfortable.It has multiple protection functions inside,and it has a small rebound force to protect the elderly and children.
04.APP bluetooth debugging function
Say goodbye to traditional single controller button debugging.After connecting to the Bluetooth device,enter the password to enter the debug page ,you can set the door status, switch door speed,etc.as the needed to make your life easier and smarter.

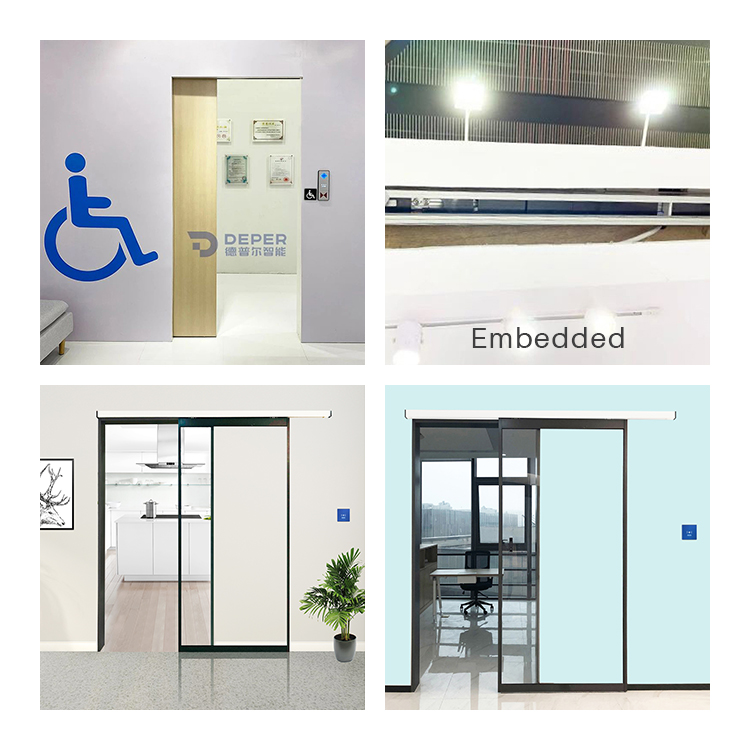

05.Wide range of applications
Suitable for offices,homesrestaurants,etc.,can be used with a variety of doors to meet a variety of needs.
