Product Description
|
Hardware
|
|
|
CPU
|
i5-1135G7 (11th Generation Intel Tiger Lake UP3 -28W)
Processor 4 core 8 threads, processor base frequency 2.40 GHz, maximum frequency 4.20 GHz
|
|
GPU
|
Gen 12 Intel® Iris® Xe Graphics
|
|
RAM/ROM
|
8GB DDR4L / 256GB NGFF SSD Removeable, Optional 16GB DDR4L
|
|
External Memory
|
Support TF*1,MAX 128GB
|
|
LCD Display
|
13.3 inch 16:9, 1920(H)*1080(V) FHD, 400 cd/m2
|
|
Touch Panel
|
10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch, Support Corning gorilla and glove touch
|
|
Camera
|
Front 2.0MP, Anti camera LED
|
|
Battery
|
External polymer lithium ion battery--5600mAh/11.1V (2800mAh/11.1V x2 ).
5-6hrs(default 50% volumn，default200nit，play 1080P HD video)
|
|
Speaker
|
Embedded 8Ω/0.8W waterproof speaker×2
|
|
Mic
|
Internal Digit MIC×2
|
|
TPM
|
Built-in TPM2.0 SLB9665T
|
|
Keyboard
|
78 key, with LED backlight
|
|
Fingerprint
|
Built-in ×1 SPI Fingerprint (windows hellow boot login)
|
|
Fan
|
Built-in ×1 IPX5
|
|
Data Collection & Networking
|
|
|
NFC
|
Optional NXP100, 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
|
|
BT
|
BT V5.1
|
|
WIFI
|
Intel AX200: Support WI-FI 6, 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax
|
|
4G
|
Optional M. 2 interface EC25-EC, LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (Unicom Telecom, mobile support is not good, only B8 support, no TDD band) Europe, Middle East, Africa, Taiwan, Japan
|
|
GPS
|
Optional U-blox neo-7 ,Support:GPS,External GPS antenna（Optional）
Acquisition sensitivity: -160 dBm;frequency: 0.25 Hz 10 MHz (configurable)
Cool Start Time:less 50second,Hot Start Time:less 28second,
|
|
OS
|
Windows 10 Pro inactivated os(Free) 64BITS, Optiona Home/IOT/LTSC - 64BITS
|
|
I/O Port & Appearance & Package
|
|
|
I/O Port
|
HDMI Type-A x 1, Thunderbolt 4 x 1
USB 3.0 Type-A x 3, Type-c x 1 SIM Card x 1& TF Card x 1（Inside the battery compartment） Pogo 5pin (USB interface definition) x 1（Optional）, Φ3.5mm standard earphone jack x 1,Φ5.5mm DC 19V 3.42A DC jack x 1 DB9 (RS232) ×1, RJ45 port x1（10/100/1000M Self-adaption） Burglar lock hole(Righ)-Kensington x 1
Heat dissipation air outlet(Right) x 1
Left extension dock ×1 External GPS antenna（Optional）
|
|
Keys
|
Power Button x1,P1 Used to lock or open screen ×1
|
|
Indicator light
|
Power ×1 Light color is blue when boot(Blue will not too bright), Light off when machine closed.
Baterry 1×1( red and green double - color ) Light color is red when charging, then become green when full charge , red light flash when low- power, it is not bright when discharge.
Baterry 2 ×1( red and green double - color ) Light color is red when charging, then become green when full charge , red light flash when low
- power, it is not bright when discharge. |
|
Power Adaptor
|
AC100V ~ 240V, 19V3.42A/65W Output USA Standard CE approval.
UK/EU Standard Optional
|
|
Dimension
|
322*233*26 mm (Host)
|
|
Weight
|
Device unit: 1500g.
|
|

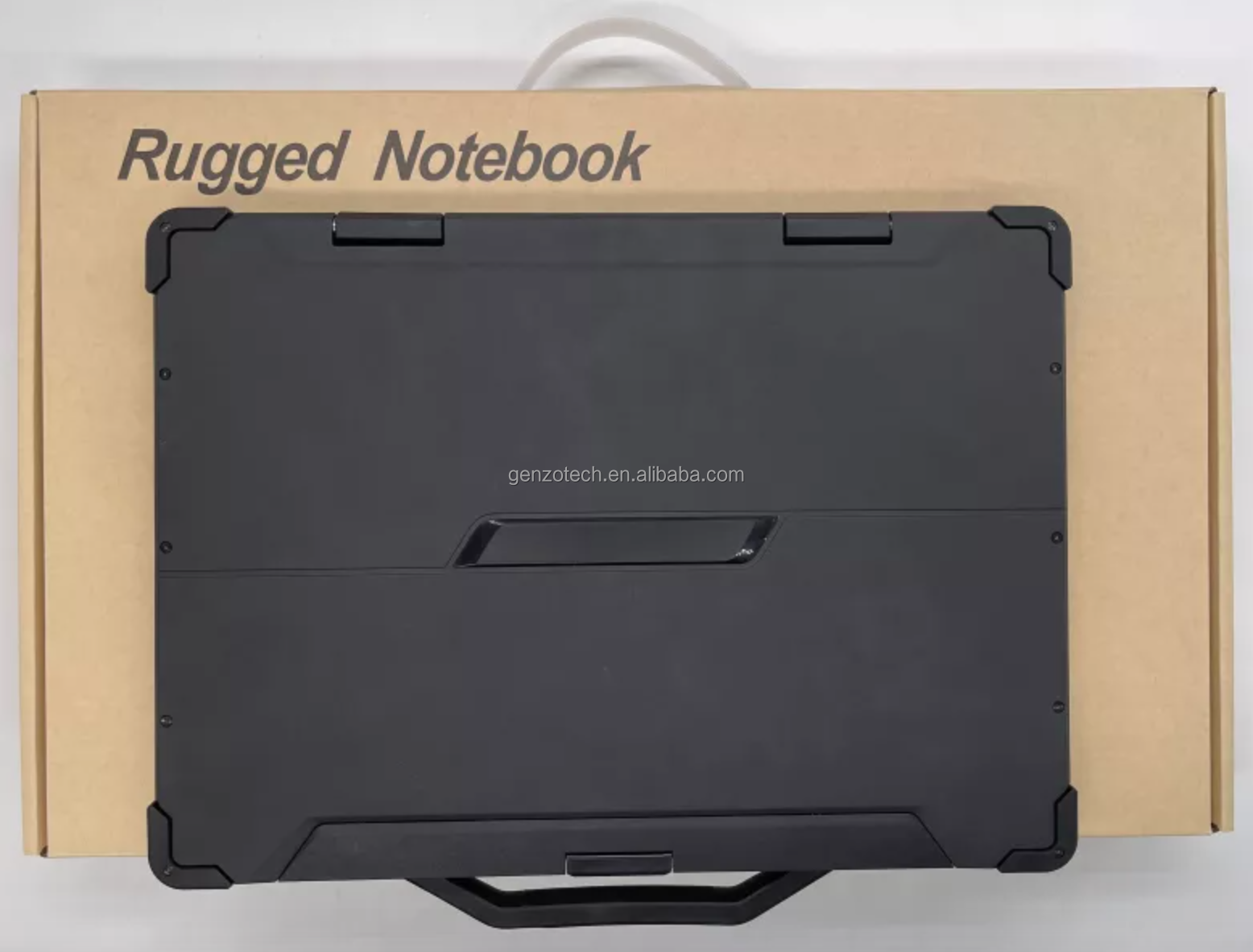

Package
|
Charger 19V3.42A/Packing box（Can be customized logo)
|
|
Certificate System & Reliability Design
|
|
|
IP67/IP65
|
IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R
a.Inner Nozzle Diameter:6.3mm；
b. Water Speed:12.5±0.625L/min；
c. Water Pressure:Adjust according to water volumn；
d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter；
f.Test time:at least 3min；
g.Distance between nozzle and panel surface:2.5～3m.
After test,there is no water leakage in sample.
|
|
CE NB
|
YES
|
|
MIL-STD-810G
|
YES
|
|
Battery
|
UN38.3，MSDS,IEC62133
|
|
Drop Height
|
1.22m composite wood floors,in operation status
|
|
Operate Temperature
|
‘-20 °C to 60 °C
|
|
Store Temperature
|
’-30 °C to 70 °C
|
|
Humidity
|
Humidity: 95% Non-Condensing
|

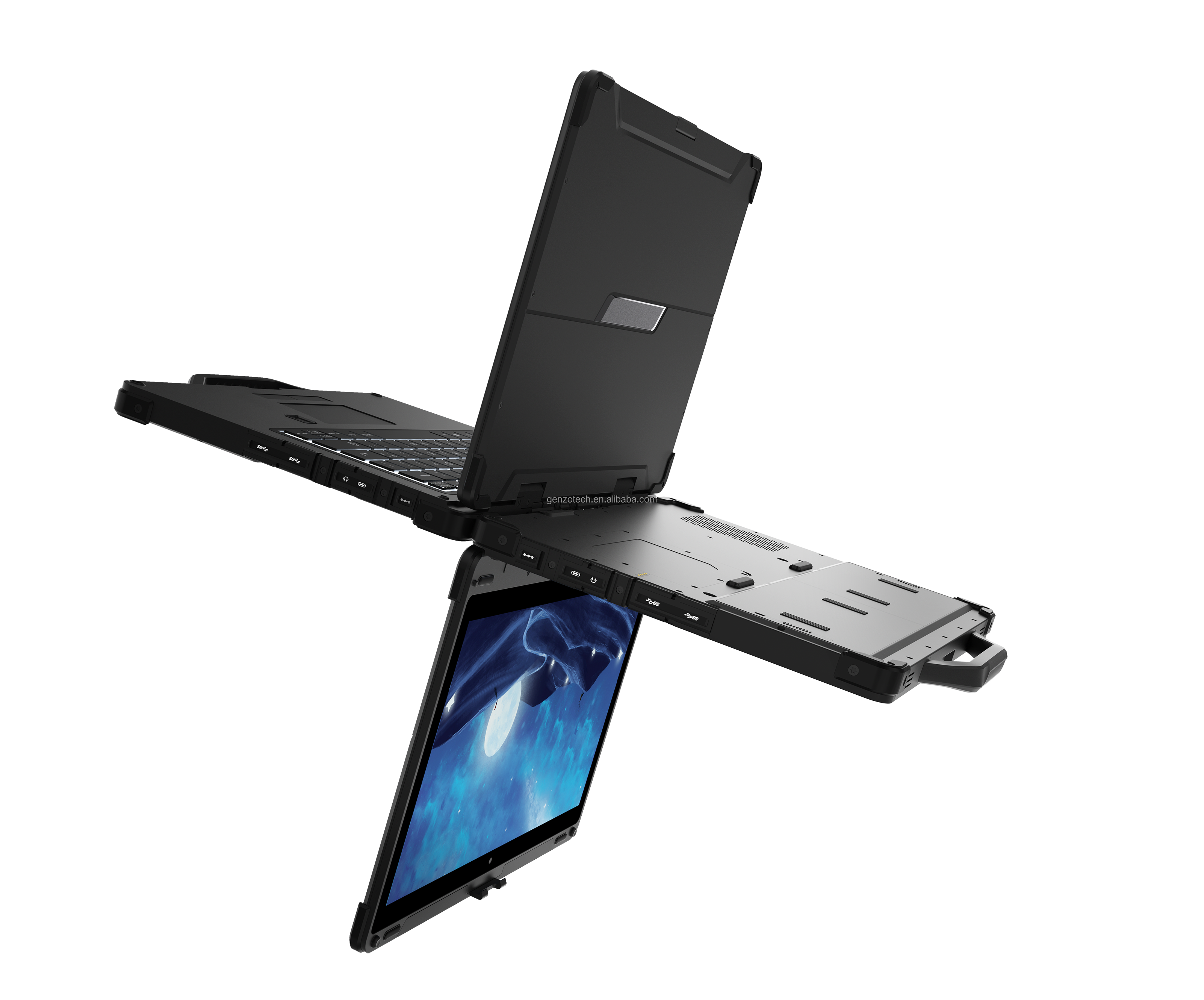

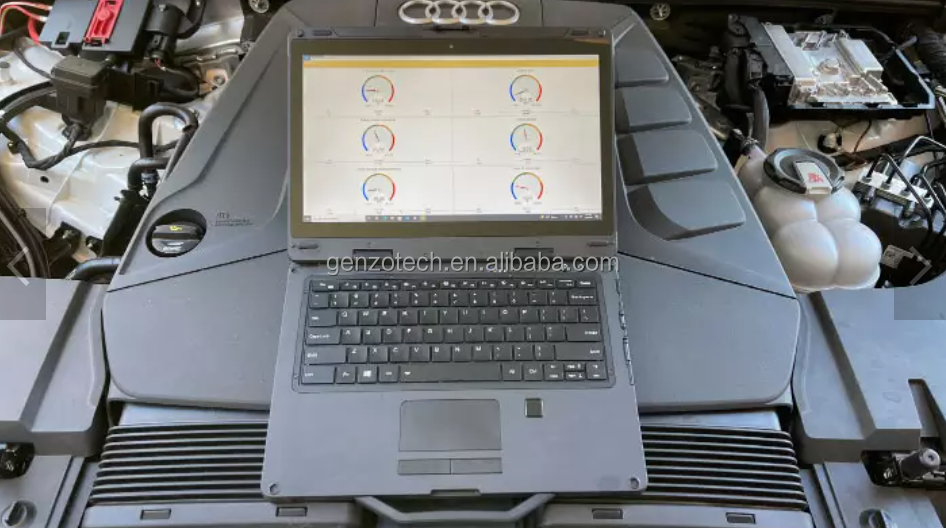

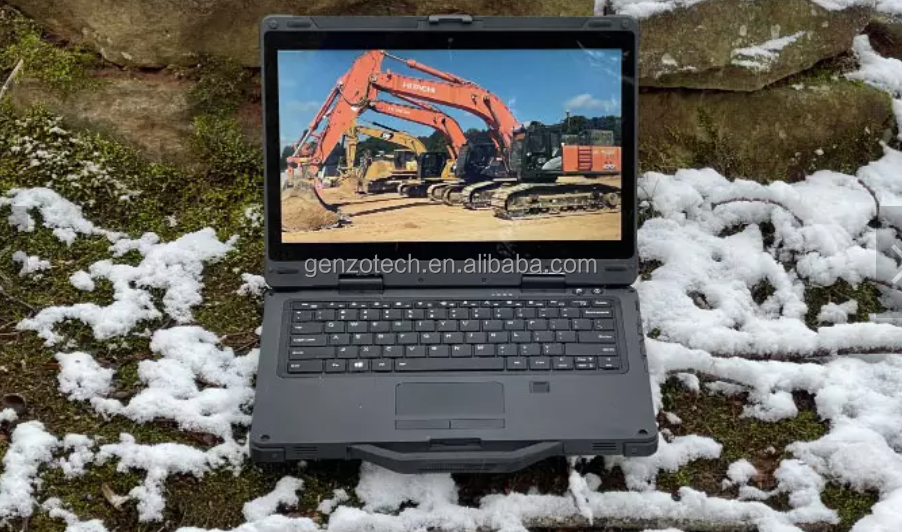

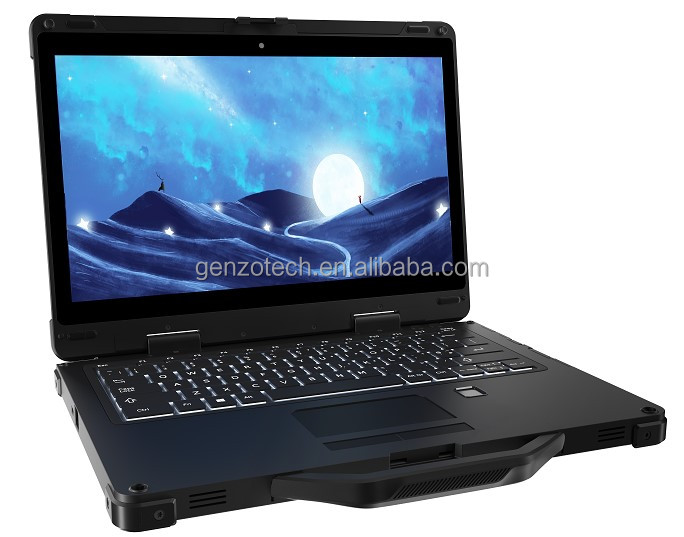

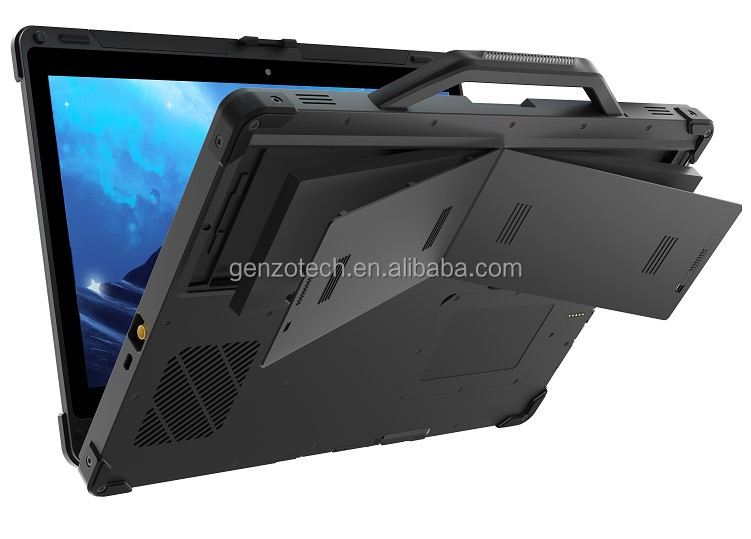

Details Images
