Model
|
FDCH
|
||||
|
Phase
|
1
|
3
|
|||
|
Rated Voltage
|
220V-240V
|
400V 3~
|
|||
|
Rated Power
|
6.5kW
|
7.5kW
|
9kW
|
11kW
|
9-24kW
|
|
Rated Current
|
28.3A
|
32.7A
|
39.2A
|
47.9A
|
3*13A - 3*34.6A
|
|
Rated Pressure
|
0.02-0.6MPa
|
||||
|
Efficiency △t=25℃
|
3.7L/min
|
4.3L/min
|
5.1L/min
|
6.3L/min
|
4.3-11.6L/min
|
|
Safety Class
|
IP25
|
||||
|
Temp. Setting Range
|
30-55℃
|
30-60℃
|
|||
|
Overheat Protection
|
67℃
|
72℃
|
|||
|
Connecting Wires Section
|
3*4mm2
|
3*6mm2
|
3*6mm2
|
3*10mm2
|
3.*1.5mm2 - 4*6mm2
|
|
Thermal Cut-off
|
90℃
|
||||
|
Pipe Section
|
G1/2“
|
||||
|

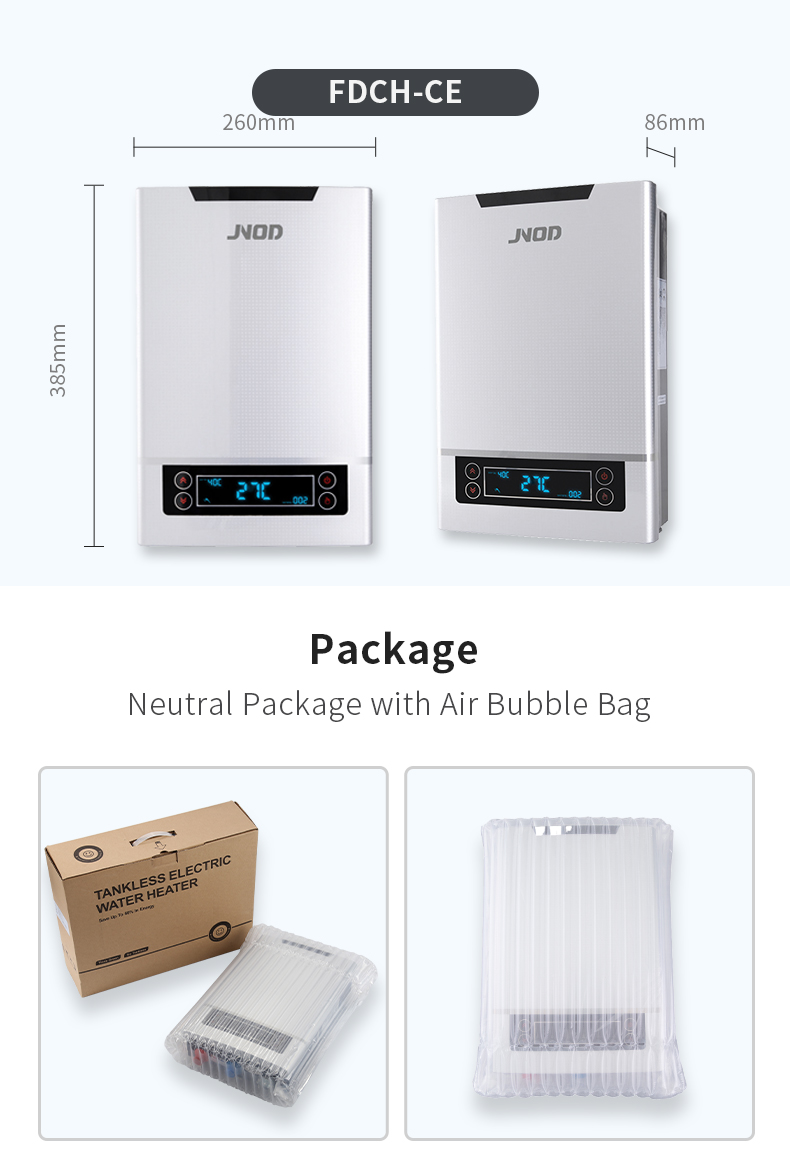

Product Size
|
385*260*86mm
|
||||
|

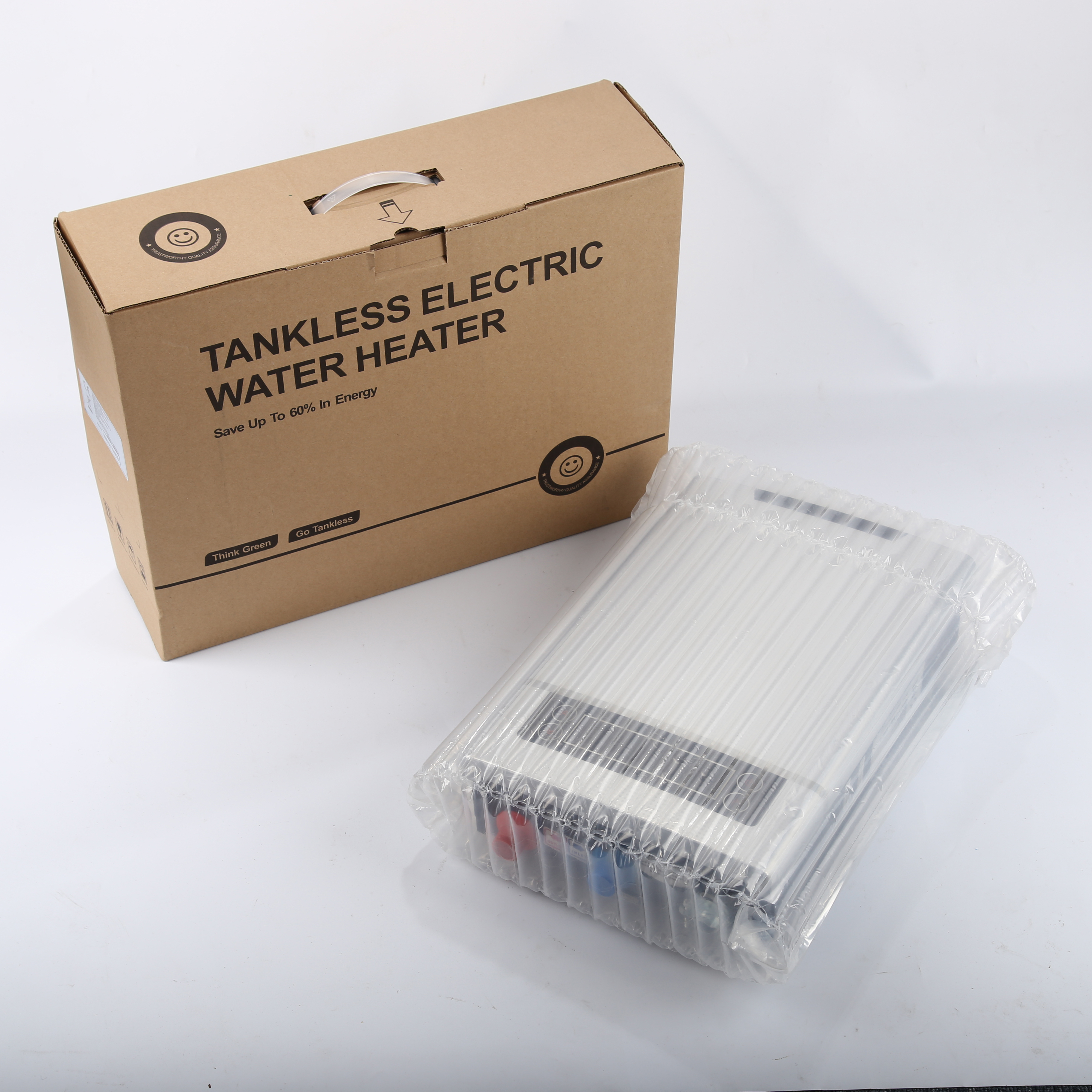

Gift Box Size
|
450*125*320mm
|
||||
|
Carton Size (4pcs/CTN)
|
530*335*465mm
|
||||
|
Loading Quantity
|
20'GP: 1476pcs 40'GP: 2952pcs 40'HQ: 3580pcs
|
||||
|
Certificate
|
CE CB LVD EMC
|
||||
|

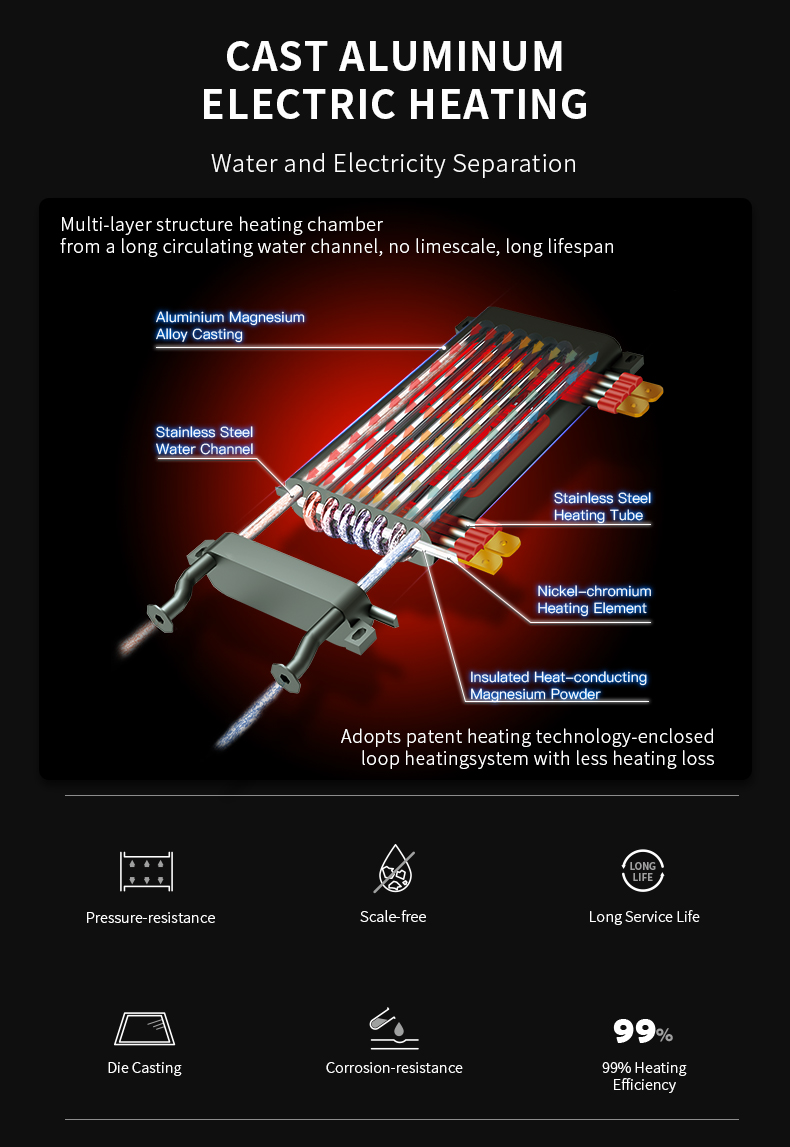

Heating Element
|
Cast Aluminum
|
||||
|

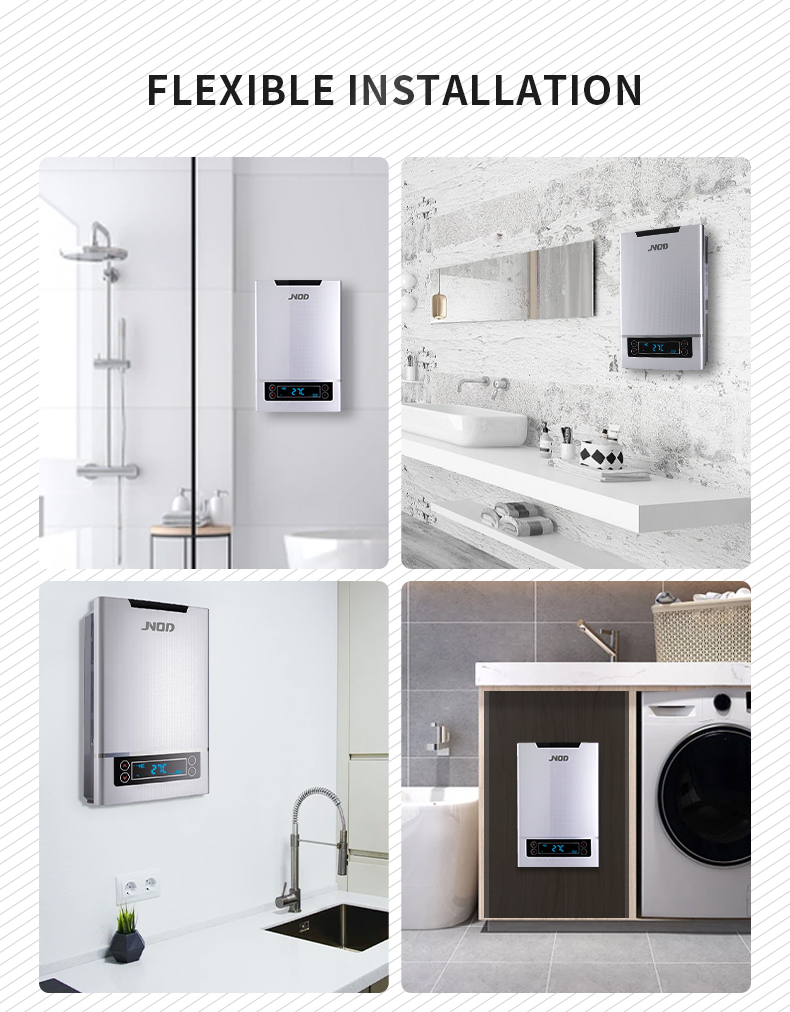

Application
|

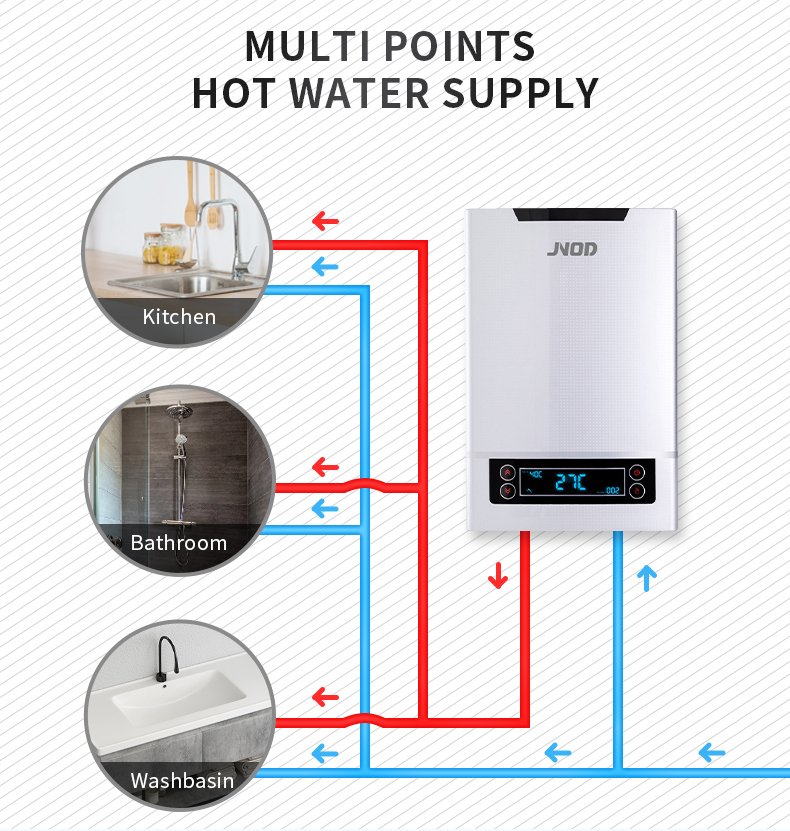

Whole House/ Kitchen/ Hotel/ Bathroom/ Home/ Car/ Garage/ Commercial etc
|
||||
|

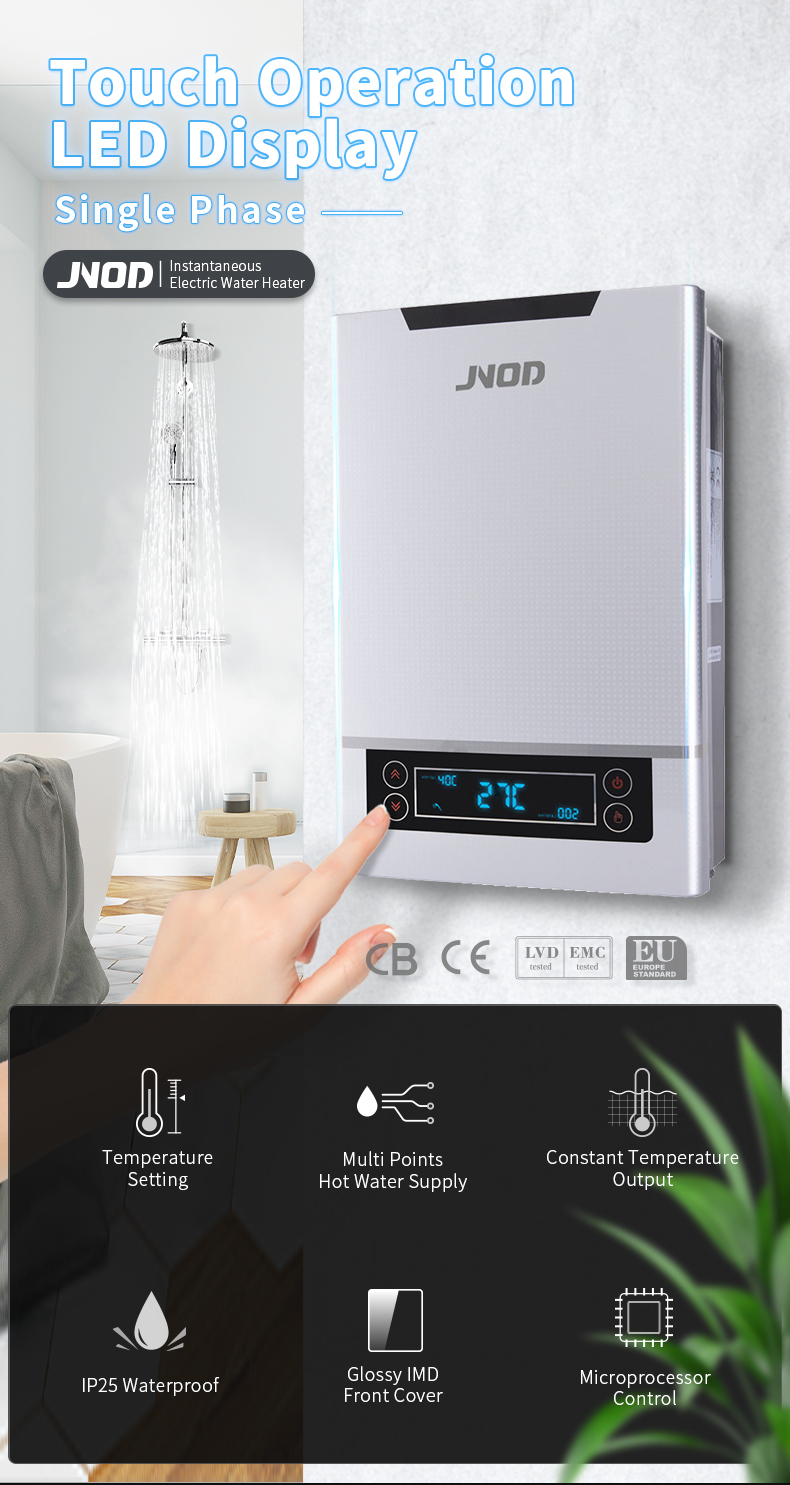

Feature
|

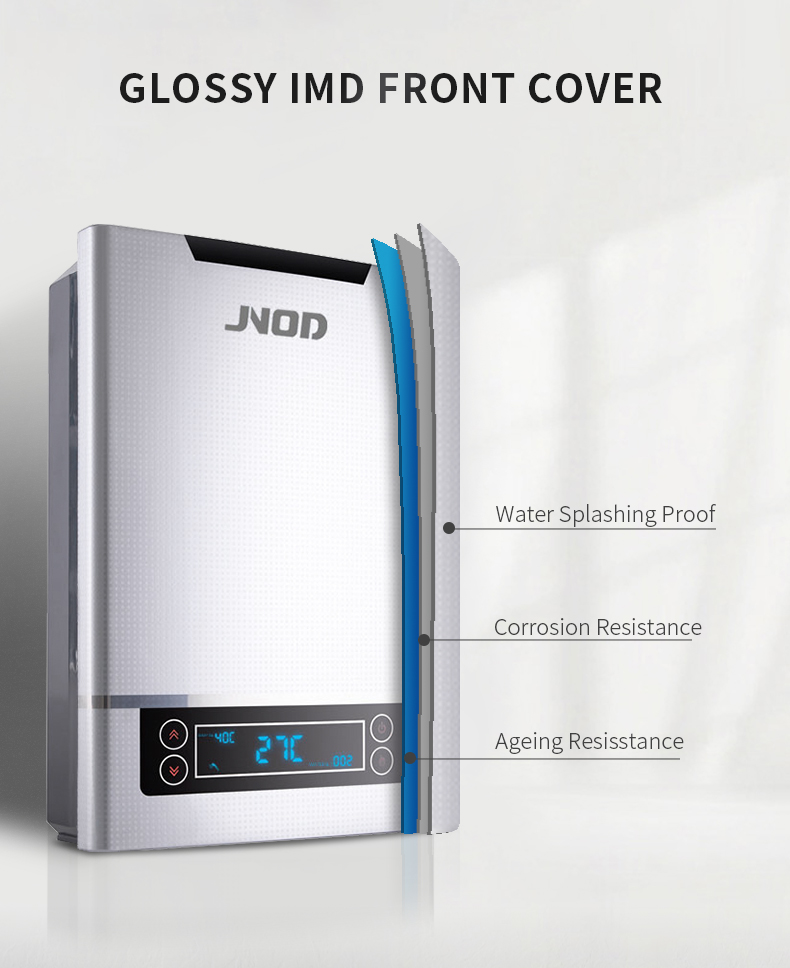

1. Glossy IMD front case, water splashing proof
2. Automatic thermostat

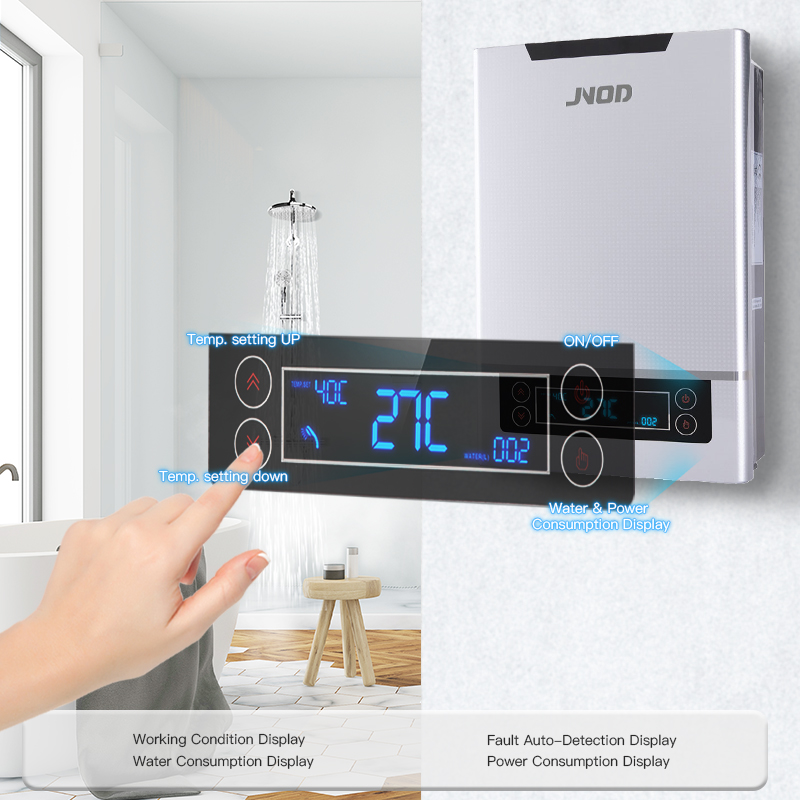

3. LED widescreen touch display screen
4. Power consumption and water consumption display
5. Fault auto-detection technique
|
||||
|
Model
|
FDCH
|
||||
|
Phase
|
1
|
3
|
|||
|
Rated Voltage
|
220V-240V
|
400V 3~
|
|||
|
Rated Power
|
6.5kW
|
7.5kW
|
9kW
|
11kW
|
9-24kW
|
|
Rated Current
|
28.3A
|
32.7A
|
39.2A
|
47.9A
|
3*13A - 3*34.6A
|
|
Rated Pressure
|
0.02-0.6MPa
|
||||
|

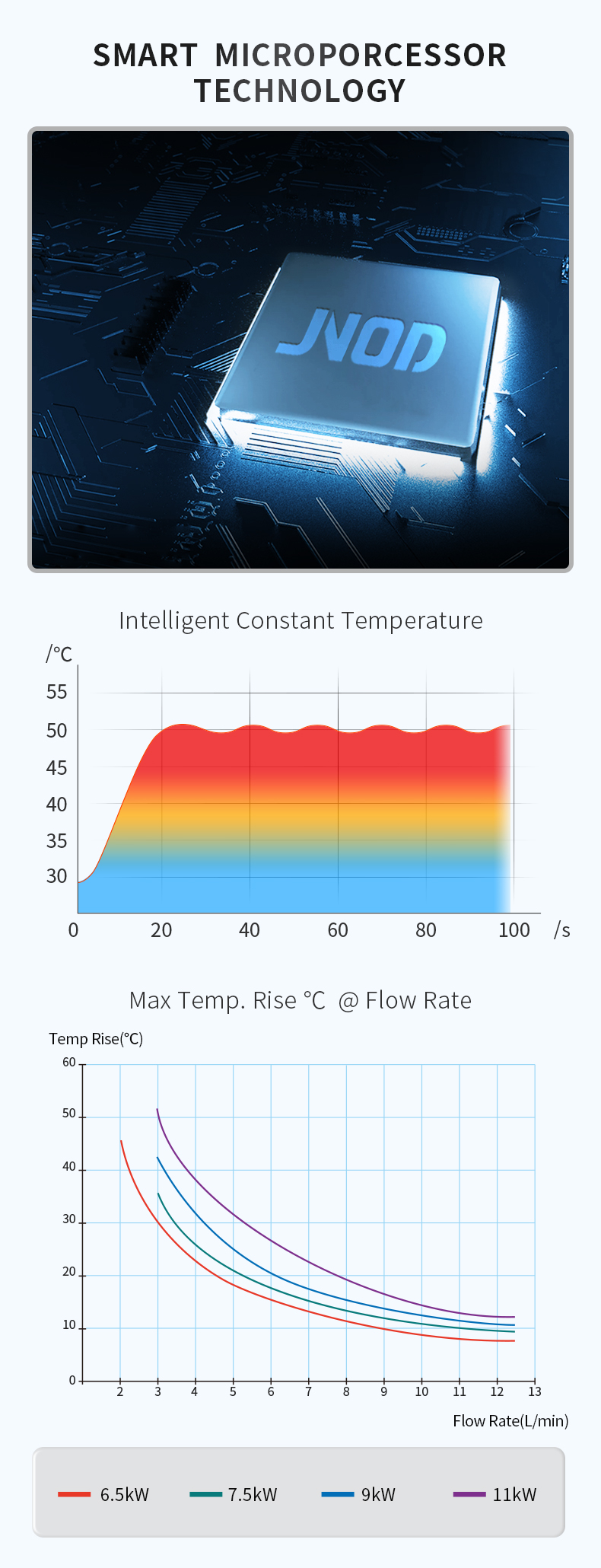

Efficiency △t=25℃
|
3.7L/min
|
4.3L/min
|
5.1L/min
|
6.3L/min
|
4.3-11.6L/min
|
|
Safety Class
|
IP25
|
||||
|
Temp. Setting Range
|
30-55℃
|
30-60℃
|
|||
|
Overheat Protection
|
67℃
|
72℃
|
|||
|
Connecting Wires Section
|
3*4mm2
|
3*6mm2
|
3*6mm2
|
3*10mm2
|
3.*1.5mm2 - 4*6mm2
|
|
Thermal Cut-off
|
90℃
|
||||
|
Pipe Section
|
G1/2“
|
||||
|
Product Size
|
385*260*86mm
|
||||
|
Gift Box Size
|
450*125*320mm
|
||||
|
Carton Size (4pcs/CTN)
|
530*335*465mm
|
||||
|
Loading Quantity
|
20'GP: 1476pcs 40'GP: 2952pcs 40'HQ: 3580pcs
|
||||
|
Certificate
|
CE CB LVD EMC
|
||||
|
Heating Element
|
Cast Aluminum
|
||||
|
Application
|
Whole House/ Kitchen/ Hotel/ Bathroom/ Home/ Car/ Garage/ Commercial etc
|
||||
|
Feature
|
1. Glossy IMD front case, water splashing proof
2. Automatic thermostat
3. LED widescreen touch display screen
4. Power consumption and water consumption display
5. Fault auto-detection technique
|
||||
| Product Code |
38024 |
|---|---|
| Category |
Domestic hot water |
