❉ 10.1" capacitive touch panel
❉ 1000nits brightness
❉ Auto Dimming
❉ Android 9.0
❉ Rich interfaces
❉ Wifi & BT
❉ Complying with ISO7637-2 Standards
Product Description
|
Model No.
|
PC-1010
|
|
CPU
|
Qualcomm Cortex-A53 64bit Octa-core 1.8GHz
|
|
Operating System
|
Android 9.0
|
|
ROM
|
16GB eMMC (64GB for optional)
|
|
RAM
|
2GB LPDDR3 (4GB for optional)
|
|

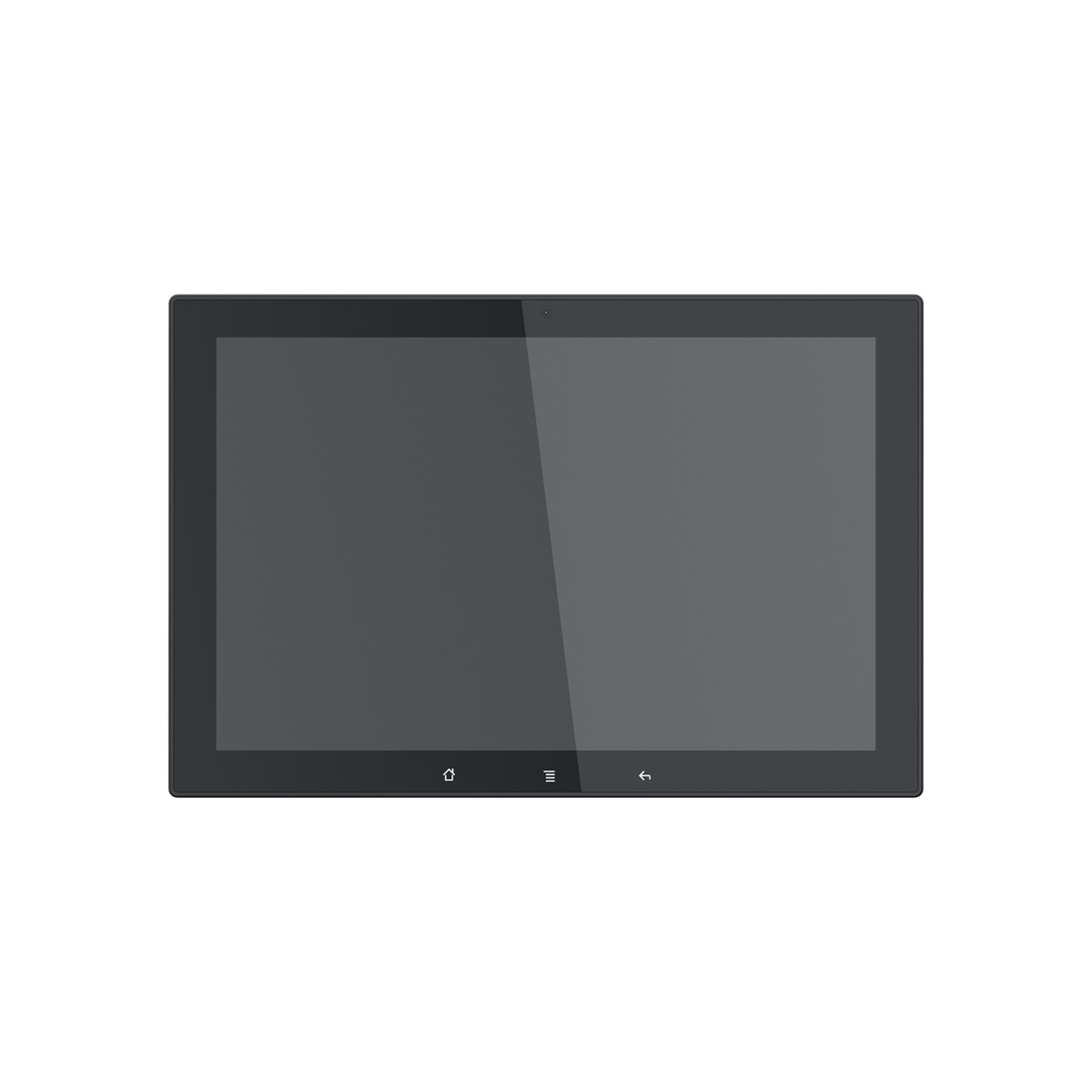

Display
|
10.1" panel with 1280*800 resolution and 1000nit brightness
|
|
Touchscreen
|
Mutli-point capacitive touchscreen
|
|

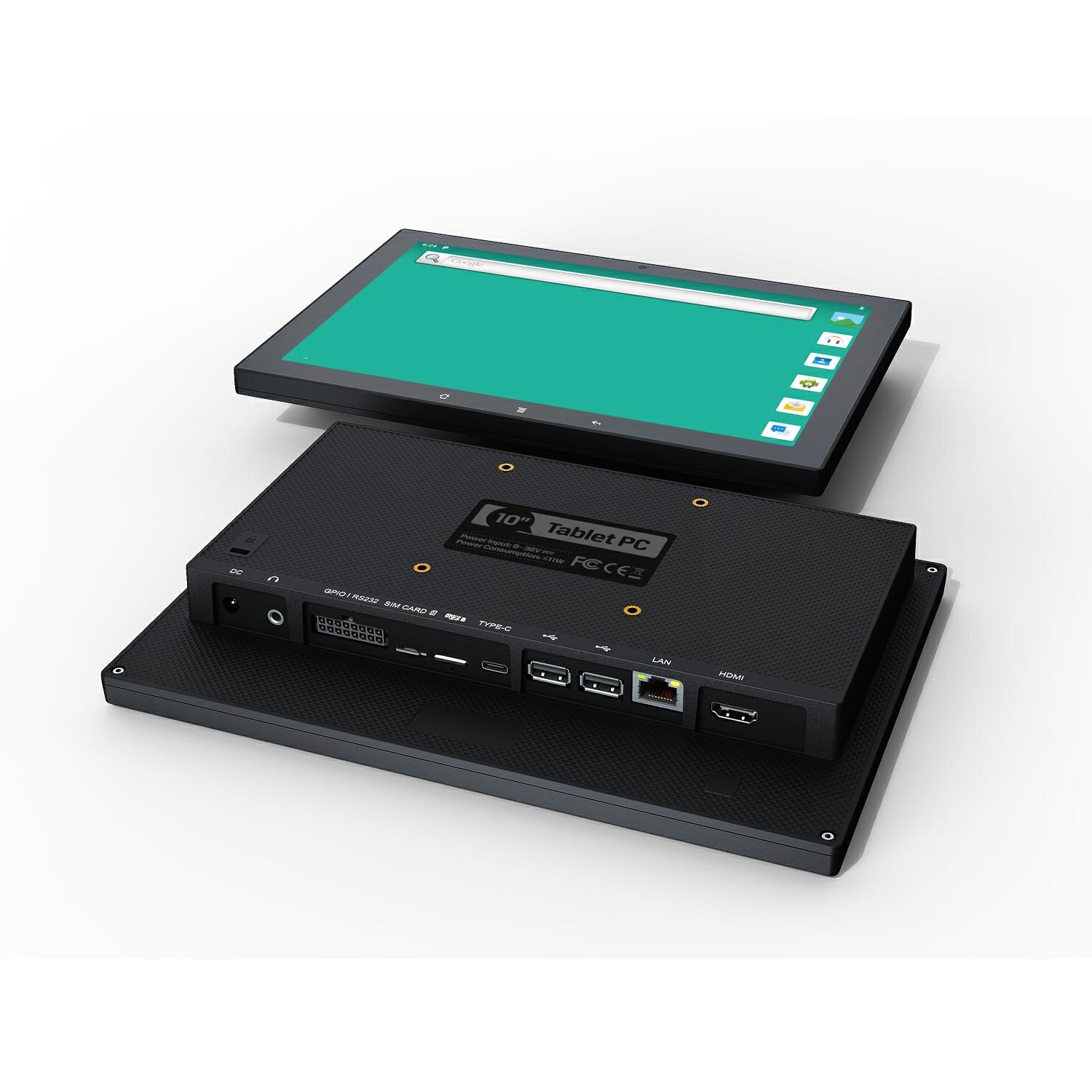

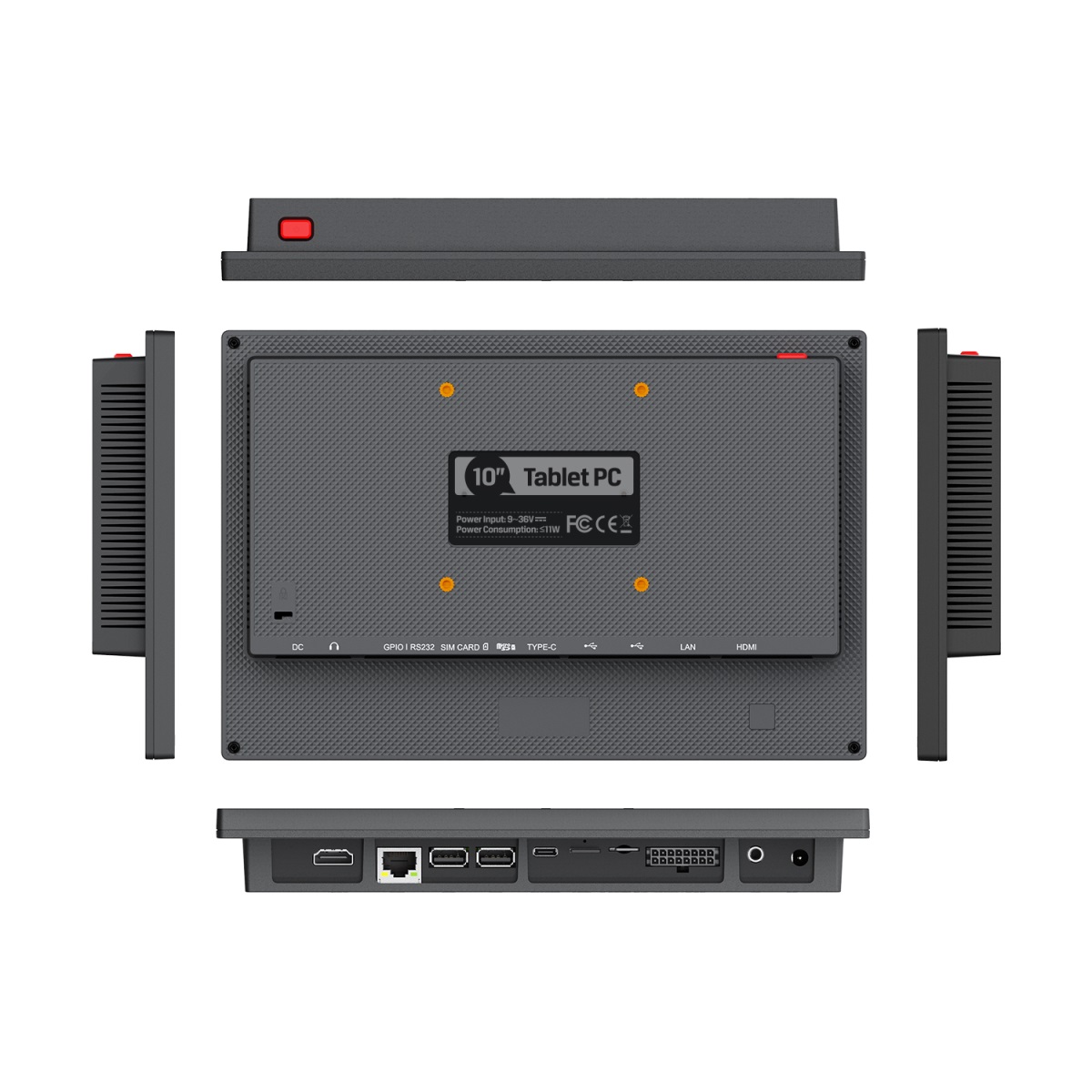

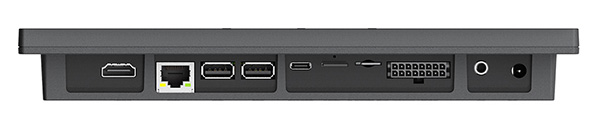

Interfaces
|
LAN (100M, POE for optional), GPIO*4, RS232*3, HDMI output,
USB Host*2, USB OTG*1, Earphone Jack
|
|
Extended Slots
|
SIM, Micro SD
|
|
Speaker
|
*1
|
|
Functions
|
Wifi & BT
|
|
Optional Functions
|
Cellular Network, GNSS (GPS & GLONASS),
Rear NFC, Front Camera
|
|

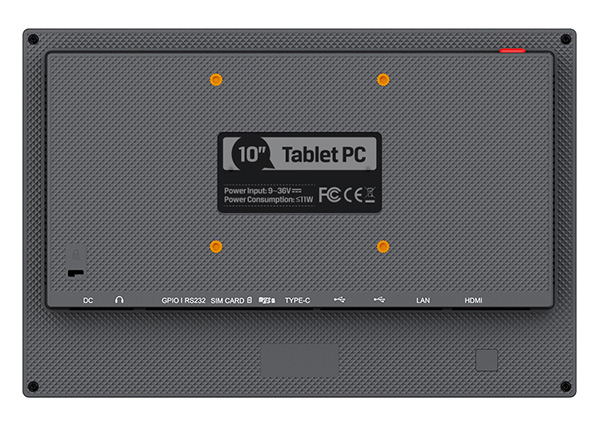

Power Supply
|
DC 9-36V
|
|
Dimension
|
249mm*166mm*32mm
|
|
Weight
|
980g
|
|
Operating Temperature
|
14℉~140℉
|
|
Storage Temperature
|
-4℉~149℉
|
-

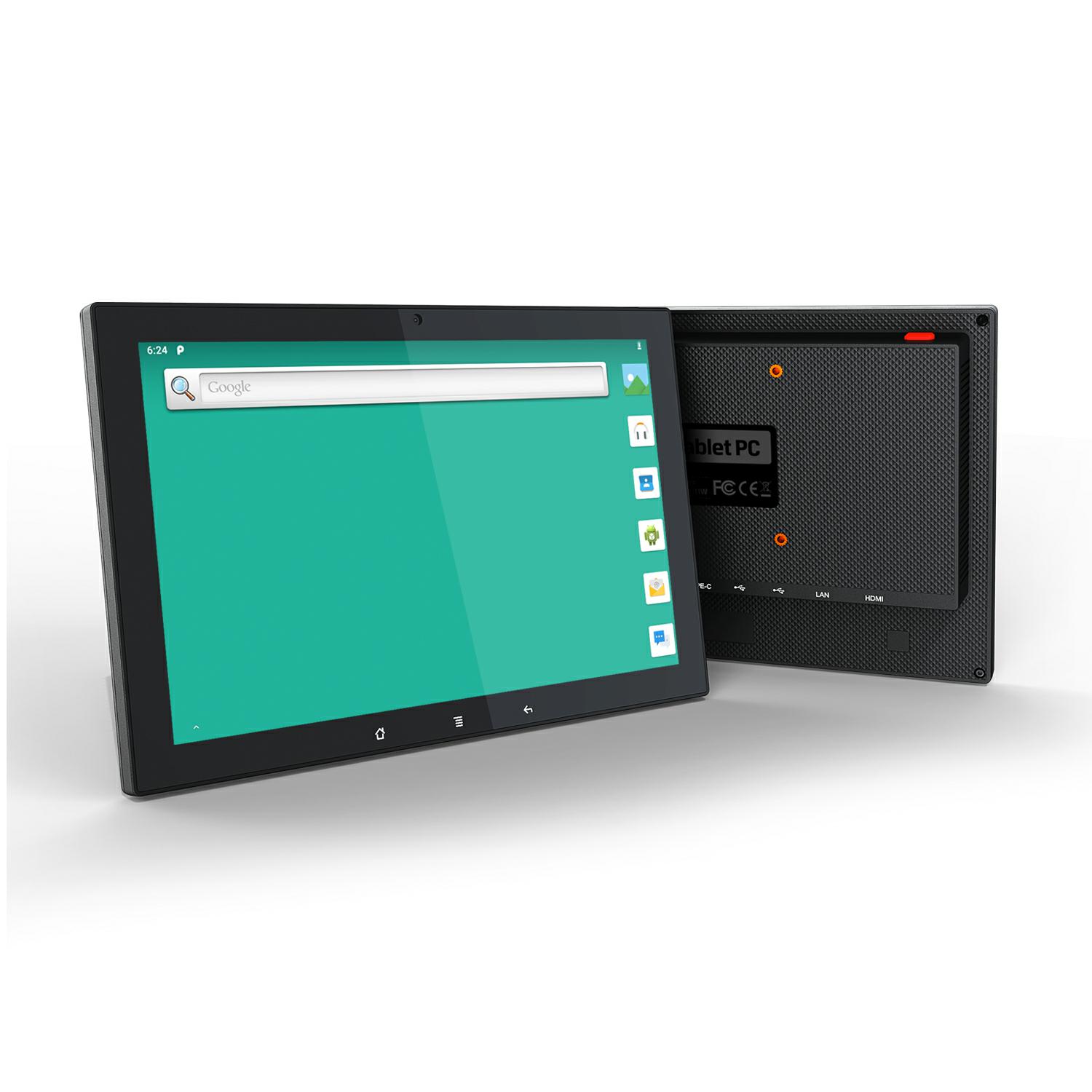

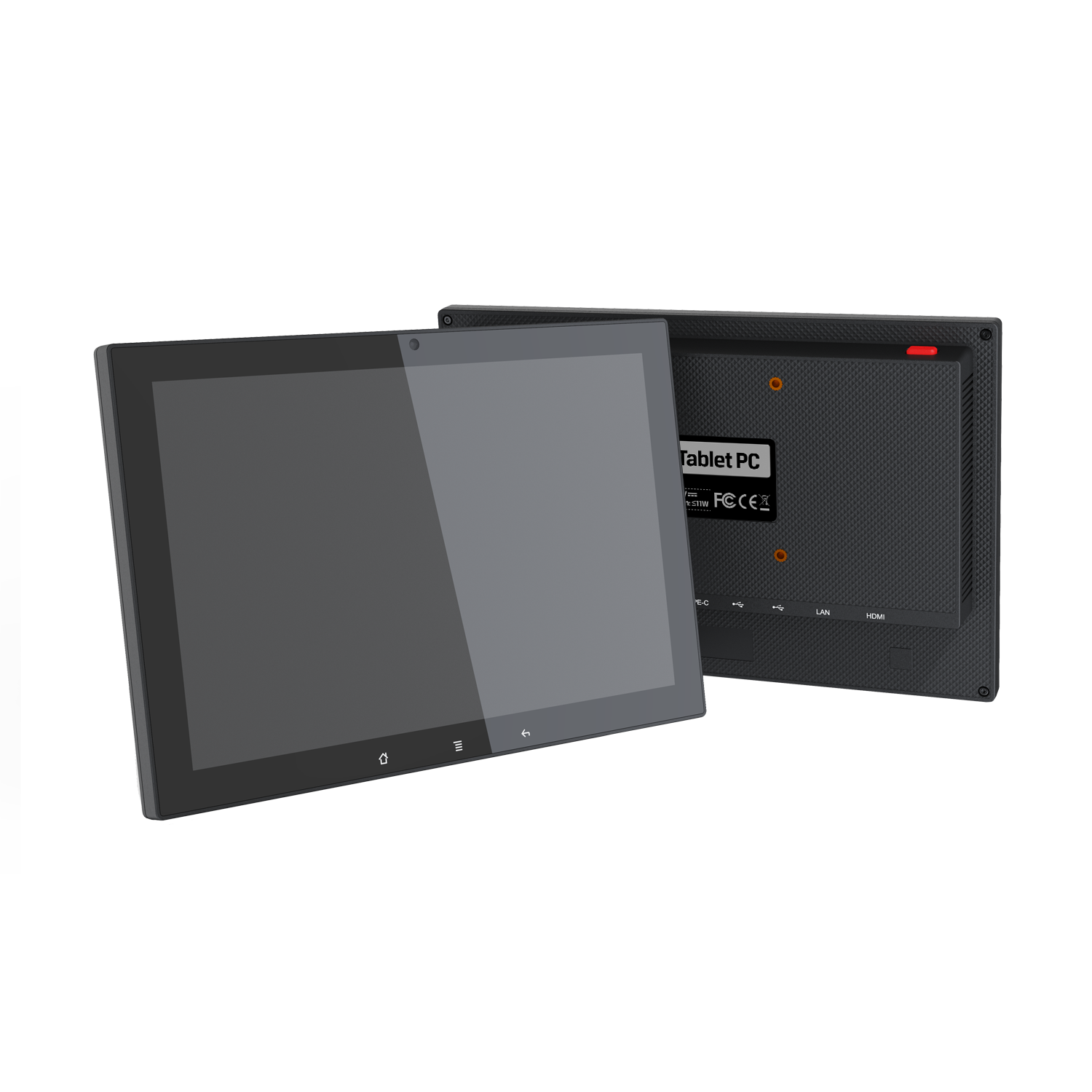

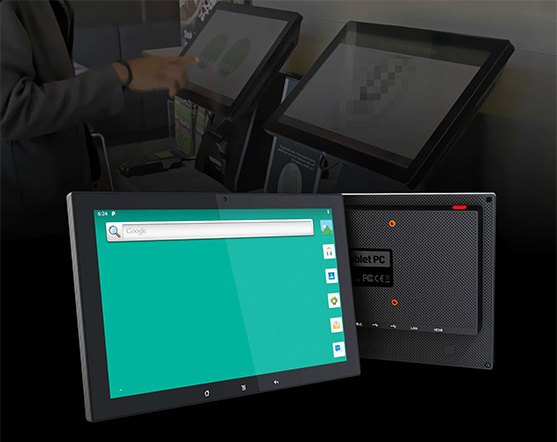

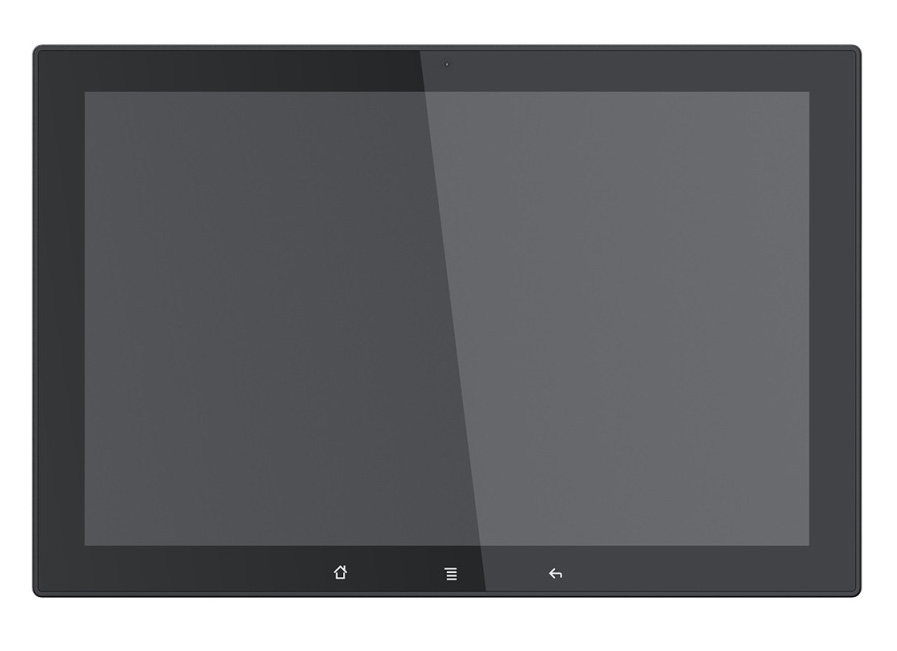

10.1" Android Panel PC
