Products Description
|
System
|
CPU
|
RK3288, Quad-core cortex A17
|
|
RAM
|
2GB
|
|
|
Internal memory
|
16GB
|
|
|
Operation system
|
Android 8.1
|
|
|
Touch screen
|
10-Point capacitive touch
|
|
|
Display
|
Panel
|
15.6" LCD panel
|
|
Resolution
|
1920*1080
|
|
|
Display mode
|
Normally black
|
|
|
Viewing angle
|
85/85/85/85(L/R/U/D)
|
|
|
Contrast ratio
|
800
|
|
|
Luminance
|
250cd/m2
|
|
|
Aspect Ratio
|
16:9
|
|
|
Network
|
WiFi
|
802.11b/g/n
|
|
Ethernet
|
100M/1000M ethernet
|
|
|
Support BT
|
BT 4.0
|
|
|
Interface
|
Card slot
|
TF card
|
|
USB
|
USB host*2
|
|
|
USB
|
USB slave
|
|
|
USB
|
USB for serial(RS232 format)
|
|
|
RJ45
|
Ethernet interface (POE function optional IEEE802.3at, POE+, class 4, 25.5W )
|
|
|
Power jack
|
DC power input
|
|
|
Earphone
|
3.5mm earphone + Micphone
|
|
|
Media play
|
Video format
|
MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
|
|
Audio format
|
MP3/WMA/AAC etc.
|
|
|
|
jpeg
|
|
|
Other
|
VESA
|
100x100mm
|
|
NFC
|
Optional, NFC 13.56MHz, ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica
|
|
|
4G LTE
|
Optional
|
|
|
Speaker
|
2*2W
|
|
|
Microphone
|
yes
|
|
|
Camera
|
Front camera, 2.0M/P
|
|
|
Working temp
|
0--40 degree
|
|
|
Certificates
|
CE, FCC, RoHS
|
|
|
Language
|
Multi-language
|
|
|
Accessories
|
Adapter
|
Adapter, 12V/2A
|
|
User manual
|
yes
|

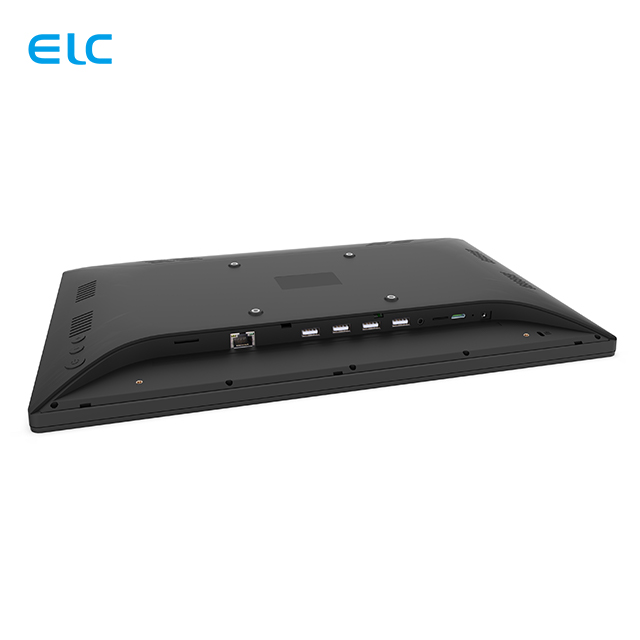

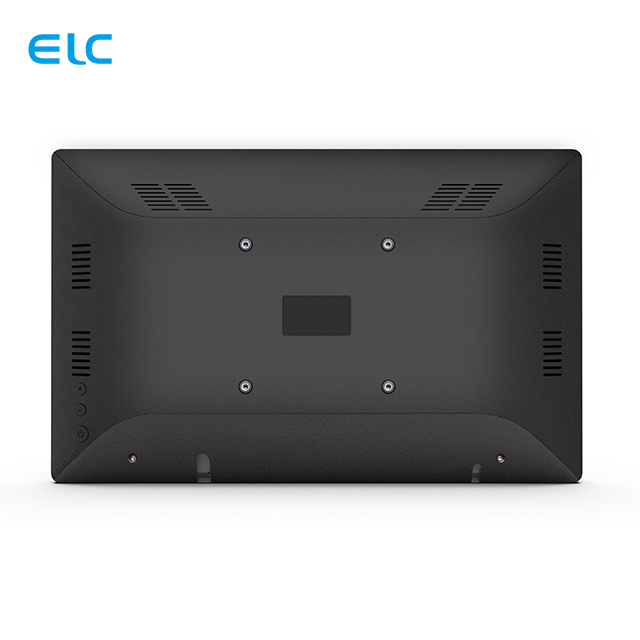

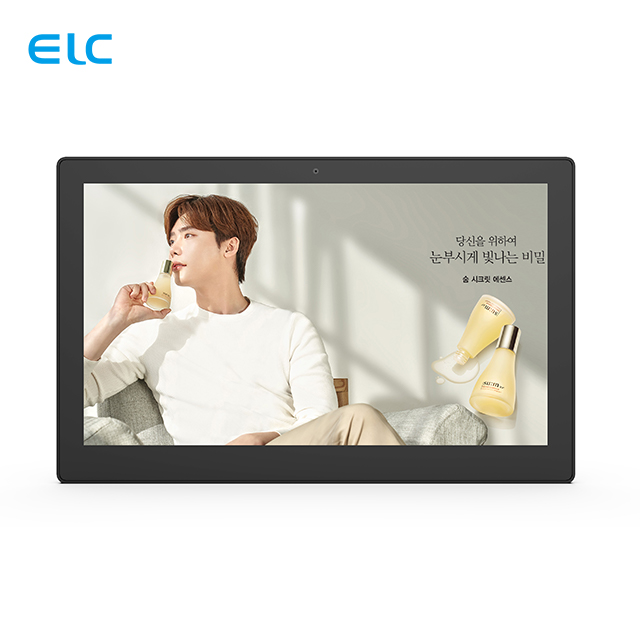

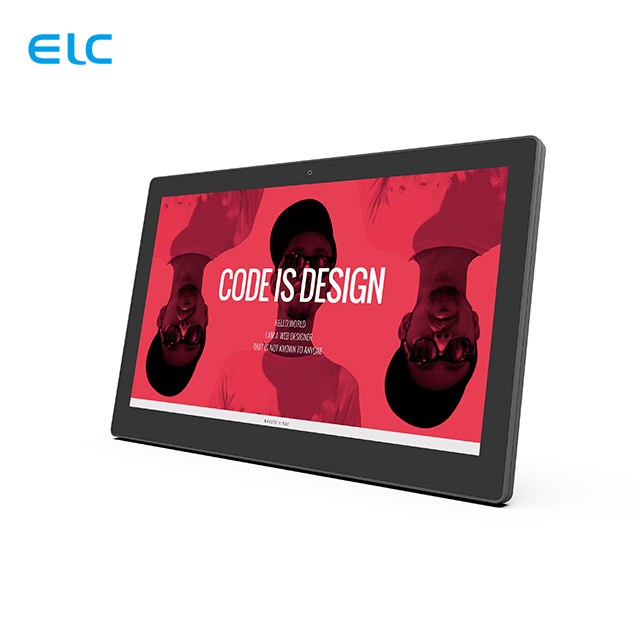

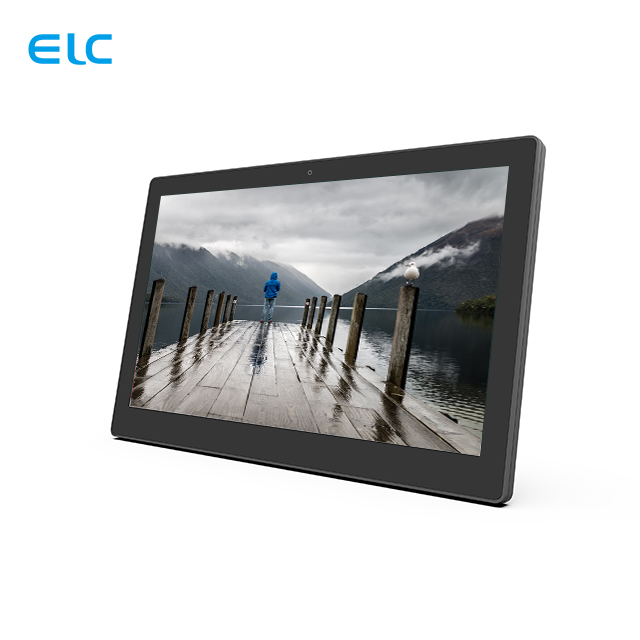

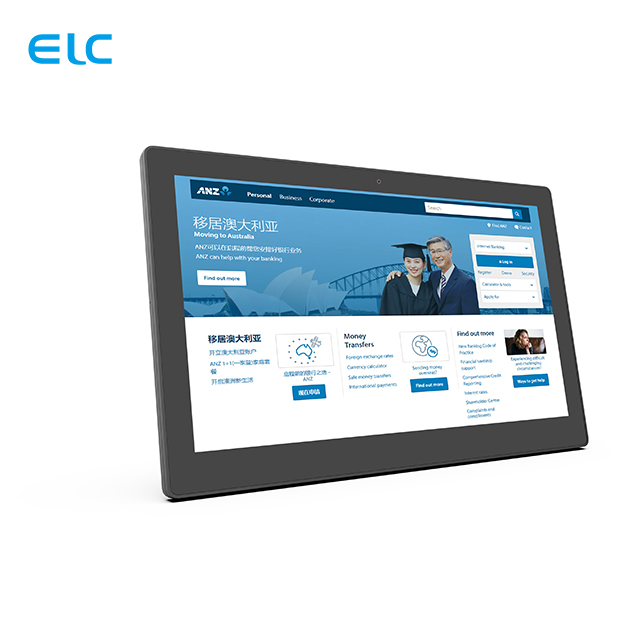

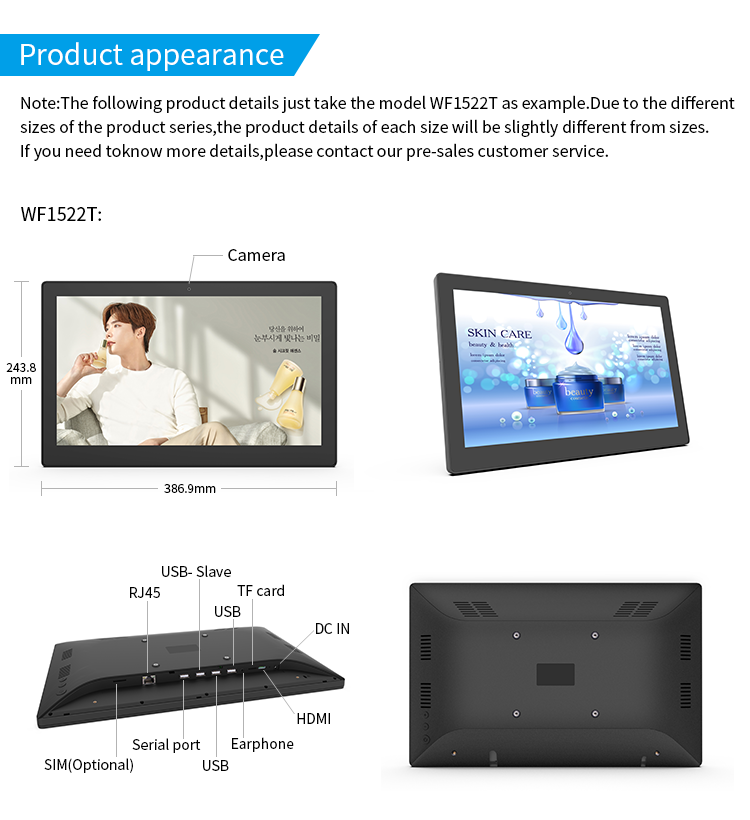

Details Images
| Product Code |
36522 |
|---|---|
| Category |
Smart home |
