Specification
|
Product name
|
MIQ Manufacturer Smart Phone Charger 1000W solar power station emergency UPS backup solar power system home generator
|
|
Model
|
M1000
|
|
Rated Power
|
1000W
|
|
PATENT NO.
|
2022300018087
|
|
Capacity
|
999Wh (3.7V/270000mAh)
|
|
Battery
|
Li-ion3.7V/4500mah/21700*60
|
|
Power Indicate
|
LCD display
|
|
LCD Display
|
Battery remaining capacity, Battery fault, total output power,Over temperature,input power
|
|
DC Input
|
DC24V/6.25A(150W max,adapter with UL,CCC,CE,PSE,FCC)
|
|
DC fully Charging Time
|
About 6～8H
|
|
Solar Controller Mode
|
MPPT
|
|
Solar Charging Input
|
18-23V/8A(150W max)
|
|
Charging Temperature Range
|
32~104℉(0℃~40℃)
|
|
USB Output
|
Type-C output:PD 60W(5V3A,9V3A,12V3A,15V3A,20V3A)*1
|
|
USB output:QC3.0(18W/5V3A,9V2A,12V1.5A)*3(total 48W ）
|
|
|
Cigarret Lighter output
|
12V/10A(120W)
|
|
DC output
|
12V/5A/DC5521*2(total 120W ）
|
|
Wireless Charge Output
|
10W
|
|
LED
|
5W*2(total 10W Max）
|
|
SOS,flshlingt
|
|
|
AC Output
|
Output waveform:pure sine wave
|
|
Output voltage:110V*2(US/JP) or 220V*2(EU/UK/AU/CN) (AC output voltage and frequency are customized,according to different countries and regions.Please refer to the actual product)
|
|
|
Output frequency: 50/60Hz
|
|
|
AC continuous output: 1000W
|
|
|
|
Peak AC output:2000W
|
|
Discharging Temperature Range
|
14~104℉(-10~40℃ )
|
|
Product size/Weight
|
328*221*263mm/about 9Kg
|
|
Protections
|
over-charging, short-circuit ,low-voltage,over-temperatature and over-discharging protection
|
|
Color
|
Oranger+gray,Blue+gray,Red+gray,Green+gray (Different color selection)
|
|
Housing Material
|
ABS+PC ,TPU ( fireproofing V0)
|
|
Operation Humidity
|
10%~90%
|
|
Warrantly
|
12 months
|
|
Standard Package Include |
1*M1000 portable power supply, 1*AC input power supply,1*User Manual, ,color box packaging,1*MC4 charging cable, 1*vehicle
charging cable,1*straps |
|
Apply To
|
Home emergency, small household appliances, digital products (such as UAV, mobile phone, computer, notebook, camera, handheld head, car refrigerator, etc.), long-distance self-driving travel, outdoor camping, lighting, picnic, wild fishing, environmental monitoring, geological exploration, car electricity, medical equipment and other scenes
|

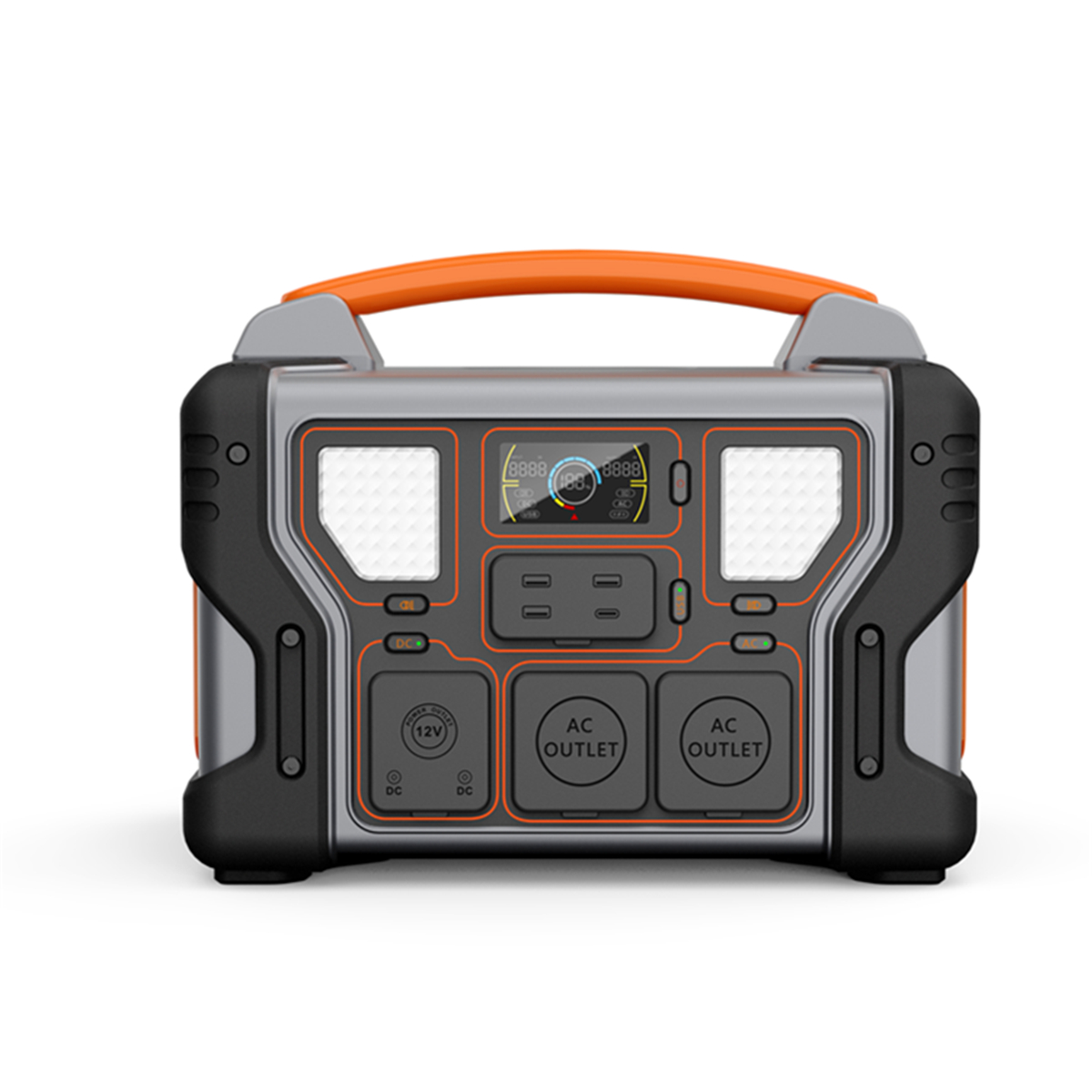

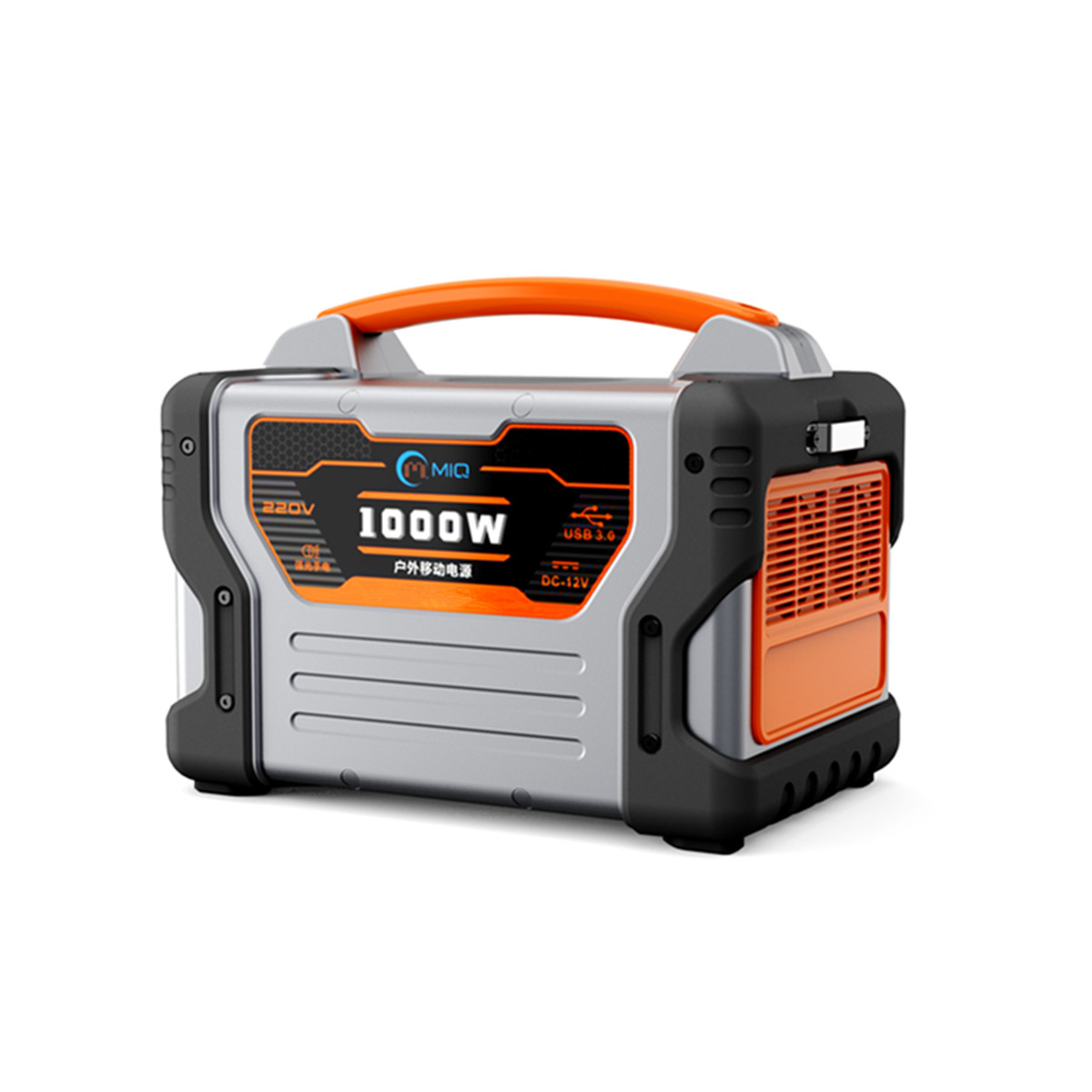

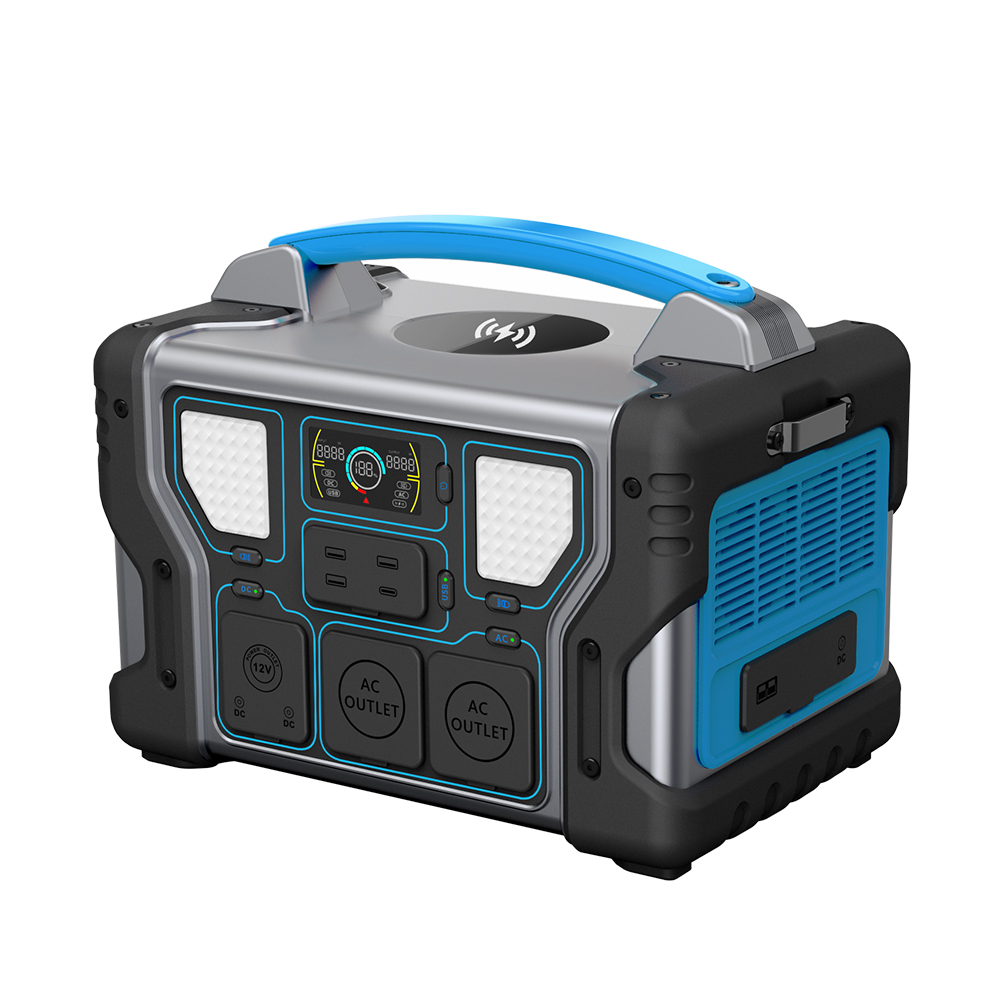

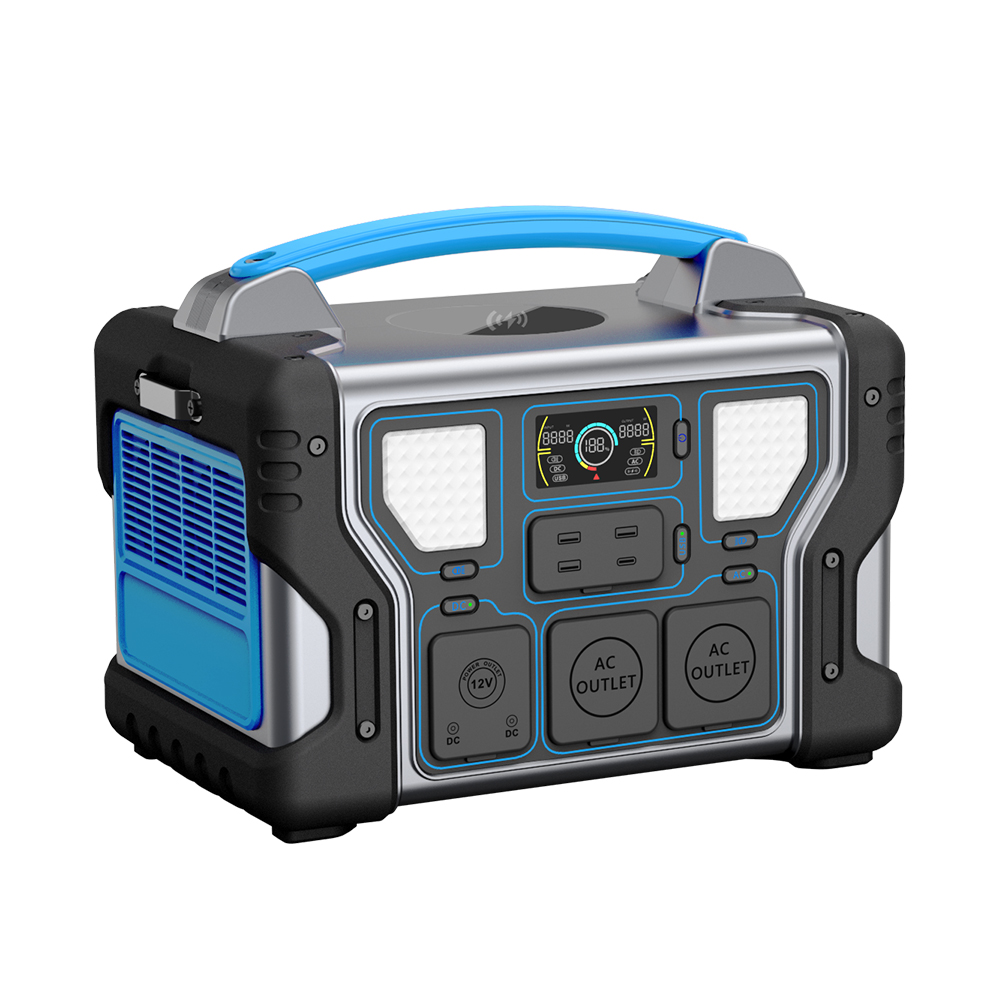

Details Images
Why Use Lithium Portable Power Station?

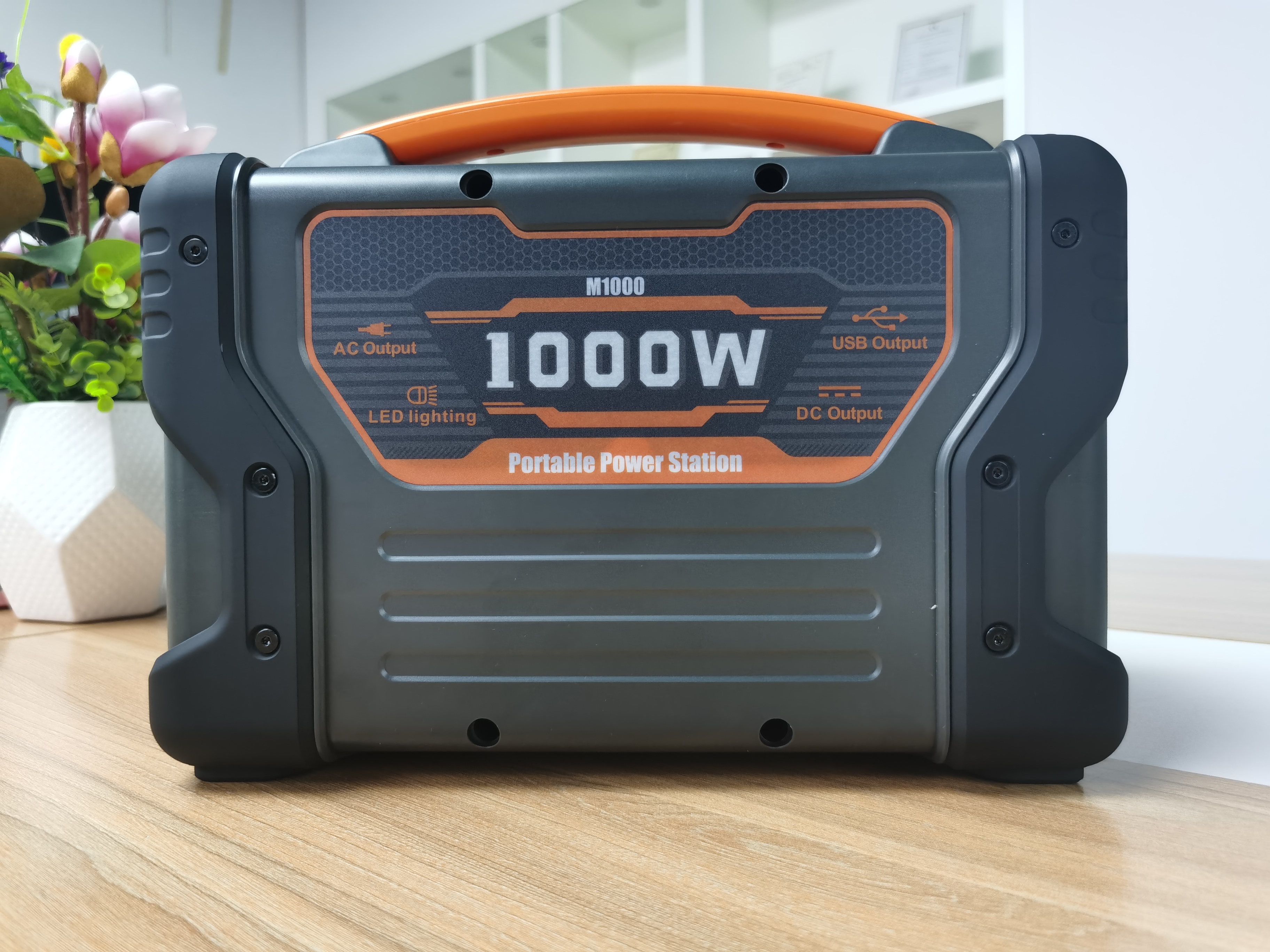

This 1000W Portable Power Station is a multi-functional power supply based on lithium battery, which can output USB, TYPE C, DC, AC, covering almost all kinds of small and medium-sized digital equipment, household appliances, and onboard emergency appliances. It is a flexible power supply for home or outdoor use. When you are on an outdoor journey, or suffering frequent power outages, or stay in no power area, this portable power station provides you reliable backup power. It can also be combined with solar panels and store energy from the sun to supply power for a long time in areas outside the city.
MIQ Manufacturer Smart Phone Charger 1000W solar power station emergency UPS backup solar power system home generator

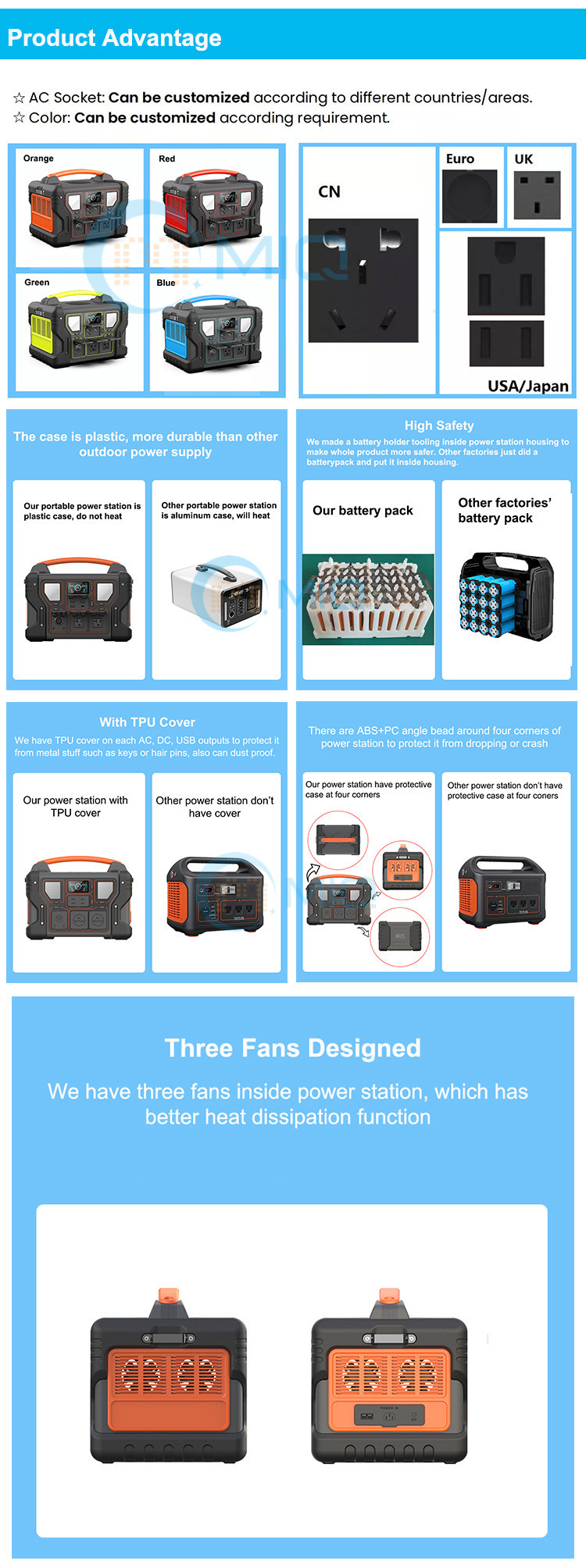

1. We used 3C power battery instead of normal lion battery
2. Compared to others' 1000WH power station, ours are more small in size because of our high density battery
3. High safety: We made a battery holder tooling inside power station housing to make whole product more safer.
other factories just did a battery pack and put it inside housing.
MIQ Manufacturer Smart Phone Charger 1000W solar power station emergency UPS backup solar power system home generator

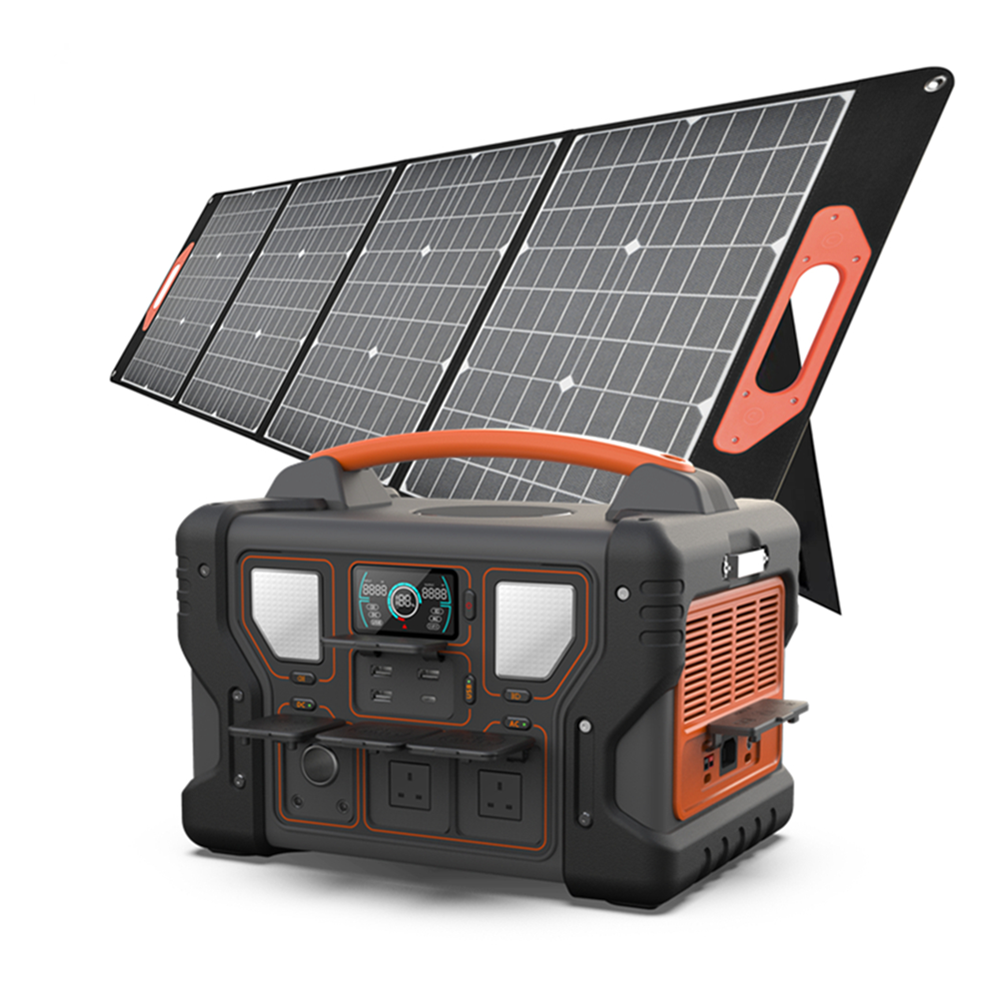

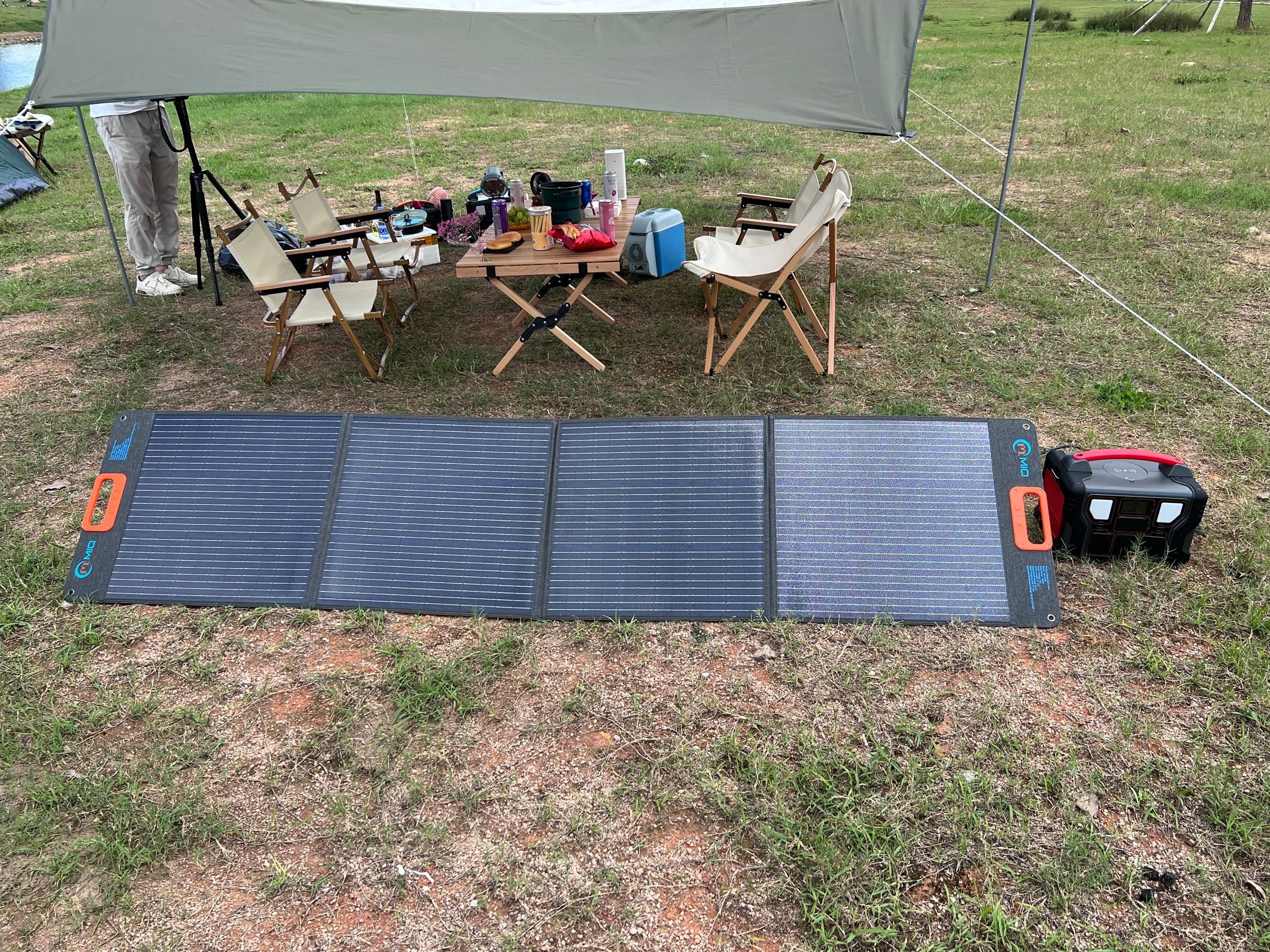

Our MIO portable power station can be charged by solar panels, wall adapter and car where there is sunshine, there is power.
If you use 200W solar panels, it will take around 6-7hours to charge 1000wh fully
If you use 200W solar panels, it will take around 6-7hours to charge 1000wh fully
There are ABS+PC angle bead around four corners of power station to protect it from dropping or crash

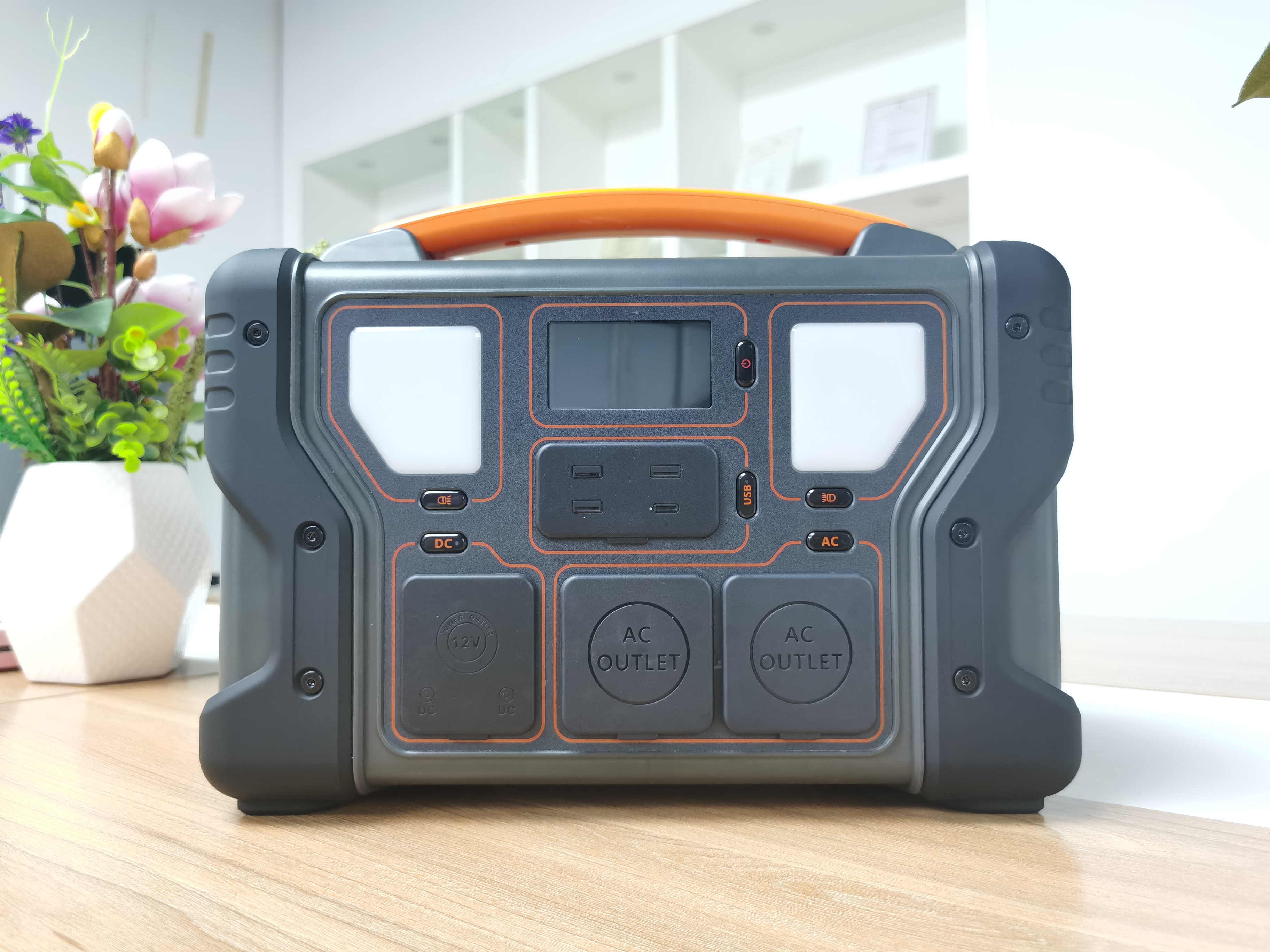

We have TPU cover on each AC, DC, USB outputs to protect it from metal stuff such as keys or hair pins

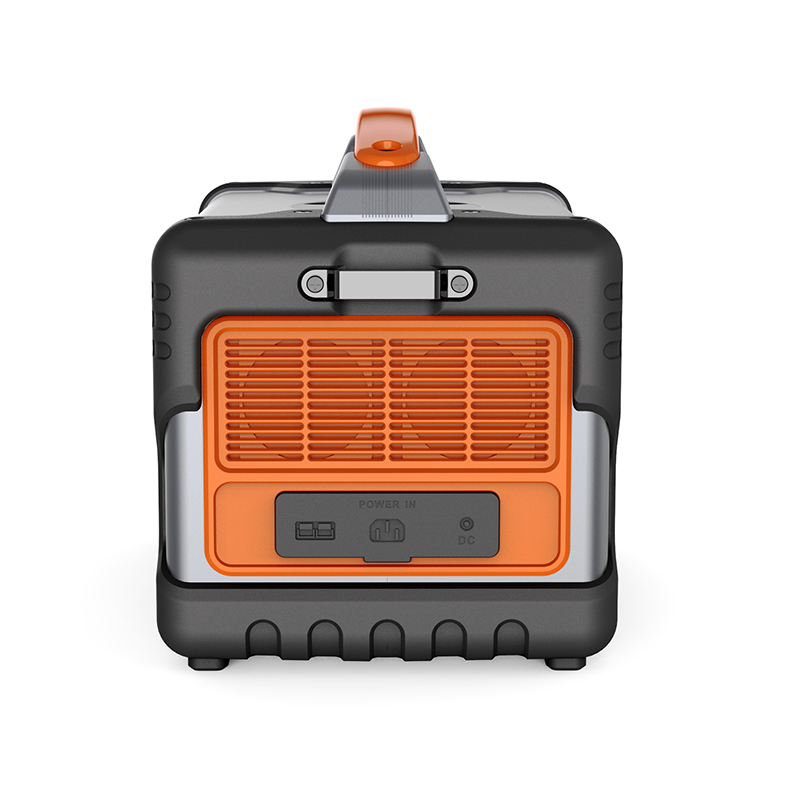

We have three fans inside power station, which has better heat dissipation function
