Smart Android Wall Amplifier Parameters:
• Power Supply: AC220V(50HZ) compatible 90V-250V
• Load: 4-8Ω
• RMS Output Power: 8x25W
• Audio S/N Ratio: ≥98dB
• Audio Zone: 2 zone for audio
• Zone Volume Control: 2 zones
• Wi-Fi: 2.4G up to 20 meters
• Infrared Remote Control Distance: up to 10 meters
• Blue-tooth Distance: Up to 10 meters
• Blue-tooth Version: 5.0
• RAM: 1GB/2GB
• ROM: 8GB/16GB
• Display: 7 inch IPS Display
• Resolution: 1024*600
• Audio Input: 1 group
• Audio Output: 1 group
• Wire Box Size: 181*114*70mm
• Dimension: 186.5*122*48.8mm

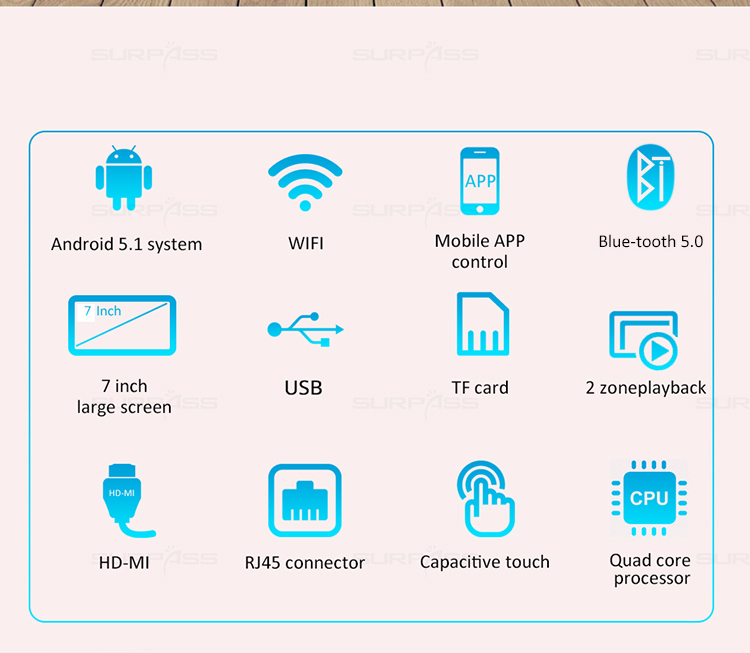

Smart Android Wall Amplifier Features:
1. Cortex1.2G quad-core CPU, 7inch multi-touch capacitive screen 1024*600 IPS HD resolution.
2. Android 5.0 system.
3. The APK software supports remote control of mobile devices such as mobile phones and pads.
4. The installation of APP on the mobile device can turn the mobile device into a wireless mouse, flying squirrel, wireless
trackpad, remote control, wireless keyboard, wireless camera, wireless microphone, and the same screen mirroring.
5. Support DLNA, Airplay, Qplay and other protocols, you can push mobile phone music, videos, pictures, files, APK to the wall amplifier panel for playback or installation.
6. Support for pairing with external Blue-tooth devices such as mobile phones to achieve audio playback, you can control the playback of music from external Blue-tooth devices in two directions, and you can set Blue-tooth to turn on or off.
7. Support HD HDMI output 1080P.
8. Support external equipment to control the machine through RS485 (optional function).
9. Eight-channel speaker output, support two zones volume adjustment, two zones treble and bass adjustment separately.
10. Support two zones audio source to play separately (such as zone-one to play local audio source, and zone-two to play Blue-tooth audio source)
11. Support audio input function.
12. Support audio output function.
13. Support subwoofer access.
14. Support the function of network set-top box, and watch online movies and TV programs at will.
15. Support TF card playback.
16. Support WIFI connection.
17. Support various types of Android software installation.
18. Support infrared remote control.
19. Support multi-languages as setting.

1. Power Supply Terminal: Compatible AC90-250V power supply, power cable with two strands of copper core wire, single strand copper core over 0.75mm².
2. SPK R + SPK R-: Four Speakers: Speaker wire (200 cores, commonly known as gold and silver wire), RVH2x100, RVH2x200.
3. AUX L + AUX R + GND: audio input wire: Audio wire (three core shielded wire: commonly known as microphone wire). RVVP2x0.5, RVVP2x0.75
4. RJ45 wired network port: Cat5e network cable.
5. High-definition video output: HDMI high-definition cable.
6. Bass output: audio cable, RVVP2x0.5, RVVP2x0.75.
7. OUT R + OUT L + GND: audio output wire: Audio wire (three core shielded wire: commonly known as microphone wire). RVVP2x0.5, RVVP2x0.75
8. SPK R + SPK R-: Four Speakers: Speaker wire (200 cores, commonly known as gold and silver wire), RVH2x100, RVH2x200.

Model: SP-CR310
Specifications:

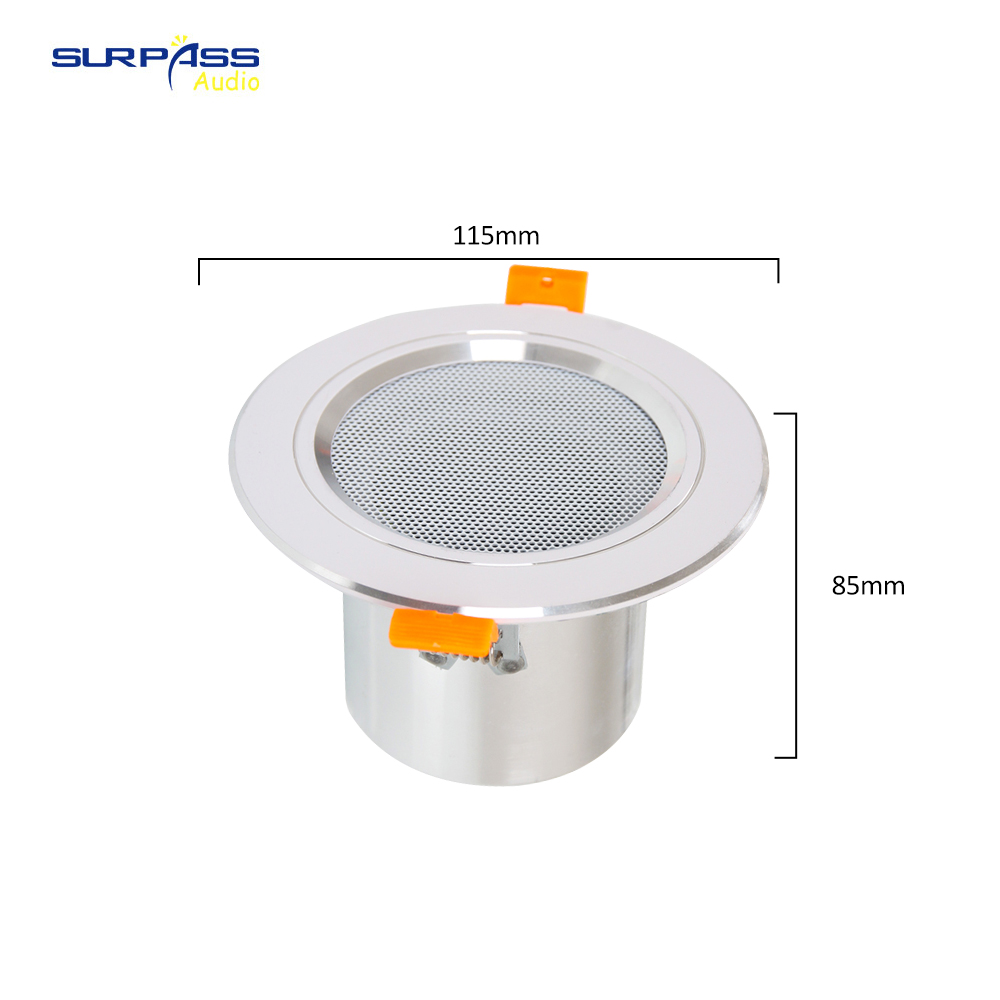

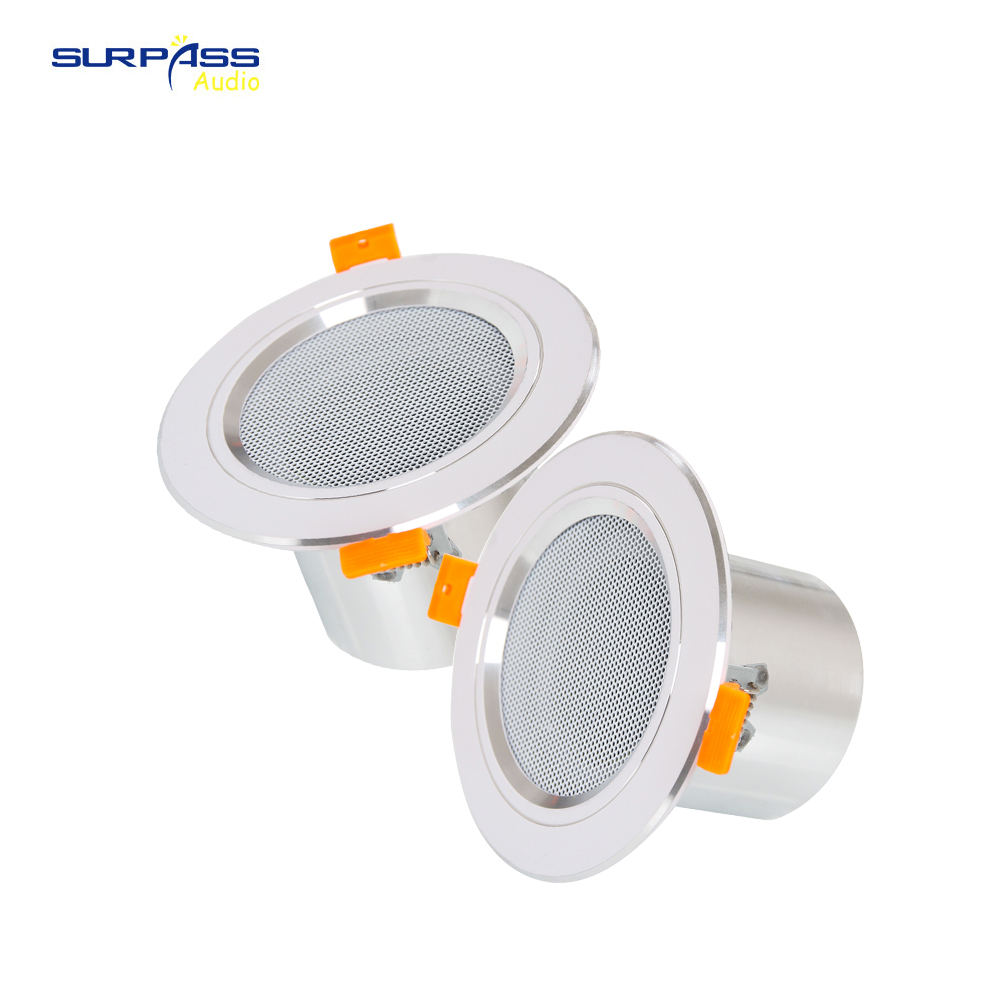

In-ceiling Speaker Features:
• 3'' Full range speaker driver
• Aluminum cylinder shell
• Mini size, big sound
• Suitable for home/hotel/retail/restaurant etc. background music playing
• Need to connect to amplifier by speaker cable

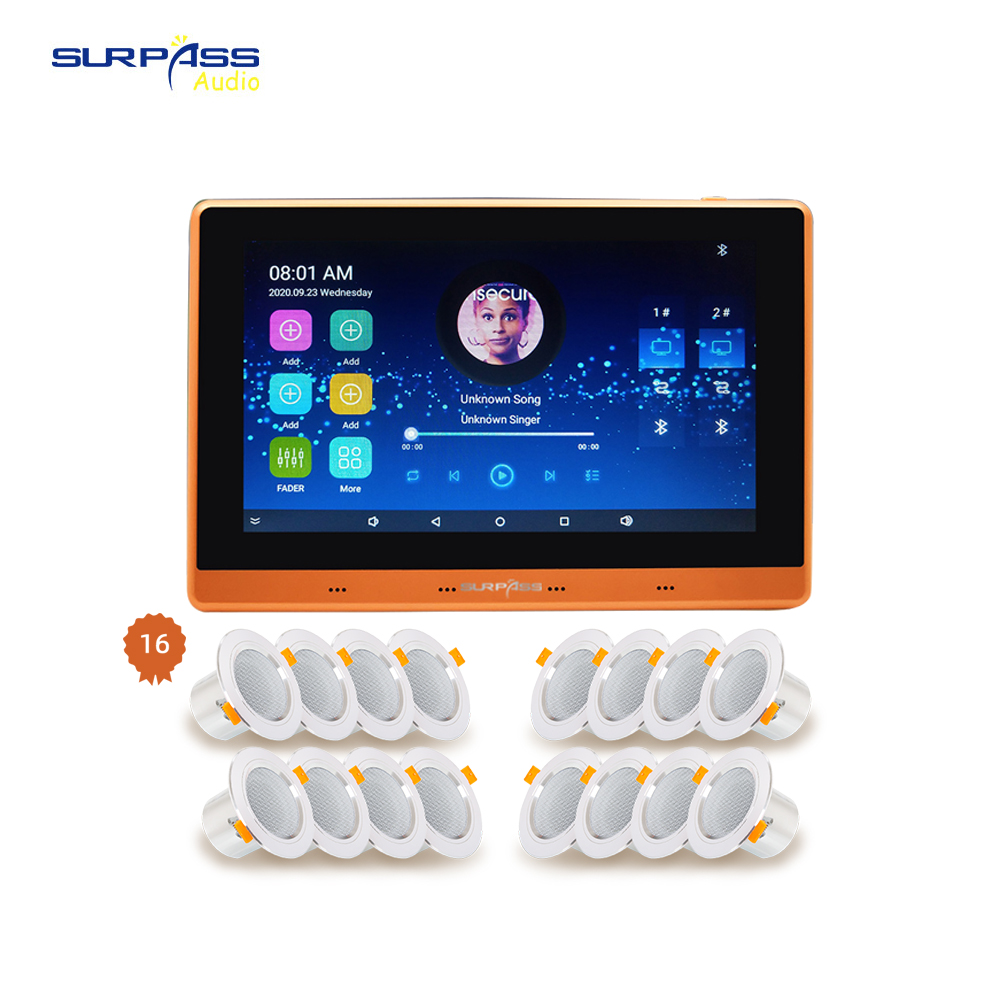

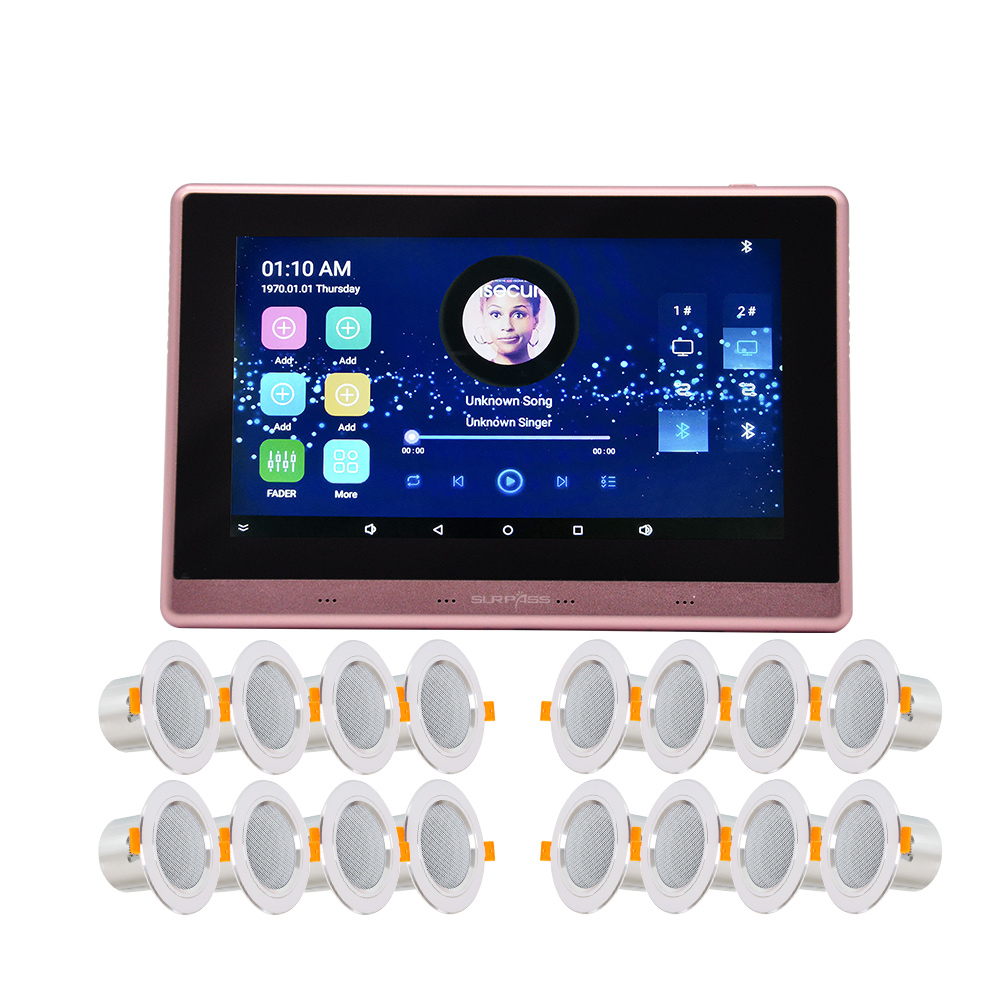

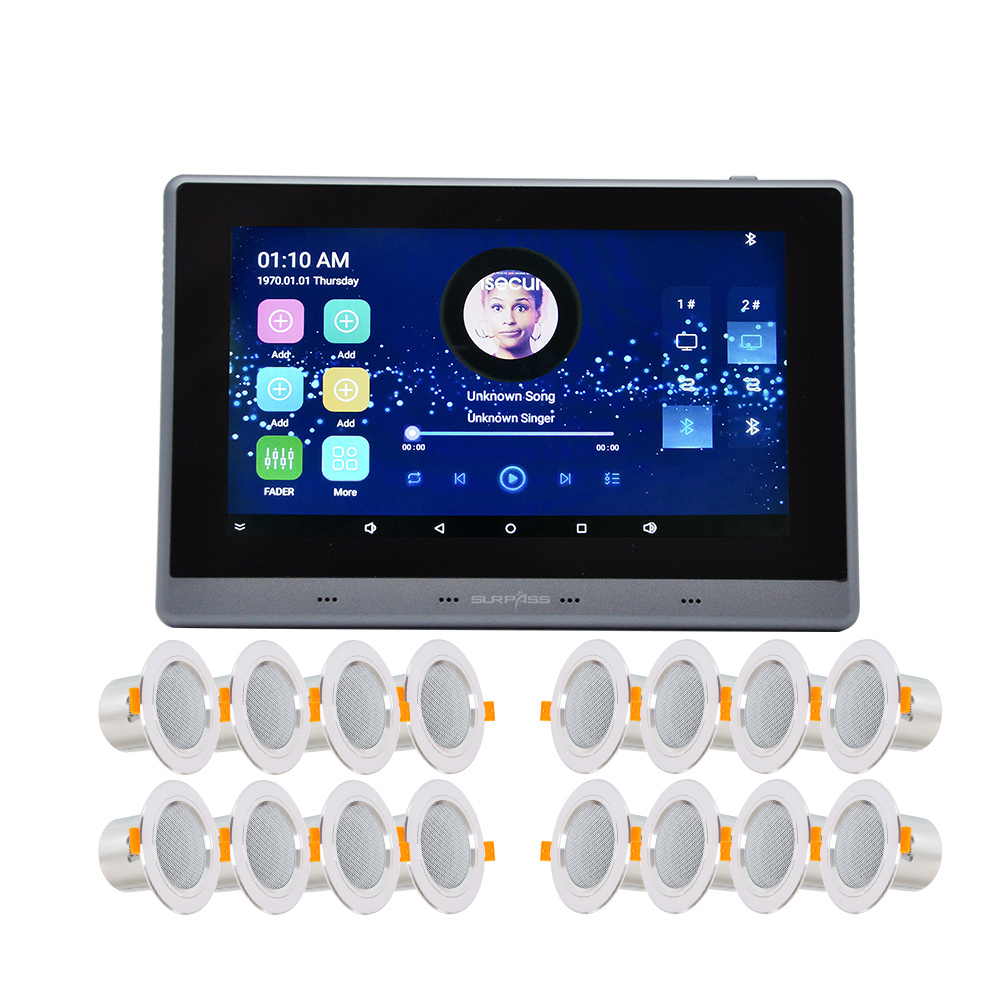

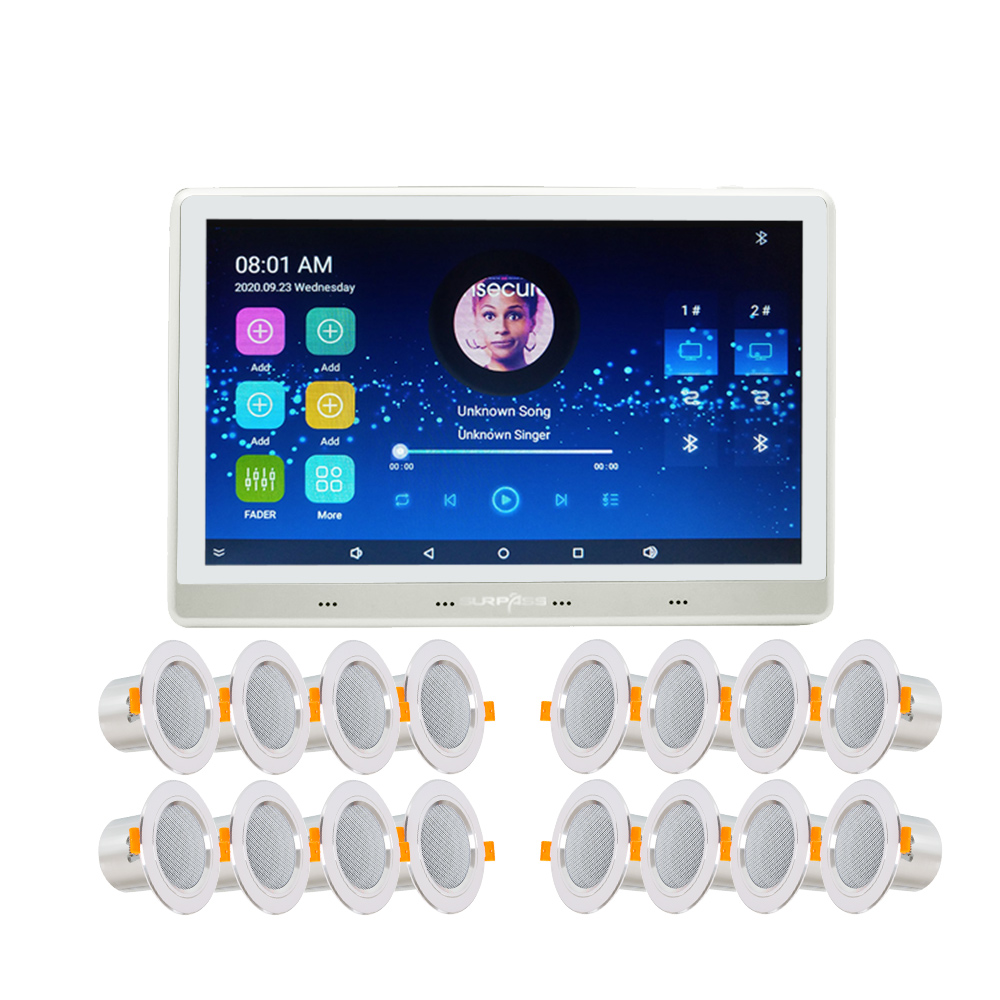

Package include:
1. amplifier*1 （model number：SP-PW7825M）
2. ceiling speaker * 16（model number：SP-CR310）
3. remote control*1
4. mounted box, bracket and screw
