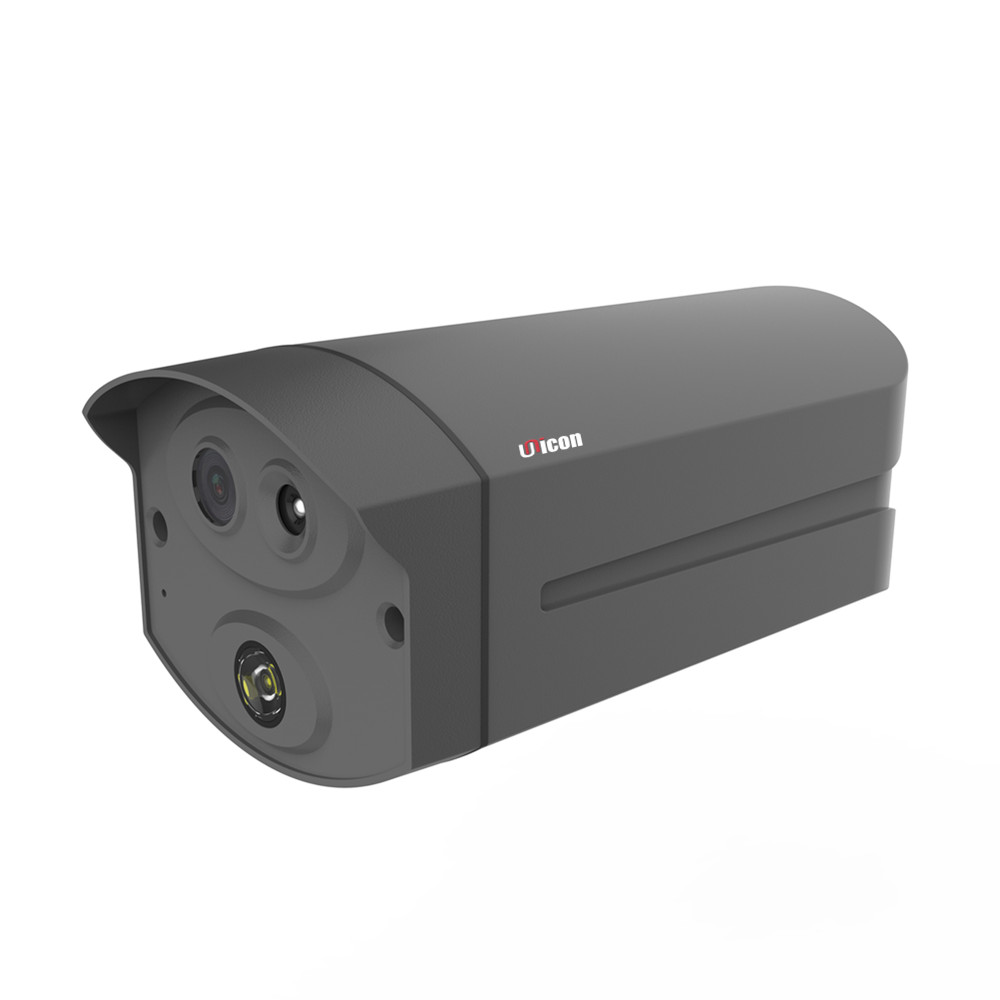

New Outdoor Attendance High Resolution Infrared Imaging Industrial AI Fever Measurement Flir Thermal Camera
Key Features:
Thermal Image Module:
1. Thermal Image Pixel 256*192
2. Sensor Size 12μm
3. Non-contact Temp Measurement,Accuracy±0.3℃
4. Temp Range:-15℃~150℃
5. Max Temp,Min Temp,Average Temp,Temp data OSD Overlying display
6. Full-screen temperature measurement ,Auto tacking the Max temp and Min Temp of full screen
7. Support Manual Temp range selection.
8. Support white heat, black heat, fusion, rainbow, autumn, noon, iron red, amber and other pseudo-color adjustable
Visible Light module
1. 1/2.8” 2.0M CMOS Image sensor;
2. 0.005Lux/F1.2 color,0.001Lux/F1.2 B/W;
3. Max resolution up to 1920x1080/30fps;
General Function

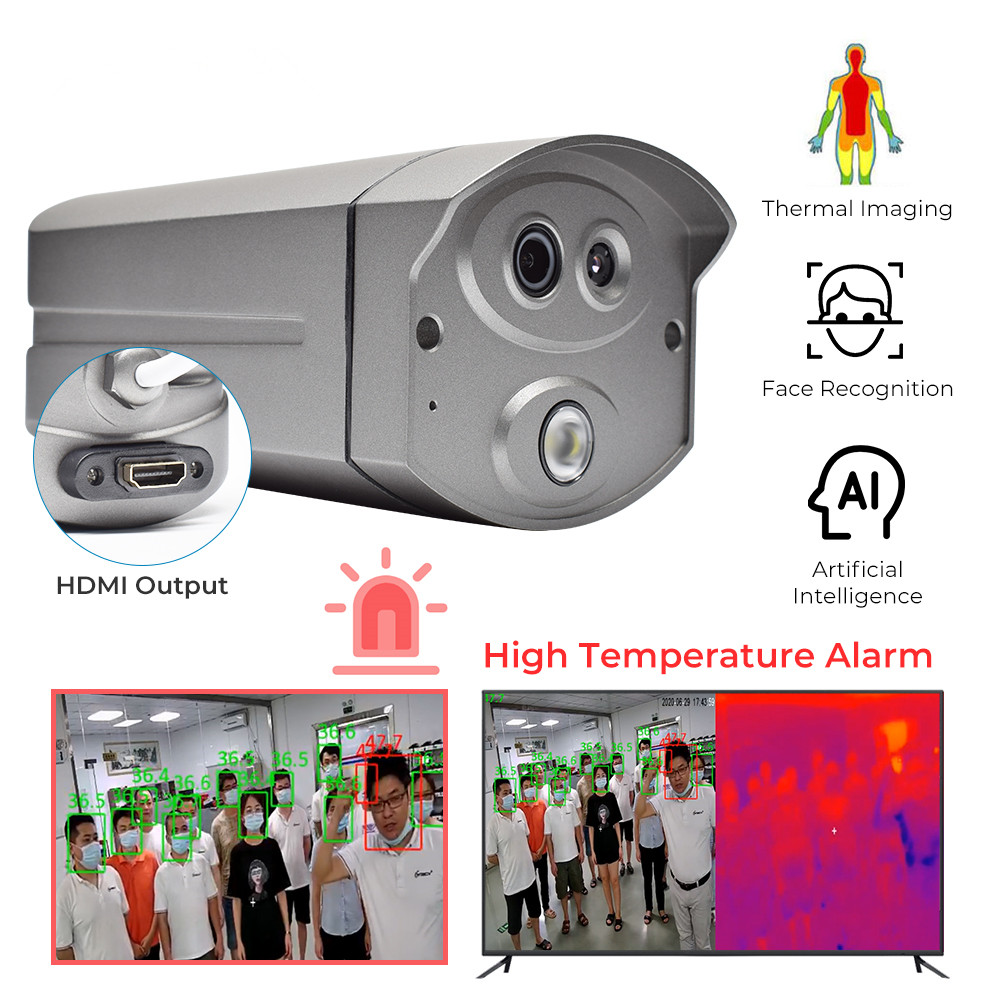

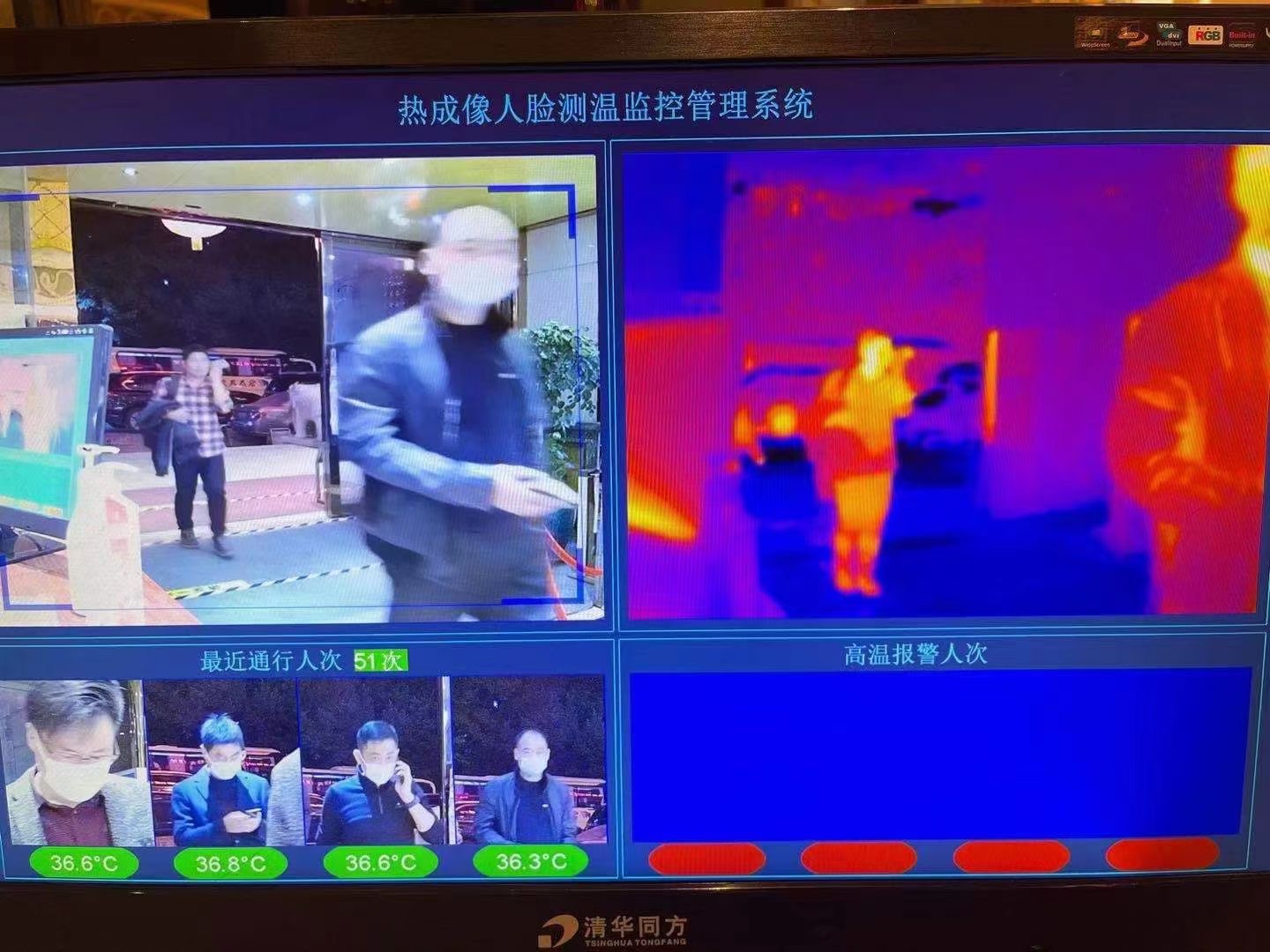

1. The embedded depth learning algorithm supports the function of face capture, which can detect and capture 20-30 faces simultaneously;
2. Support for face tracking and scoring, multi-frame recognition, automatic filtering and output of the optimal face, and reduce repeated capture;
3. Built in 50000 Face database;

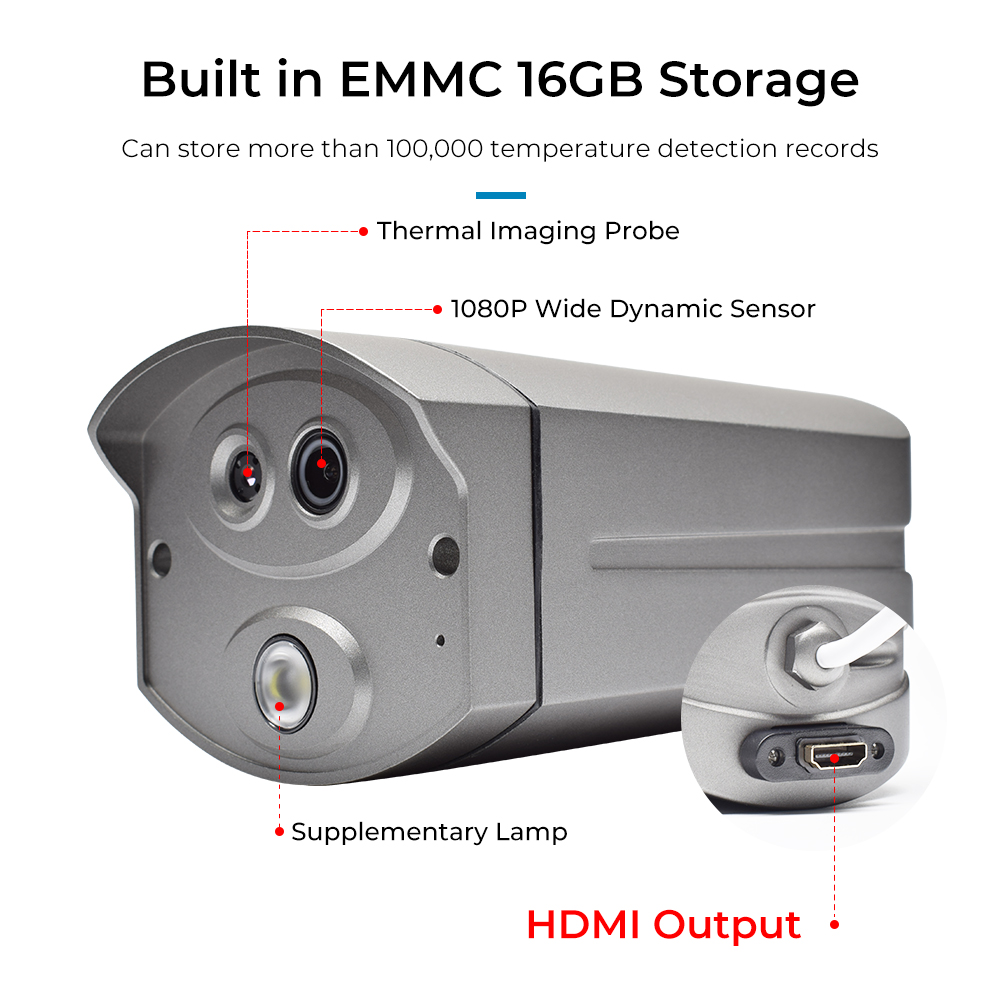

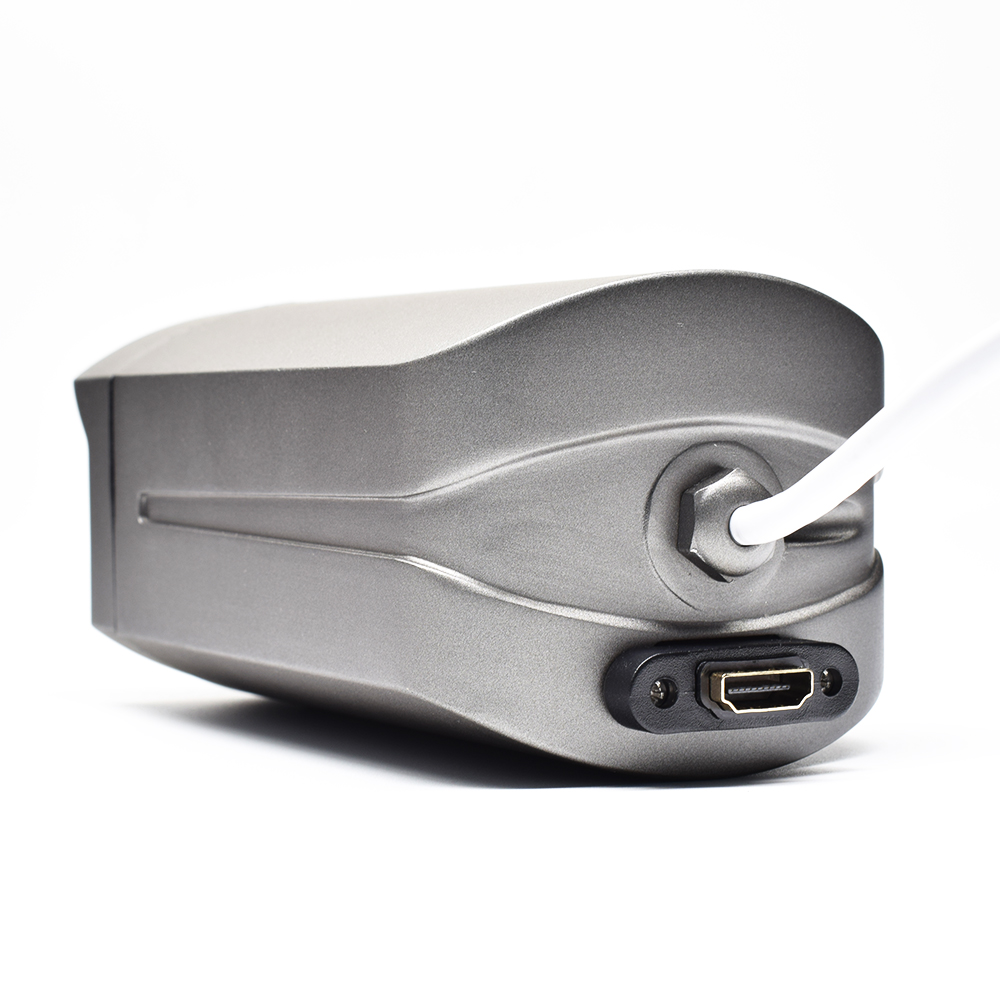

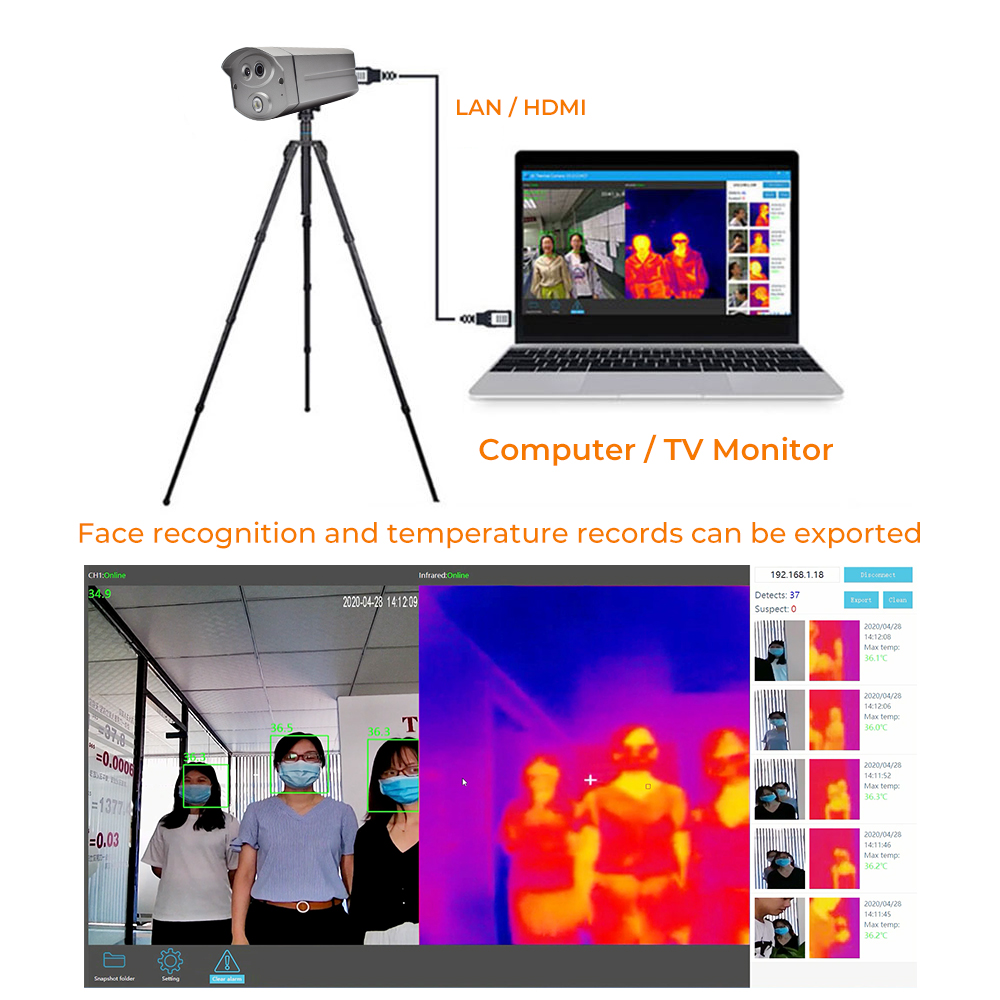

4. HDMI output video and audio
5. Built in EMMC 16GB,Storage more 100000 temperature detect records
6. Support H.265+ /H.265 / H.264 +MJPEG dual coding,Three-code stream
7. Support ONVIF,GB/T28181 and other network protocols, networking easier;
8. A single IP scheme, rich network expansion ability, easy access to various video surveillance platforms
9. Open system, can provide Linux,Windows SDK development package and CGI protocol, rapid secondary development.
Specification :
|
Thermal |
|
|
Image Sensor |
VOx Uncooled Focal Plane Arrays |
|
Resolution |
256×192 |
|
Pixel Interval |
12μm |
|
NETD |
Less than 60 mK (@25°C,F#=1.1) |
|
Aperture |
F1.0 |
|
Field of View |
35° × 27° (H × V) |
|
Optical |
|
|
Image Sensor |
1/2.8" 2.0M Pixel CMOS |
|
Resolution |
1920×1080P |
|
Min. Illumination |
Color: 0.005Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON) |
|
Field of View |
84° × 45° (H × V) |
|
Focal Length |
4mm |
|
Shutter Speed |
1s to 1/100,000s |
|
White Balance |
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp |
|
Day & Night |
ModeIR cut filter with auto switch |
|
WDR |
80 dB |
|
Feature |
|
|
Bi-spectrum Image Fusion |
Fusion view of thermal view and overlaid details of the optical channel |
|
Picture in Picture |
Combines details of thermal and optical image PIP, overlay thermal image on optical image |
|
Smart Function |
|
|
Face snapping |
Built-in deep learning AI algorithm, Supports simultaneous detection of 20-30 faces |
|
Temperature Measurement |
Support global and local temperature |
|
Temperature Range |
From -15°C to +150°C |
|
Temperature Accuracy |
Target temperature 35°C ^ 38°C ±0.3 °C Target temperature 20°C ^ 33°C ±0.6 °C Target temperature 38°C ^ 50°C ±0.6 °C |
|
Network |
|
|
Main Stream |
Thermal: 25fps(1920 × 1080, 1280 × 720) |
|
Sub Stream |
Thermal: 25fps(704 × 576, 352 × 288) |
|
Video Compression |
H.264 (Baseline/Main/High Profile) /MJPEG/H.265 |
|
Audio Compression |
G .711u/G.711a/G.722.1/MP2L2/G.726/PCM |
|
Protocols |
TCP/IP, ONVIF, GB/T 28181, DHCP, RTP, RTSP, PPPoE, UPnP, UDP |
|
API |
ONVIF (Profile S, Profile G, Profile T), SDK |
|
General |
|
|
Web Client Language |
languages English, Chinese |
|
Power |
DC 12V, 0.65A |
|
Work Temperature/Humidity |
From -20°C to 55°C; Humidity: 95% or Less |
|
Protection Level |
IP67 |
|
Dimension |
246 mm × 101 mm × 81 mm (with bracket) |
|
Weight |
Approx. 1.0 kg |
