| Specification | |
| Performance | |
| CPU | Qualcomm2.0 GHz Octa-core |
| RAM+ROM | 3 GB + 32 GB / 4 GB + 64 GB |
| Expansion | Supports up to 128 GB Micro SD card |
| Operating System | Android 11.0GMS |
| Communication | |
| Network | IEEE802.11 a/b/g/n/ac, 2.4 G / 5 G dual-band |
| Network | 2G: 850/900/1800/1900 MHz |
| 3G: B1/B2/B4/B5/B8 | |
| 4G: B1/B2/B3/B4/B5/B7/B8/B20/B38/B39/B40/B2/B4/B12/13/B17/B28A/B | |
| BT | BT v5.1 |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| Physical Characteristics | |
| Dimensions | 202 x 72.5 x 32.0 mm(for standard version) |
| Weight | < 370 g |
| Display | 4-inch high definition display 800*480 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Power | Main battery: Li-ion, rechargeable, removable 6700 mAh |
| Standby: over 680 hours | |
| Expansion Slot | 1 slot for Nano SIM card, 1 slot for SIM or TF card |
| Interfaces | USB 3.1 Type-C, OTG, TypeC headphones supported |
| Key pad | Main keyboard (Optional): 27 keys / 37 keys / 47 keys; Side keys: 2 SCAN keys + 2 volume keys + 1 user-defined key |
| Sensors | Gravity sensor, light sensor, proximity sensor, vibration motor |
| Barcode Scanning (optional) | |
| 2D barcode Scanner | Zebra: SE4710 / SE4750 / SE4750MR/SE 4850/Honeywell: N6603/EX30(Option) |
| HF (optional) | |
| Frequency | 13.56 MHz ISO14443A/B, ISO15693, M1/M3 card |
| NFC (optional) | |
| Frequency | 13.56 MHz ISO14443A/B, ISO15693(Option) |
| UHF RFID (optional) | |
| Engine | CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj Indy R2000 |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
| Power | 1W (30 dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33 dBm, for Latin America, etc.) |
| R/W ranges | Up to 15 m (open outdoors, Impinj MR6 tag) |
| Accessories | |

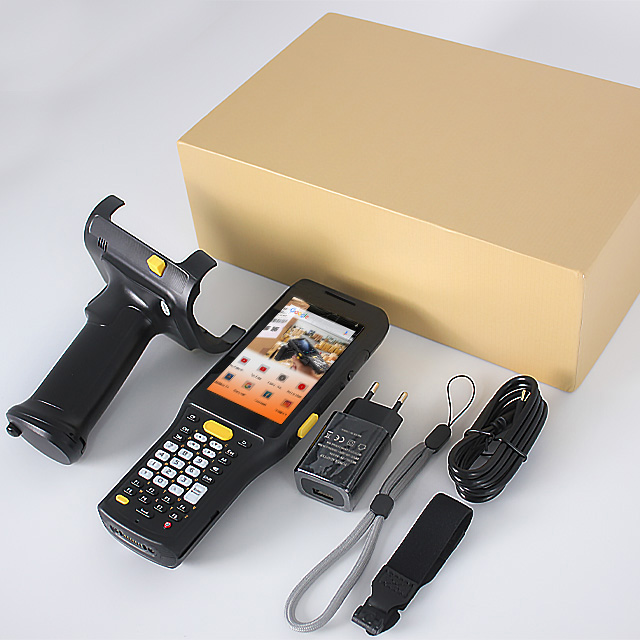

| Standard | AC Adaptor, USB Cable, Lanyard, etc. |

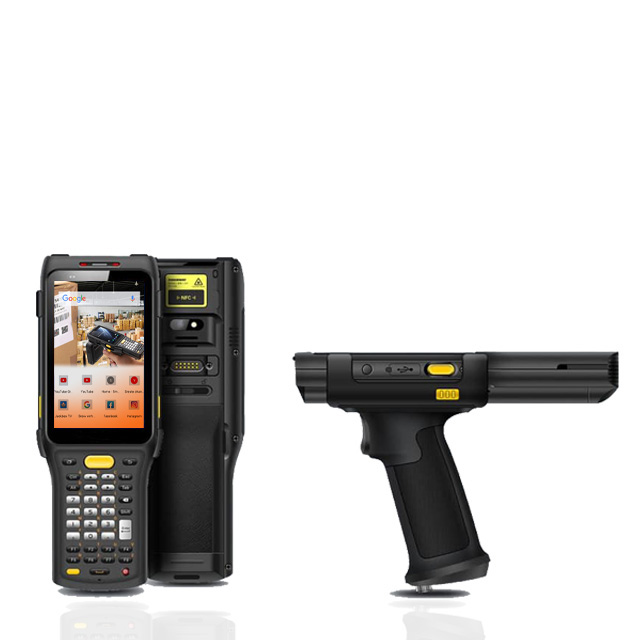

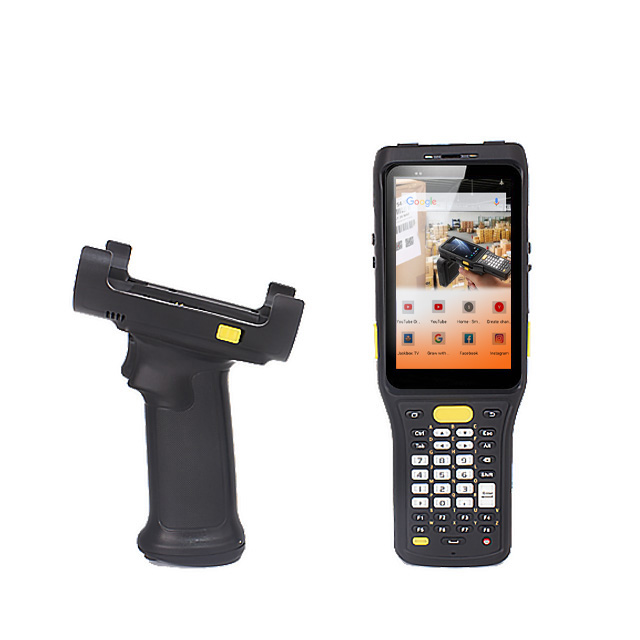

| Optional | Cradle, Holster, etc. |
| * For detailed specification, please check Accessory Guide. | |
Workshop Showing
Q :Are you manufacturer?
A: Yes, we are manufacturers. development centers(R&D center), manufacture center development engineers teams including ID/MD, Software,hardware,Mechanical, project management.Will help clients providing ODM/OEM design, SMT board accessibly, final accessibly.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: Does the handheld PDA can support QR code and 2D barcode?
A: Yes, All handle pda device can selct the below 2D barcode scanner, Zebra:SE4710/SE4750SR/SE4750MR/SE4750DP/SE4850,Honeywell:N6603
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.
Q: Can we get the sample?
A: Yes, We provide the sample for your testing and product quality qualification.Our engineer will offer the technical support during this
Q: How to order and pay?
A: We accept T/T (bank transfer) payment, AlibabaTrade Assurance,Western Union.
Q: What's Your Products Warranty?
A: We Offer 12 Months Warranty after shipment sent.and Options 24moth extension warranty, the cost will be more 10% up
Q: How long it will take for delivery?
A: Normally,lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would be around 5-10 working days. some location maybe a little bit longer.
