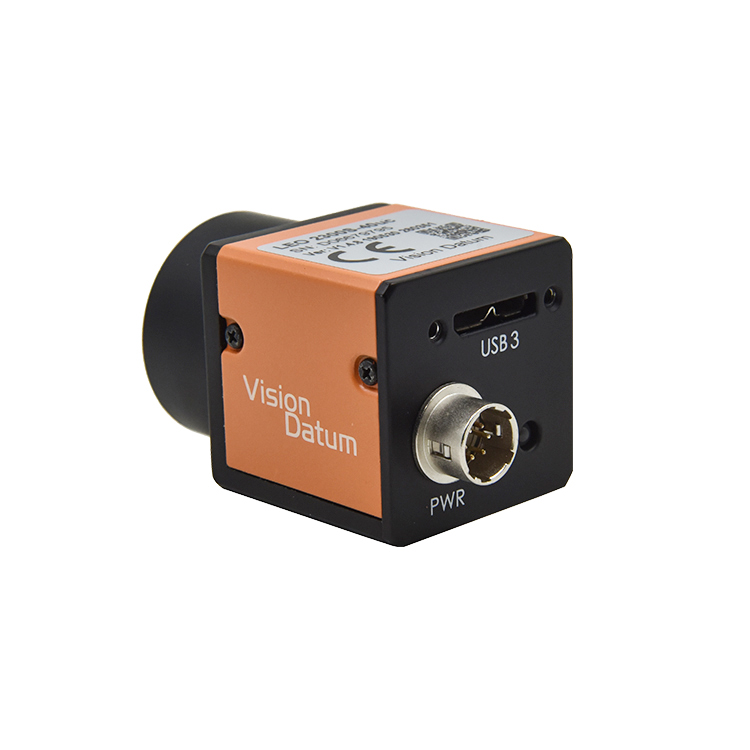

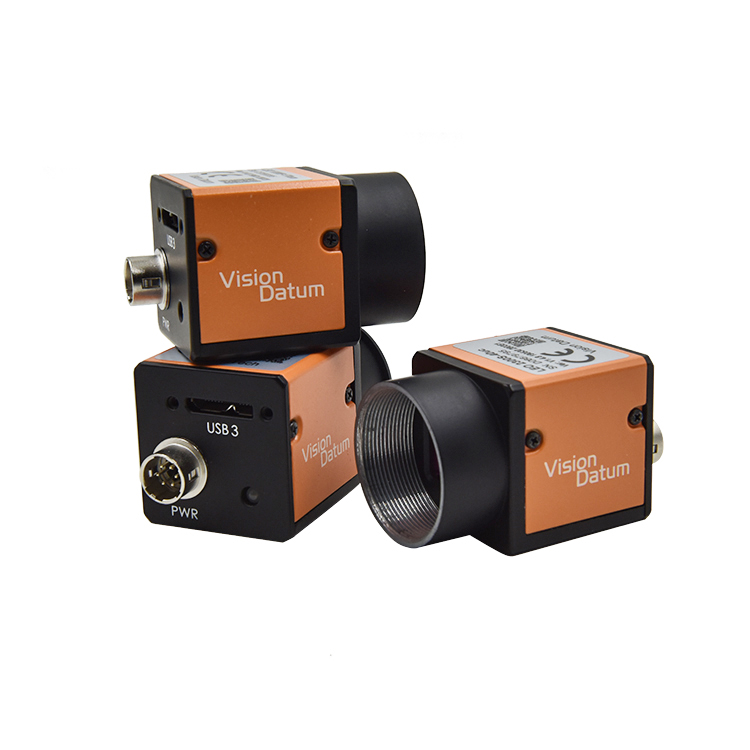

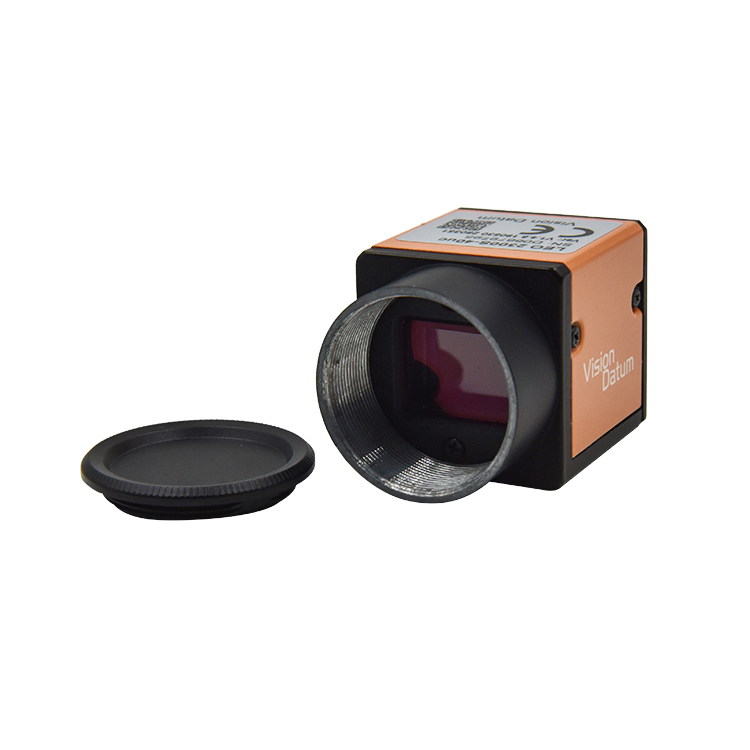

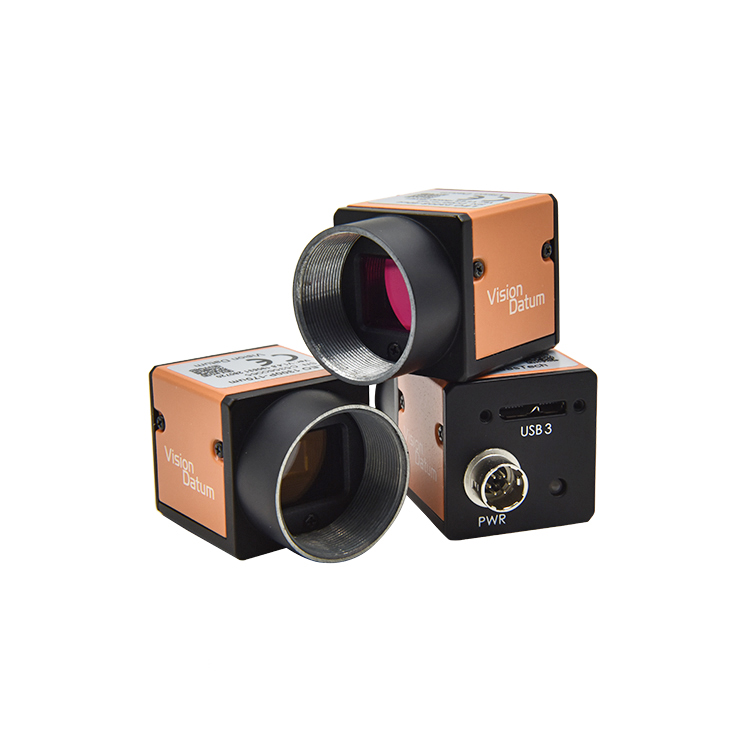

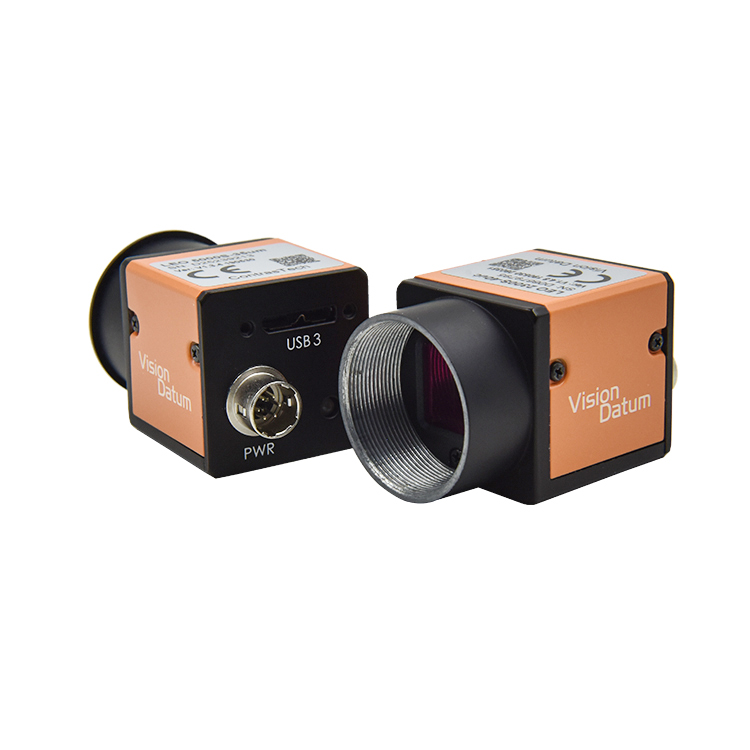

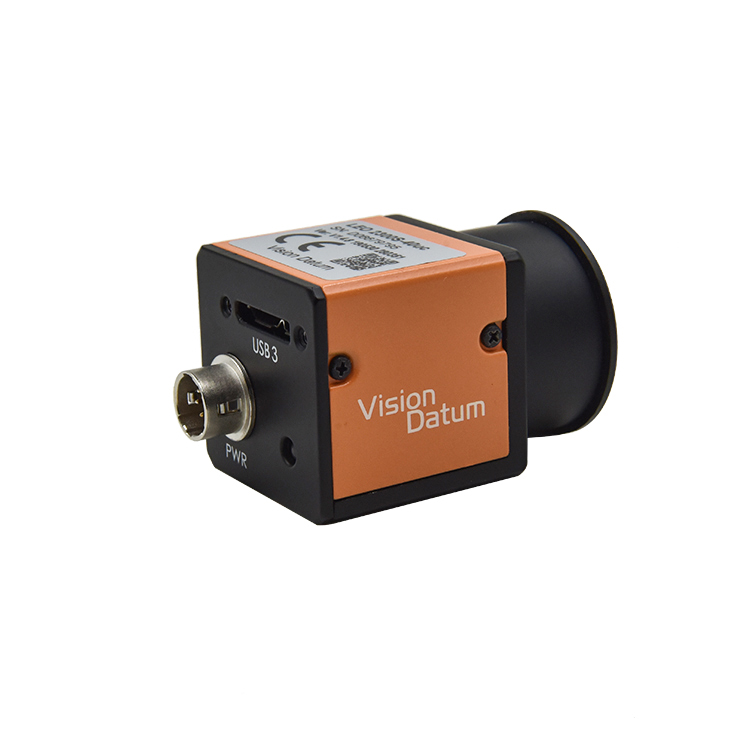

Vision Datum LEO9MS-30um Multispectral Camera High Resolution Global Shutter Industrial Camera USB
Brief Introduction
This series industrial
camera with excellent
performance, its SDK
allows vision system
to become more flexible.
And undergo the strictly
anti-interference test
and quality control test,
they shows high stability
trait to work in various
complex environments.
Main Features
1.Wide range resolution,
from 0.3MP~20MP, ideal
for various applications.
2.With high frame rate up
to 300fps.
3.With wide voltage range
power supply: the POE
power supply and the
DC 6~26V.
4.With 1Gbps bandwidth,
transmission distance
up to 100m.
Product Specifications
|
Products Parameters |
|
|
Model Name |
LEO 9MS-30um |
|
Interface |
USB 3.0 |
|
Color/Mono |
Mono |
|
Dynamic Range |
>73dB |
|
Synchronization |
Via Hardware Trigger, Software Trigger or via Free Run. |
|
Lens Mount |
C-Mount |
|
Temperature |
-30~80℃ (Storage) -30~50℃ (Working) |
Product Dimension & Drawing:42.0 x 29.0 x 29.0 (mm)
Camera Interfaces instruction & GigE PIN Assignment
More Choices
|
Mars Series GigE Area Scan Cameras |
||||
|
Warm Tips: 3.1/4": 1/4 inch. NP: No PoE. |
||||
|
Model Name |
Sensor Size |
Resolution |
Frame Rate |
|
|
1/4" |
640x480 |
300fps |
||
|
1/3.6" |
800x600 |
200fps |
||
|
1/3.6" |
800x600 |
120fps |
||
|
1/3" |
1280x960 |
30fps |
||
|
1/2" |
1280x1024 |
75fps |
||
|
1/2" |
1280x1024 |
75fps |
||
|
1/2" |
1280x1024 |
60fps |
||
|
1/2" |
1280x1024 |
60fps |
||
|
2/3" |
1920x1200 |
50fps |
||
|
2/3" |
1920x1200 |
50fps |
||
|
1/2.8" |
1920x1080 |
50fps |
||
|
1/1.2" |
1920x1200 |
40fps |
||
|
1/1.8" |
2048x1536 |
30fps |
||
|
2/3" |
2448x2048 |
20fps |
||
|
1" |
2592x2048 |
20fps |
||
|
1" |
2592x2048 |
20fps |
||
|
1/1.8" |
3072x2048 |
18fps |
||
|
1/2.3" |
3856x2764 |
10fps |
||
|
1/1.7" |
4000x3000 |
9fps |
||
|
1" |
4096x2160 |
13fps |
||
|
1.1" |
4096x3000 |
9fps |
||
|
1" |
5472x3468 |
5fps |
||
Applications & Cases
Major Applications:
Defect Inspection; SMT; Vision Localization; VR/AR;
Dimension Measurement; Barcode Reading; Logistic Industry.
Case1: Piezometer Value Inspection.
Case 2: Food Integrity Inspection.
