Name

Model

JT-043S

Name

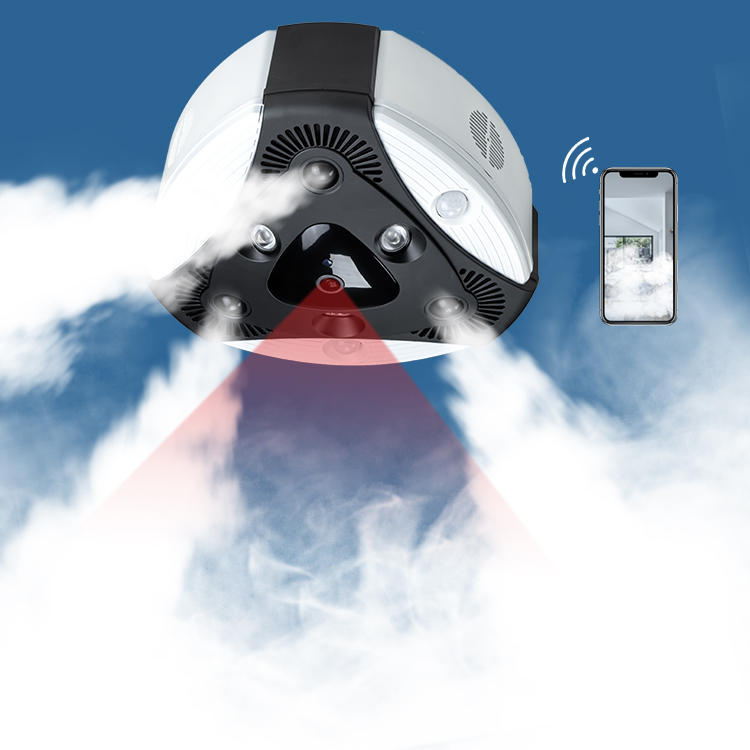

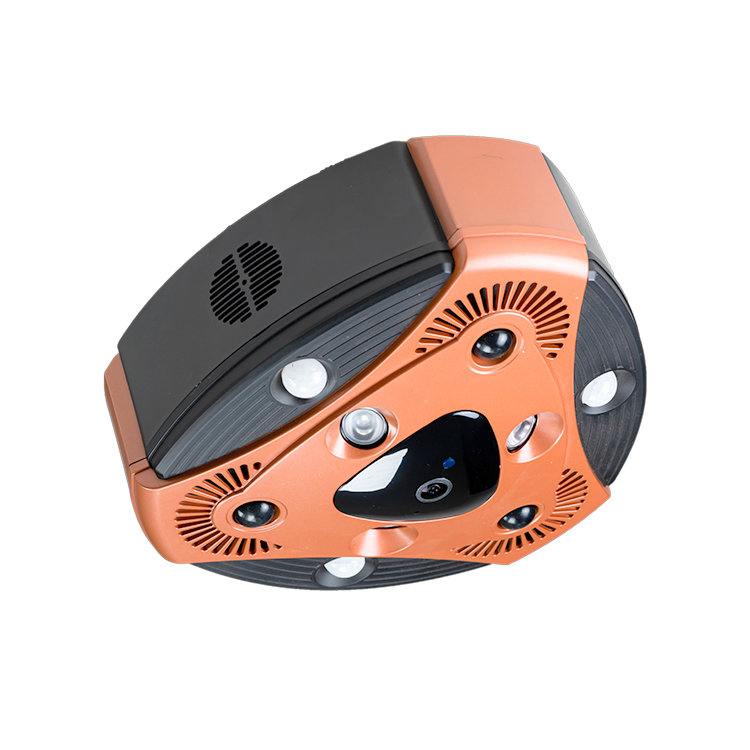

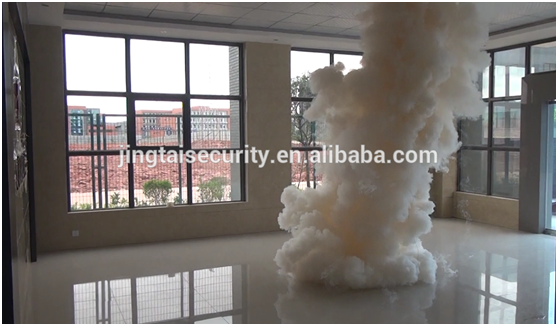

Smart smoke Generator

Camera

Image Sensor

1/2.8” Progressive scan CMOS

Min. Illumination

0.02Lux@(F2.0,AGC ON )0Lux with IR

Shutter time

1/3 s to 1/100,000 s

Lens

4mm@ F2.2

Lens mount

M12 Support 2.4mm, 4mm, 6mm,8mm Lens

Day&Night

ICR Infrared filter type with auto switch

Digital noise reduction

3D DNR

Wide Dynamic Range

Digital WDR

Compression on Standard

Motion Detection

On /Off Sensitivity adjustment

Video Compression

H.264

H.264 code profile

Main profile

Video compression encoding rate

Ultra clear, HD, Balanced process


Max. Image Resolution

1920x1080@30fps

720x480@30fps

360x240@30fps

Capturing 2048*1536 JPG

Support mainstream and sub stream separately

Frame Rate

50 Hz:25 fps (1280 × 960), 25 fps (1280 x 720)

Image Settings

Saturation,Brightness, Contrast adjustable by client software or web browser

Backlight compensation

Support

Network

Smart Alarm

Motion detection

Key configuration

Find IP via P2P connection

General Function

Anti-Flicker, heartbeat,mirror, password protection

Interface

Storage Interface

Micro SD CARD MAX 128G

Power Interface

Micro USB interface

Communication Interface

1 RJ45, 10/100M

Wi-Fi specifications

Wireless Standards

IEEE802.11b, 802.11g

Frequency Range

2.1GHHZ~2.4835GHZ

Channel Band width

Support 20MHZ

Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate

11b 11Mbps 11g 54Mbps

Alarm

RF alarm frequency

868.4MHZEU, 908.4MHZ US, 921.4MHZANZ, 869.2 MHZ RU

RF Distance

Indoor50m, outdoor100m

Support Alarm Senso

Magnetic contacts and PIR sensors

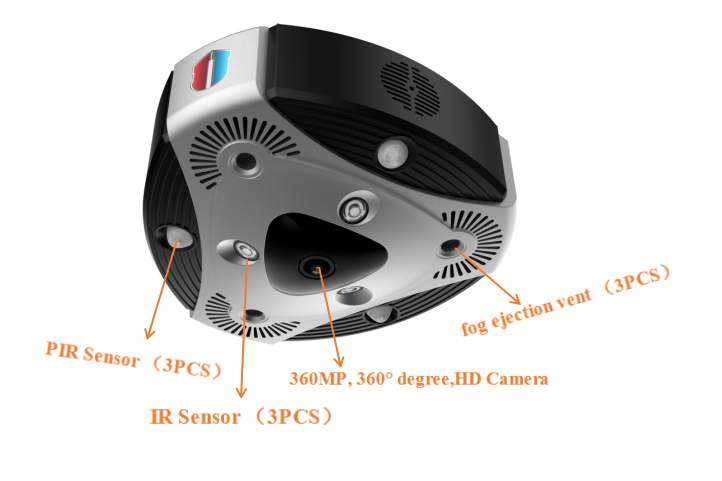

PIR*3PCS

Built-in 3PCS PIR sensor layout

General

Operating Conditions

Less than90% RH/-10° C ~ +45° C

Power Supply

12V5A

IR Range

10 m to 15 m

Dimensions (mm)

230*230*60mm
